Channel Balances

Contractor

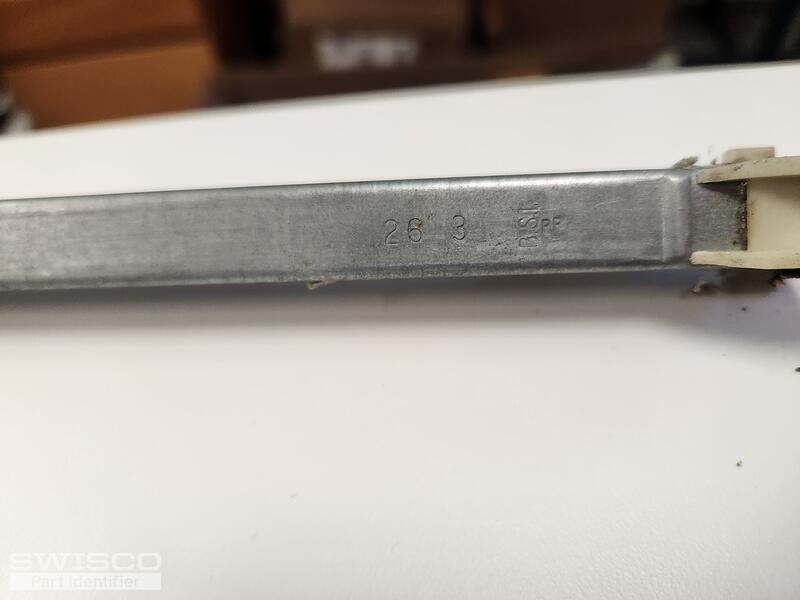

2 channel balances 1st- stamp is 16 1 and is 17-17.5in2nd- stamp 28 3 and is 27-27.5 in
5 user uploaded images
4 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hello there!

Thanks for reaching out to us. Based on these photos, it looks like you have the Series 380 with a 1" deep shoe or the Series 385 with a 1-3/32" deep shoe. You'll have to measure as shown below to determine the best match.

The 16-1 balance should have a 17" long metal channel and the 26-3 balance should have a 27" long metal channel, however. Can you double-check that for us? Note that you'll want to measure only the metal channel; make sure to not include the nylon fittings in this measurement.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.

Contractor

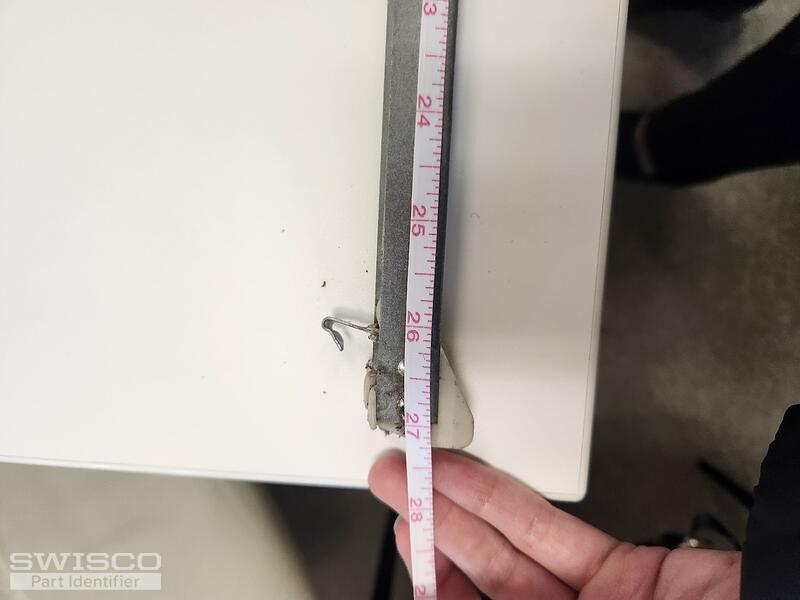

The 16-1 is 17in for the metal, the 26-3 is 27 for the metal. Both have 1in plastic shoes
Emily
Emily from SWISCO
SWISCO
Expert

Thank you for confirming. Since the shoe is 1" deep, see the S380-17 with the 1610 stamp option and the S380-27 with the 2630 stamp option.
