Channel Balances Model 26 4 LQ CALDWELL

Quick Learner from San Jose
Sep 24, 2011 3:54 pm
Brandless window, so not sure which model to pick.

Length: 27"
Stamp: 26 4 LQ CALDWELL

Thanks.

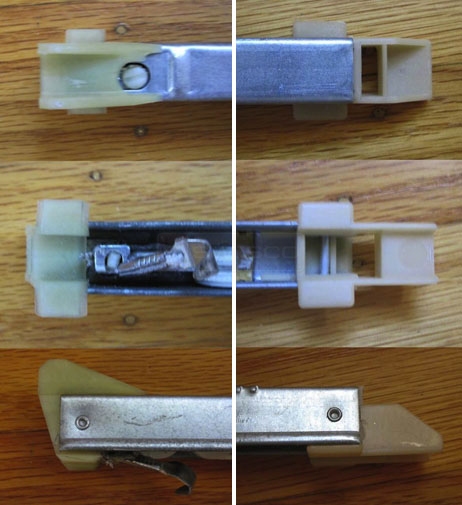

User submitted photos of their window balance attachments.
6 Replies
Casey
Casey from SWISCO
Sep 26, 2011 3:35 pm
SWISCO
EXPERT
Good Afternoon,

Great pictures! It looks like you have our S385 replacement balance series. Choose the S385-27 with option 2640.
Quick Learner from San Jose
Sep 26, 2011 10:12 pm
Thank you for the answer. My sash is barely over 3 pounds, can you confirm the 2640 option ? I would have pick 2610 since I read in another thread the options were all about weight.

Thanks again.
Tom
Tom from SWISCO
Sep 27, 2011 2:07 pm
SWISCO
EXPERT
Are you sure your window weighs 3 lbs.? Did you remove it from the frame and place it on a scale?

The 2640 stamp option supports a weight range of approximately 19 through 26 lbs.
Quick Learner from San JOse
Sep 27, 2011 5:18 pm
Yes, I did remove it and put it on a scale: 3.2 lbs
It is very small and the frame is made of plastic.
Paul
Paul from SWISCO
Sep 28, 2011 9:42 am
SWISCO
EXPERT
We recommend the stamp 2610, which will support a window weight range of approximately 5 through 9 lbs.
Quick Learner from San Jose
Sep 28, 2011 10:14 pm
Thank you.
