Alcan Windows

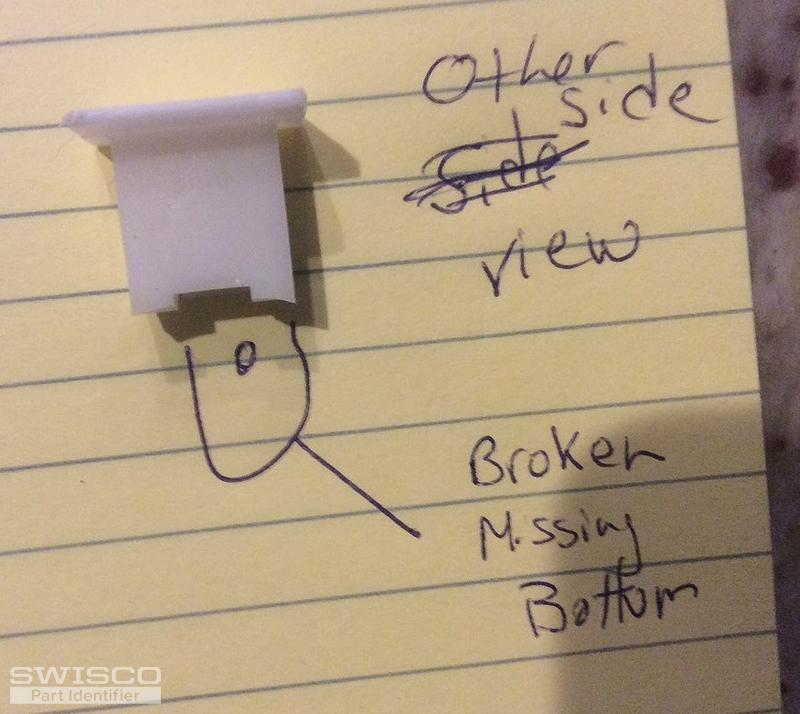

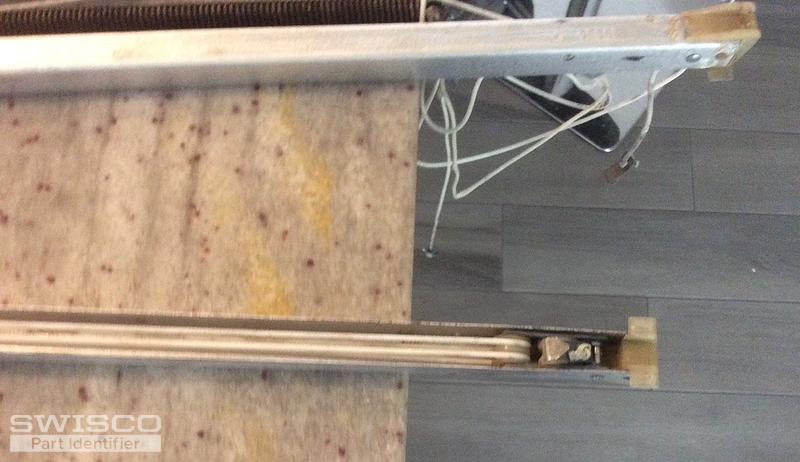

1. 37inch long w/o top stop or bottom shoe - channel measures 1/2 inch. Plastic shoe measures 7/8 inch front to back( Marking on back 3630)
2. 37 inch long w/o top stop or bottom shoe -channel measure 1/2inch Plastic shoe 7/8 inch front Tom back (Marking on back 3630)
Need help on identifying and order the correct replacement balances and hardware for top and bottom and the stop for the window frame. Thanks
Thanks for posting. It appears you have two 37" balances stamped 3630. If the bottom nylon fitting is 7/8" deep, then you need custom balances with the 15-029 7/8" shoe attached. I've sent you an email with a custom link to order a pair of these balances. Let me know if you have any further questions.
Could you obtain the exact weight of the window sash that uses these 3635 stamped balances? See which weight range it falls into: 18 through 23 lbs, which means we can again use a stamp option of 3630; or 23 through 30 lbs, which will instead suggest we use the 3640.
Thanks for getting back to me. I just sent a second email with a custom link to order (2) of these balances but stamped 3640. This stamp option will cover a window that weighs exactly 30 lbs. Let me know if you have any other questions. For your Top Sash Guide, see our 18-161.
