Channel Balances & Top Sash Guides

A handy person from Jacksonville Florida says:

29 6 HS Caldwell and TOP SASH GUIDEs

Thank you

Greg

Thumbnail of the uploaded file named 0A3733D0-FC6C-4057-A0C8-930FC8B11C95.jpeg
Thumbnail of the uploaded file named DB1FD885-9A9E-46F7-8157-312F5F41ADC4.jpeg
Profile picture of Bob
Bob from SWISCO responded:

Thanks for writing in. See our S380-30 or S385-30. These look similar to your balance; the only chief difference between these two possible replacements is the depth of the bottom nylon fitting, or what we call the shoe. The shoe depth can be thought of as the 'heel-to-toe' measurement. Compare both your old hardware to see what matches best. Based on your stamp code, you will need a stamp option of 2960.

Your Top Sash Guide is hard to determine from these photos. Is there an undamaged version you can show us? Closer pictures of the front and side of the guide, like mugshot pictures essentially, would be most helpful. From there, we'll do our best to narrow down what you need.

A handy person from St. John's Florida says:

Hey Rob and Kaycee

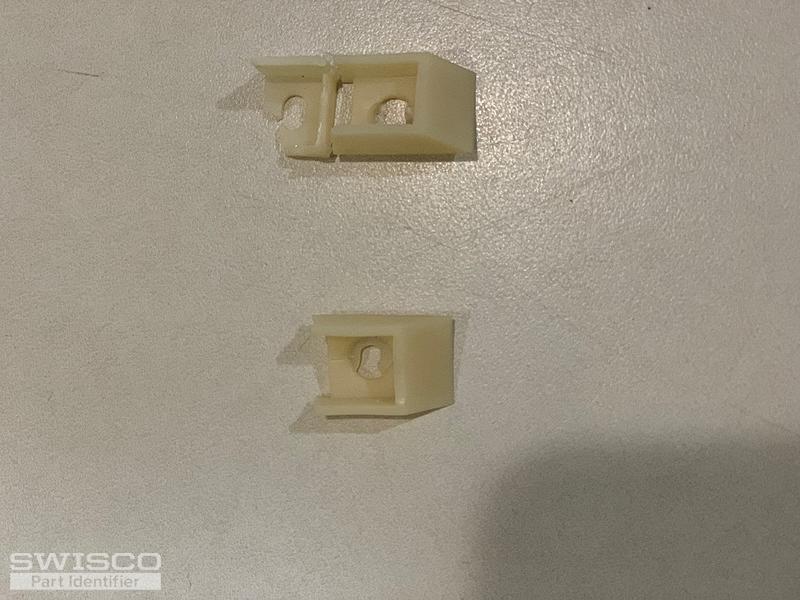

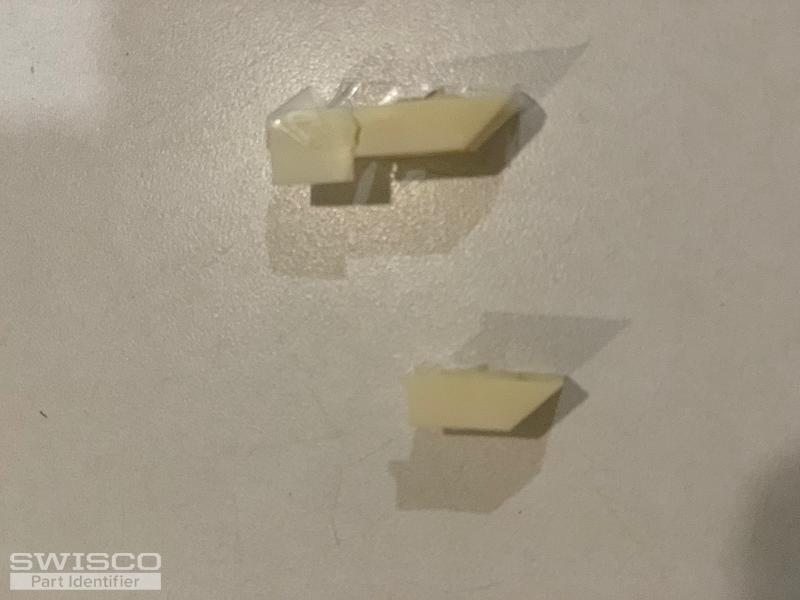

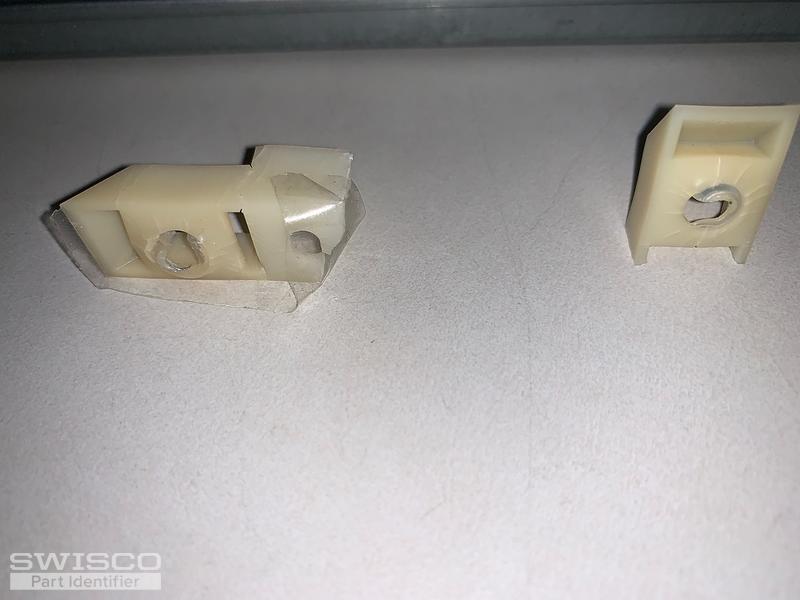

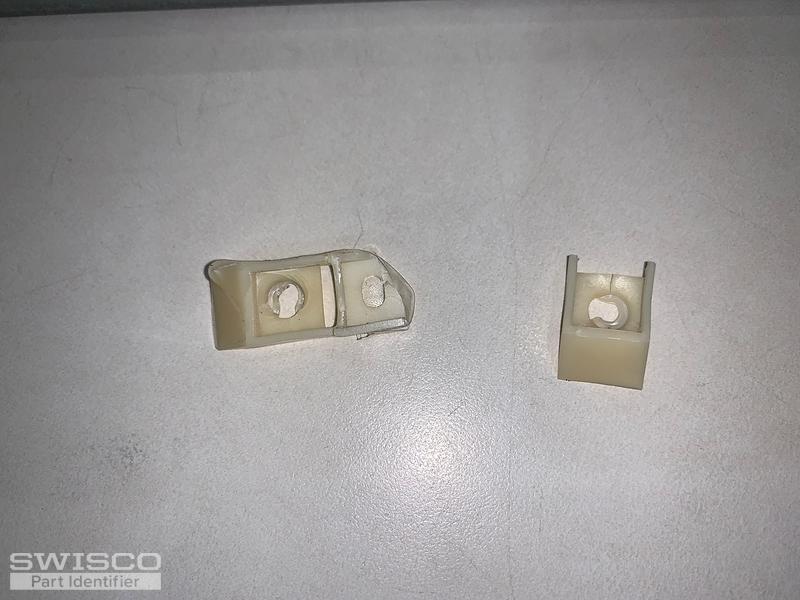

here are the other photos you requested! Hopefully my photography worked.

I'd like to purchase 8 of the Balances & Top Sash Guides.

Thank you very much.

From a former Hainesport Nj resident.

Greg

Thumbnail of the uploaded file named 0CFD09B4-02E7-4C57-AF23-DE08AB96E731.jpeg
Thumbnail of the uploaded file named C1FDFD32-B918-466E-B0F2-34DFDE4F1FB6.jpeg
Thumbnail of the uploaded file named 2DFDEE44-0039-4212-B26E-870F9E1FD842.jpeg
Thumbnail of the uploaded file named 327F03C8-6280-4ABE-8516-5CB8606FB4AE.jpeg
Thumbnail of the uploaded file named C390A39E-BE5A-4EA2-A6A6-5297838E1FD9.jpeg
Profile picture of Bob
Bob from SWISCO responded:

Hi Greg. These Top Sash Guides might be our 18-166 or 18-009; you'll need to compare undamaged versions to your hardware to see what matches best. All orders can be placed through our online store. When you find a part you want, simply click "Add to Cart," and then click "Checkout" at the top right hand corner of the screen. Don't forget to set the quantity. Let me know if you have any other questions.
