Channel Balances identification
Quick Learner from Dunwoody
May 5, 2017 9:13 am

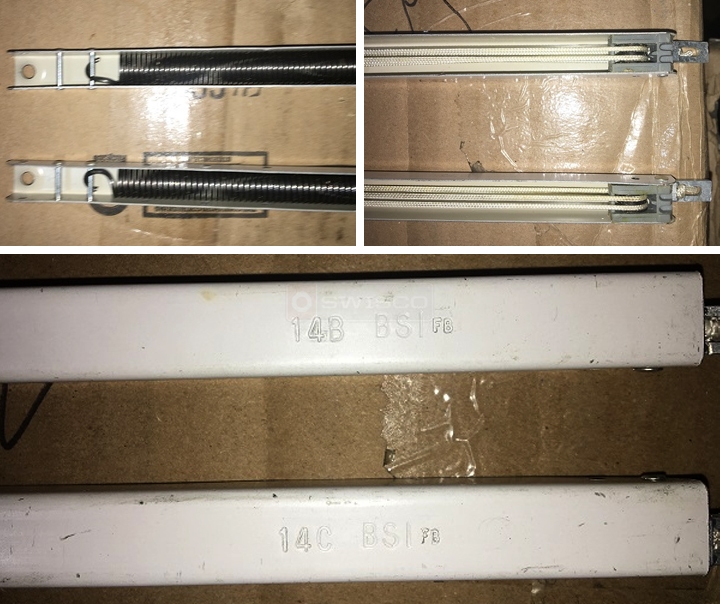

I have attached pictures of balances I need. Can you make recommendations based on these pictures?

5 Replies
Quick Learner from Dunwoody
May 5, 2017 9:14 am

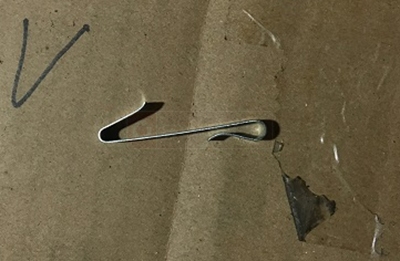

one more photo

Tom from SWISCO
May 10, 2017 9:24 am
We should be able to replace this, however it will need to be custom made. I'm thinking our S770-14 with the top screw plug removed and replaced with a rivet, so that you can install an S clip at the top like our 19-029 or 19-030 (sold separately).
Before we begin, I had a few questions. First, it looks like you have two different stamps: 14B and 14C. Are these from two different windows? If so, that will make things pretty cut and dry. How many of each did you need?
If these are both in the same window, however, then it'll be a little bit more complicated. The balances for one sash really ought to have the same stamp. If these balances work together for the same sash, I will need to know how heavy that sash is. You can weigh it on any common bathroom scale.
Before we begin, I had a few questions. First, it looks like you have two different stamps: 14B and 14C. Are these from two different windows? If so, that will make things pretty cut and dry. How many of each did you need?
If these are both in the same window, however, then it'll be a little bit more complicated. The balances for one sash really ought to have the same stamp. If these balances work together for the same sash, I will need to know how heavy that sash is. You can weigh it on any common bathroom scale.
Quick Learner from Dunwoody GA
May 10, 2017 10:00 am
Yes they are from two different windows. I need 3 pairs [6] of the 14C and 3 pairs [6] of the 14B
How do I place order for these
Thanks Alvin
How do I place order for these
Thanks Alvin
Tom from SWISCO
May 11, 2017 10:55 am
Perfect! Nice and easy. I'll email you two custom order links for 6 of each. These will include price quotes. You can use these links to add the special balances to your cart as if they were any other normal item.
