Balances and Pins located on bottom of lower sash

Contractor from Hiram, GA

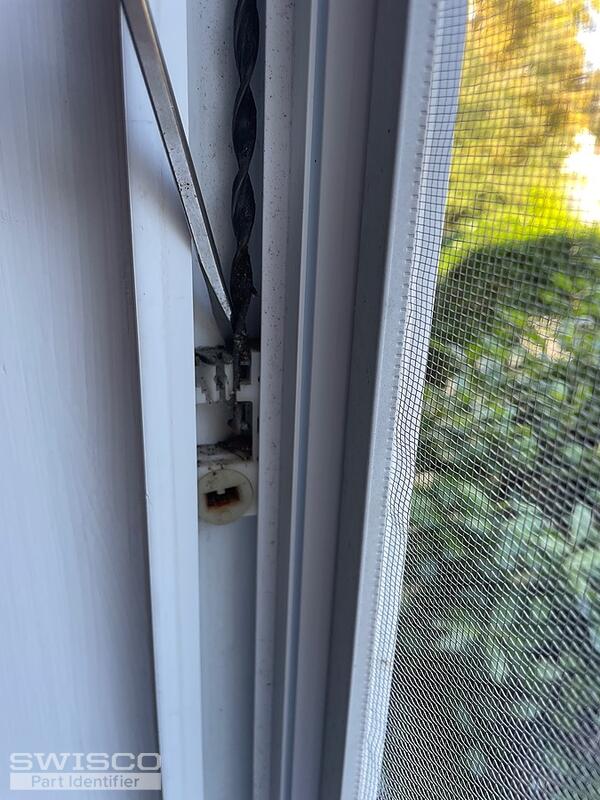

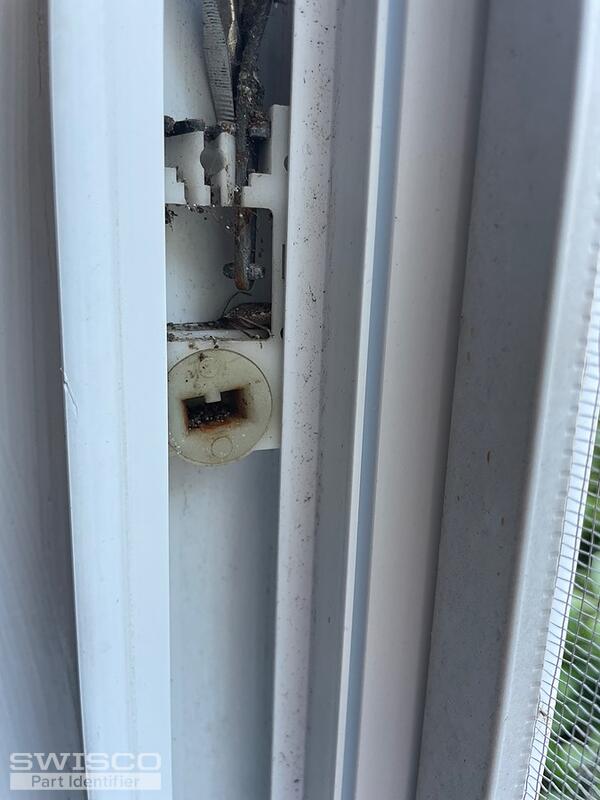

Good morning. I need help identifying both the channel balances and the sash pins that are located on the bottom part of the lower sash that insert into channel balances. I'm not sure if the pictures will suffice seeing that the original pins have been broken due to rusting. Please let me know if there is any other additional information that you may need to help determine what exact part we will need. Thank you in advance.
5 user uploaded images
2 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

It looks like your window uses spiral balances similar to the S900 or S600. The determining factor would be if the diameter of the housing tube measures 3/8" or 5/8" in diameter.

We may be able to supply your pivot bars as well but we would need to see an intact version removed from an identical window to compare to our inventory. See the videos related on this page to help you through the process. Thank you!
