Channel Balances and Top Sash Guides needed
Quick Learner from Florida
Mar 31, 2017 7:23 pm

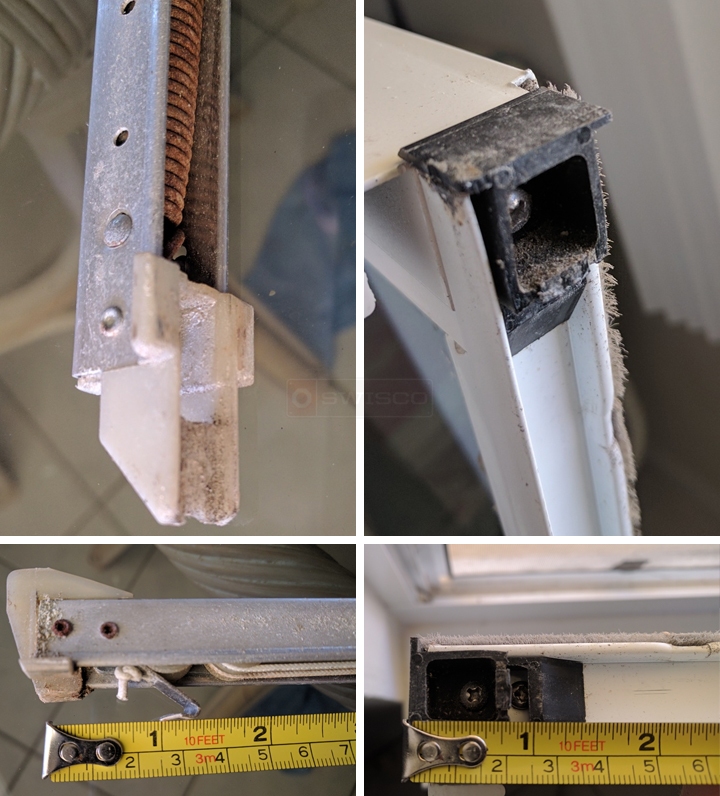

Attached are pics of the channel balances and top guides that I need. I think I have S-385, since the S-380 shoe looks a tad smaller. Can you confirm? Are there any other option than replacing with a similar channel balance?
Also need the sash guide shown. I'm not sure on the number for that one. Sort of looks like 900-16080.
Thanks.
Mark
Also need the sash guide shown. I'm not sure on the number for that one. Sort of looks like 900-16080.
Thanks.
Mark
4 Replies
Tom from SWISCO
Apr 5, 2017 9:13 am
I'm afraid I can't confirm if you have the Series 385 over the Series 380 without knowing the exact size of your shoe. If your bottom shoe's depth is 1-3/32", though, then the Series 385 would be the best match.
I'm also not sure about that top sash guide. Could you remove it from the window and show us a picture of it from the front and one from the side? Can you also give us your measurements?
I'm also not sure about that top sash guide. Could you remove it from the window and show us a picture of it from the front and one from the side? Can you also give us your measurements?
Quick Learner from Palm Coast Florida
Aug 13, 2017 3:55 pm
Tom, great advice on the bottom shoe. My shoe is 1", so I guess I'm looking at the Series S-380-25 with the 2440 option. Thanks for that.

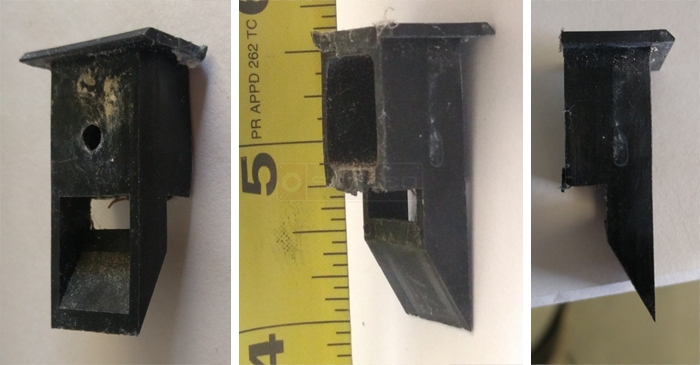

OK, now on to the sash guides. Overall length is 1 9/16" along the longest side from top to bottom of the peak. Overall length of the other side is 7/8". With (Excluding the 'flange' on the very top) is 9/16". I attached a number of pictures.
OK, now on to the sash guides. Overall length is 1 9/16" along the longest side from top to bottom of the peak. Overall length of the other side is 7/8". With (Excluding the 'flange' on the very top) is 9/16". I attached a number of pictures.
Paul from SWISCO
Aug 18, 2017 10:05 am
For this top sash guide, I would recommend our 18-172. Carefully go over our dimensions and pictures and see what you think.
