Channel Balances and plastic component

Question

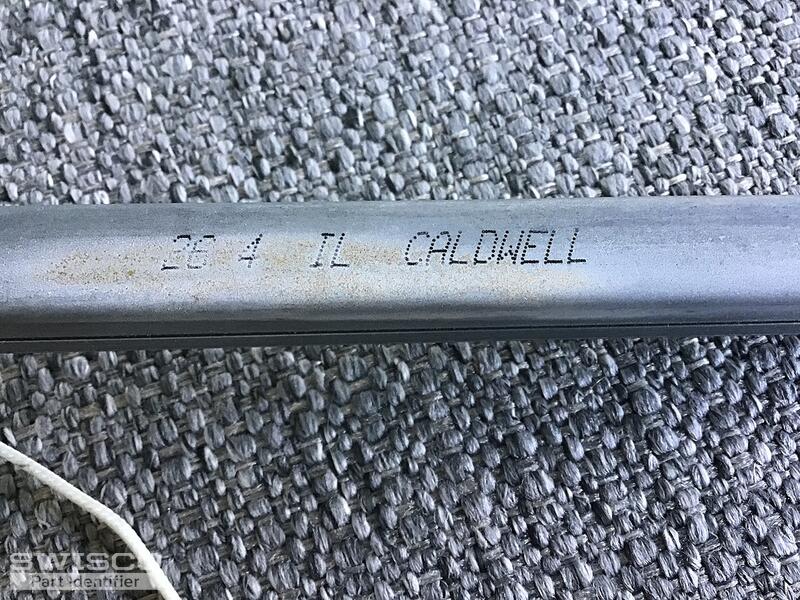

I need help to determine what length channel balance and plastic piece that goes in the top of the window so we order correct size.

Casey · Accepted Answer

Hello,

With this combination of attachments, you could have either the S380-27 or S385-27 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2640 spring strength options for your replacement balances.

Comparison of the S378, S380 and S385 balance shoes.

We also offer the 18-008 top sash guides. Take a look and compare the dimensions below to yours. Thank you and let us know if you have any other questions or concerns.

Detail of 18-008

Alternate view of 18-008
