Channel Balances

Home Owner from VA
Aug 22, 2021 3:25 pm
Hi I need to order replacement channel balances. I've attached photos. The window weights 7.8kg. The metal part of the balance is 635mm long, and 15mm wide and deep.

I need to order 7 pairs of these.

Thanks

John

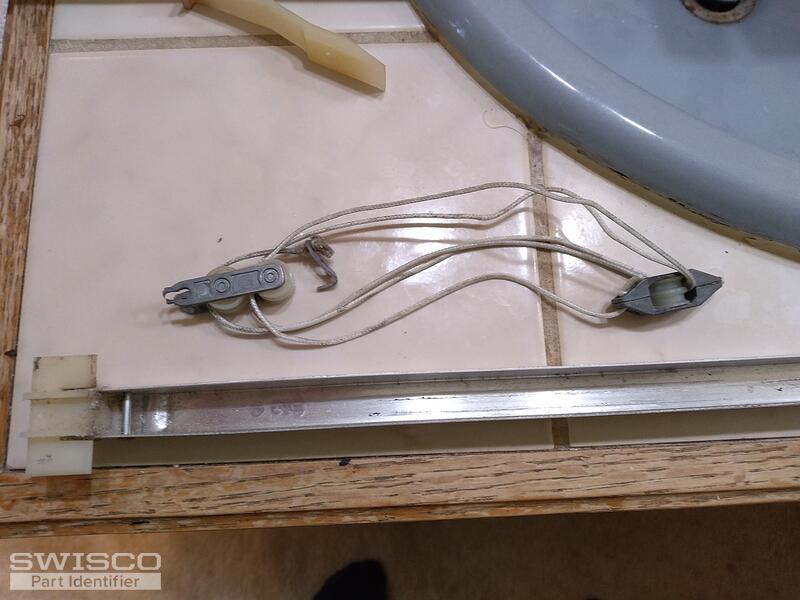

20210821_113549 20210821_113513 20210821_113520 20210821_113541
4 user uploaded images
3 Replies
Paul
Paul from SWISCO
Aug 27, 2021 12:50 pm
SWISCO
EXPERT

Hello,

You only showed the rear of the balance channel and not the front side, but we were able to discern the manufacturer of your window. You have a Weathervane window that dissolved in 2001. The top nylon sash guide has been replaced with a metal bracket, our 18-065

This isn't a stock balance so this will have to be a custom order. Your custom 25" channel balance will need the 19-038 top and 15-193 bottom fitting attached. The spring weight for a 17.2 lbs. sash will be (2430). Can you confirm the stamp on your metal channel?

I just want to confirm the exact quantity of balances that you'll need before we proceed. You said you needed 7 pairs, so that would be a total of 14 balances. Can you confirm this for us?

Thank you!

Home Owner from VA
Oct 5, 2021 7:32 pm

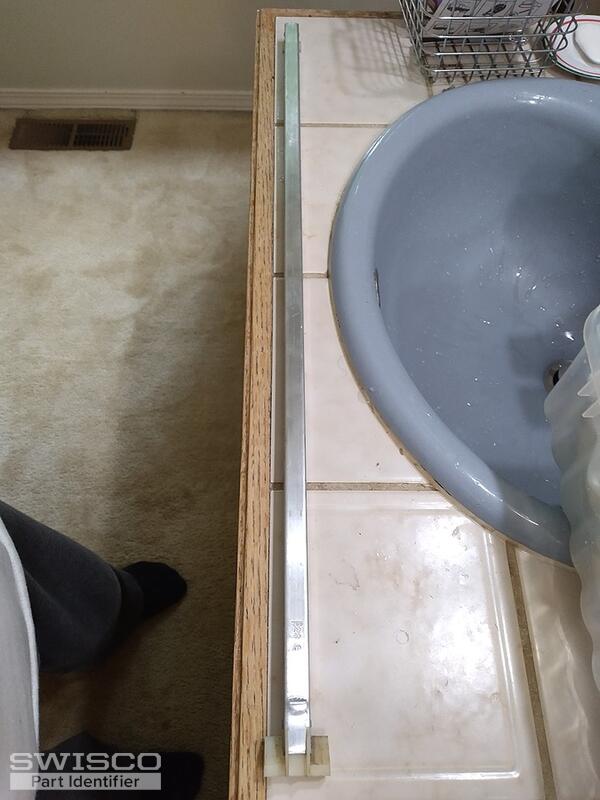

Sorry for the delayed response - I lost the link for this page. I can confirm that I need 7 pairs - so 14 balances. I've added a photo for the other side of the balance. The stamp shows B.S.I. 24 C

Can you tell me what the estimated cost is for the custom order?

Thanks

John
20210905_113809
1 user uploaded images
Emily
Emily from SWISCO
Oct 6, 2021 9:32 am
SWISCO
EXPERT

Thanks so much for confirming that for us, John! I've just emailed you a custom balance purchase link and price quote for (14) of these balances that you can use to place an order on our site. Just don't forget to add the 18-065 top sash guide to your cart! If you have any questions just let us know.
