From a Lawson non-tilt window. Stamped on the part: 2840 BSI. It is a 1/2" channel.
The metal portion of the guide is exactly 29", not including the plastic end caps.
Thank you for any assistance you may be able to provide in identifying the correct replacement part.
Channel Guide ID
Quick Learner
Jan 6, 2019 3:35 pm
4 Replies
Tom from SWISCO
Jan 9, 2019 12:16 pm
I'm afraid I cannot determine what you have from this information. Series is determined by the size and style of the plastic end caps you mentioned. We will need to see a clear photo of each in order to match it up to the appropriate balance on our site.
Quick Learner from Florida
Jan 12, 2019 10:49 am

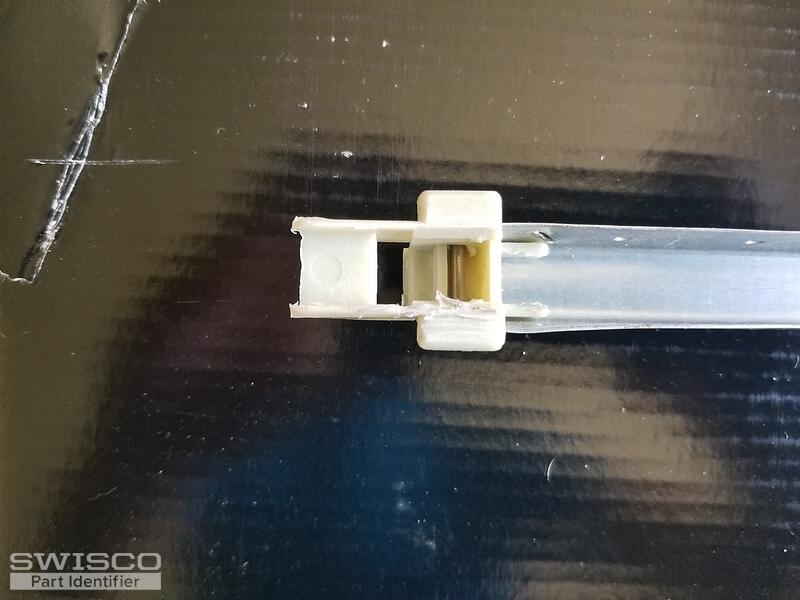

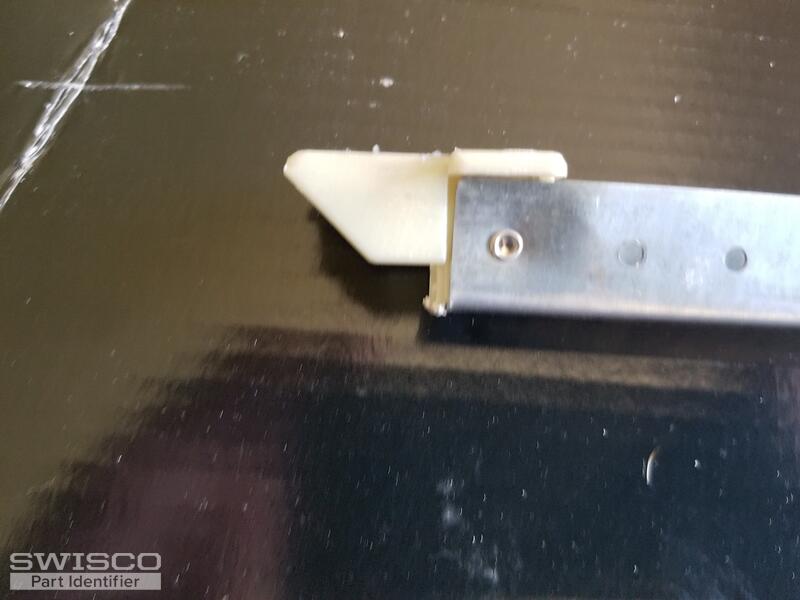

Thank you for your response. I've attached photos of both plastic end caps.
5 user uploaded images
Tom from SWISCO
Jan 14, 2019 10:24 am
Thanks for getting back to us. This is perfect, just what we needed to see. Take a look at our S385-29 channel balance with a 2840 stamp. I'm pretty sure this would be a good match.
