Channel ID

Quick Learner from Encinitas, CA

Nov 25, 2020 8:02 pm

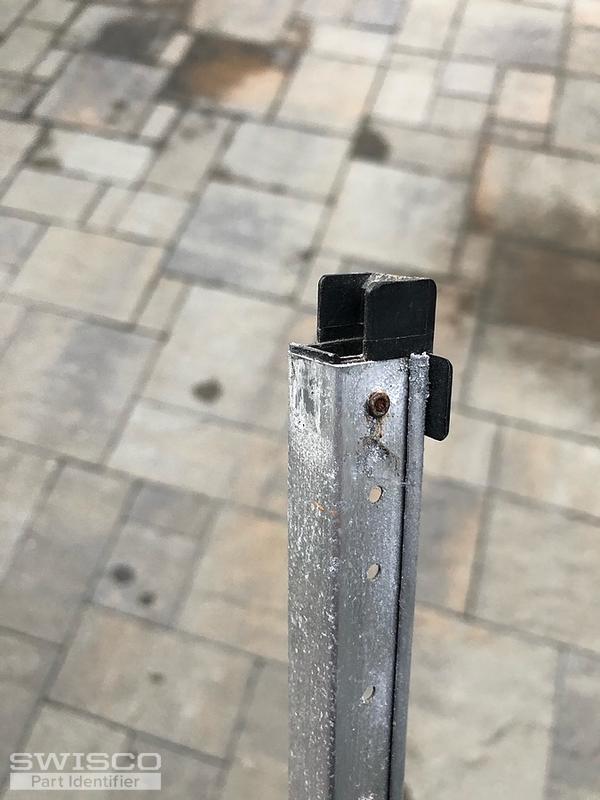

Channel is 16" long.

No. on Channel is 1540BSI BL

Sorry, I took out before finding that I needed to take installed picture. Not at home anymore.

3 user uploaded images

4 Replies

Bob from SWISCO

Dec 1, 2020 8:12 am

No worries, no installed picture is really necessary for these balances; we'd much rather see them out of the window like you're showing. See our S380-16 or S385-16. The only difference between these two balances is the bottom shoe depth, or heel-to-toe measurement, so compare both with your old hardware to determine what you need. For a new stamp option, select 1540.

Quick Learner from Encinitas, CA

Dec 1, 2020 10:00 am

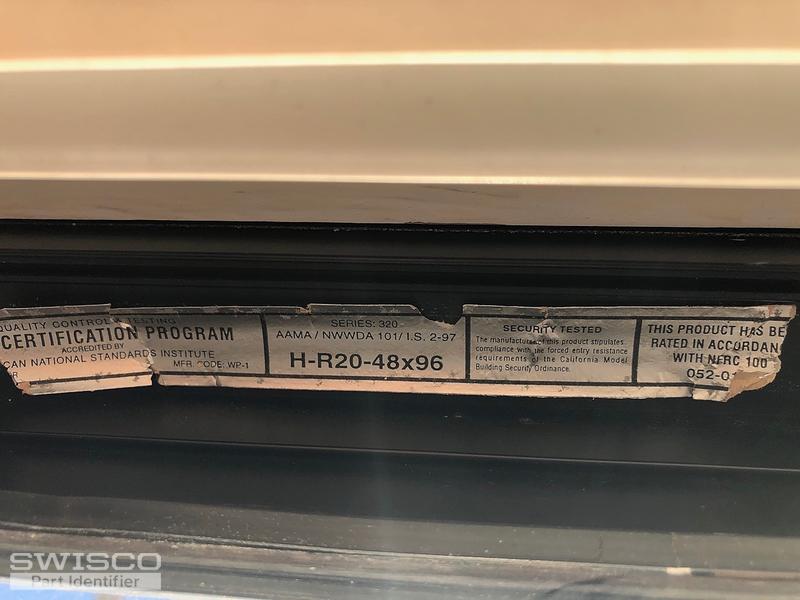

Thank you Bob. I'm sending another picture that seems to confirm that I would need the S380-16 balance. The only concern I have is the top doesn't seem to match mine. Will that matter when I install it?

2 user uploaded images

Bob from SWISCO

Dec 1, 2020 1:58 pm

No worries--while that top fitting does appear a bit different, functionally it will work exactly the same as the 19-005, and therefore the S380-16 should work as a replacement.
