Channel ID

Quick Learner from Denver

May 14, 2024 2:08 pm

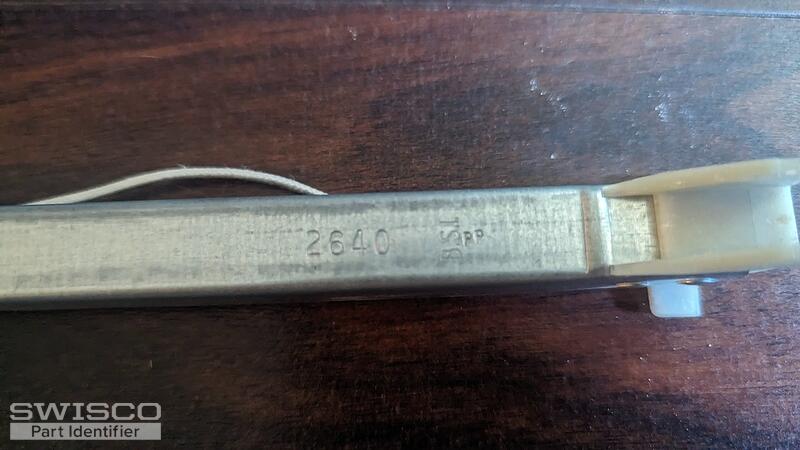

Please help confirm channel ID! It's stamped 2640, measures 27" and 9/16 wide. I'm leaning towards:

27" Series 380 Channel Balance (Product Code: S380-27) with the 19-005 top and 15-005 (1" deep) bottom fittings.

Thank you!

channel balance length

winged top fitting

winged bottom fitting

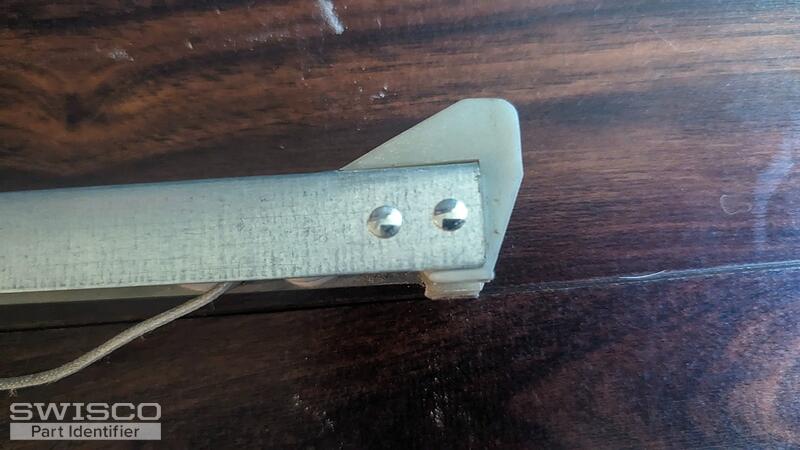

PXL_20240514_175840517

PXL_20240514_175851201

5 user uploaded images

2 Replies

+ Add a Comment

Quick Learner from Denver

May 14, 2024 2:26 pm

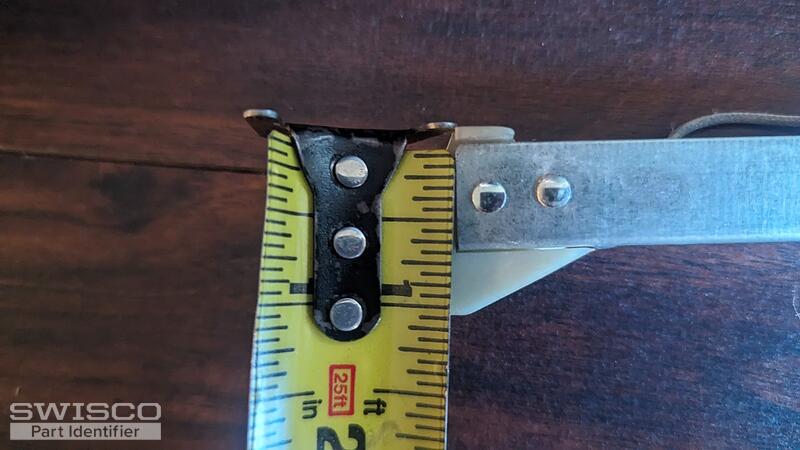

Looks like between S380 & S385. I added a photo of the measurement of the bottom attachment.

winged bottom shoe depth

1 user uploaded images

Emily

Emily from SWISCO

May 16, 2024 8:51 am

SWISCO

EXPERT

Hello there!

This indeed looks to be either the S380-27 or S385-27 channel balance depending on the depth of the bottom shoe. It's hard to get accurate measurements from a photo of a tape measure though. If the bottom shoe is 1", you'll want the Series 380. If it's 1-3/32", see the Series 385. We also recommend the 2640 stamp option for your replacements.

Comparison of the S380 and S385 balance shoes.

Comparison of the S380 and S385 balance shoes.

+ Add a Comment
