Hi can you please help me with this channel balance
Thank you

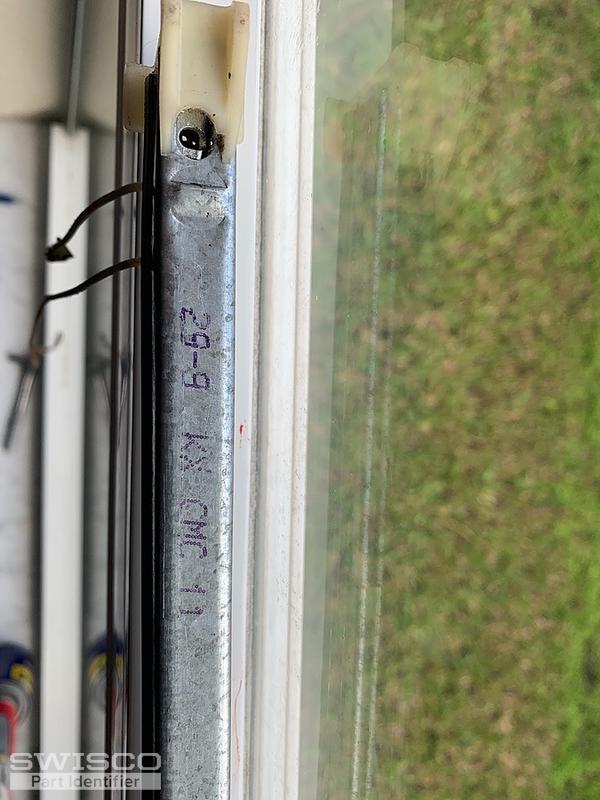

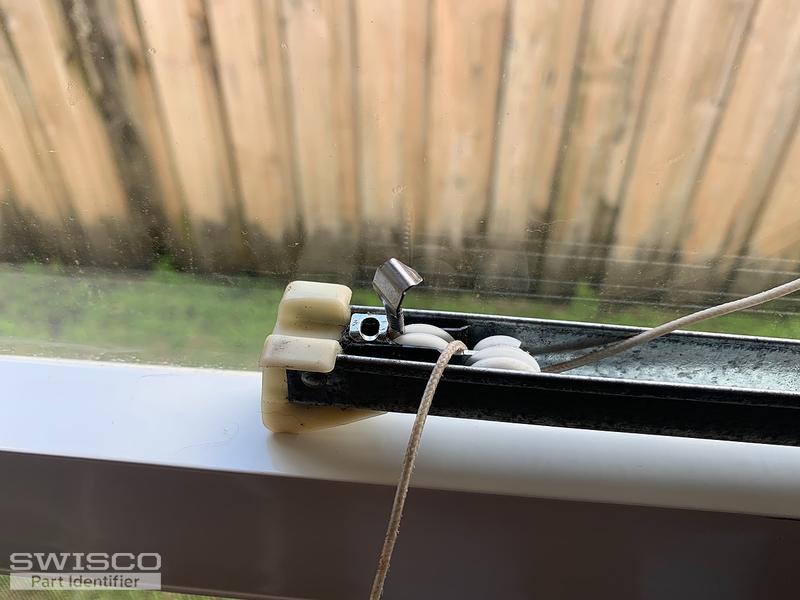

Channel balance
Quick Learner from Homestead florida
Nov 26, 2020 2:01 pm
5 user uploaded images
2 Replies
Casey from SWISCO
Dec 1, 2020 11:05 am
Hello,
With this combination of attachments, you could have either an S380-30 or S385-30 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need to weigh your sash to determine which option you'll need. There is a chart on the product page that explains how to choose your option based on the sash weight.
Thank you and let us know if you have any other questions or concerns.
Comparison of the S378, S380 and S385 balance shoes.
