Channel balance

Quick Learner from California
Jan 8, 2022 5:29 pm
Pl suggest appropriate Chanel balance

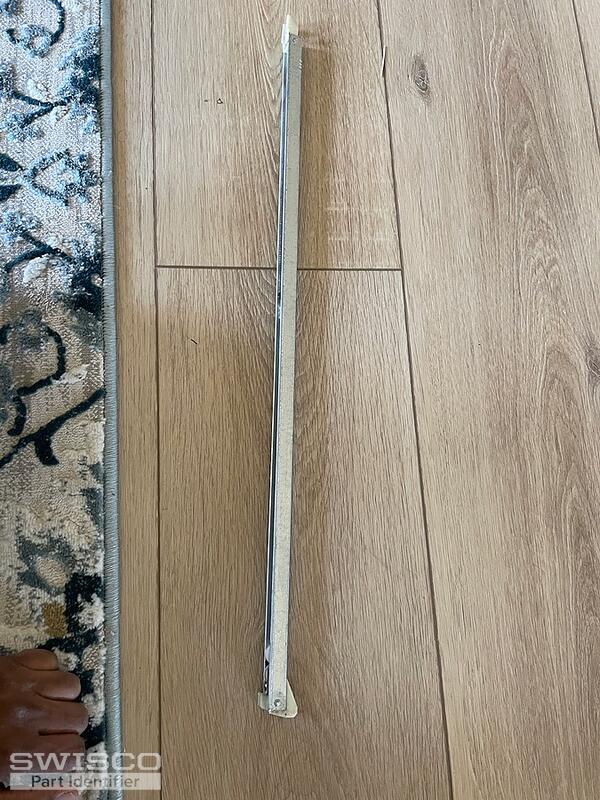

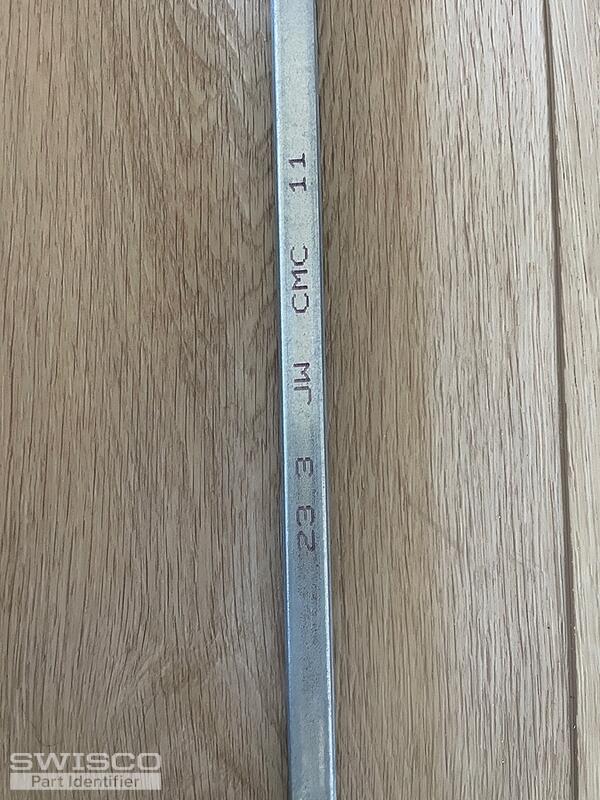

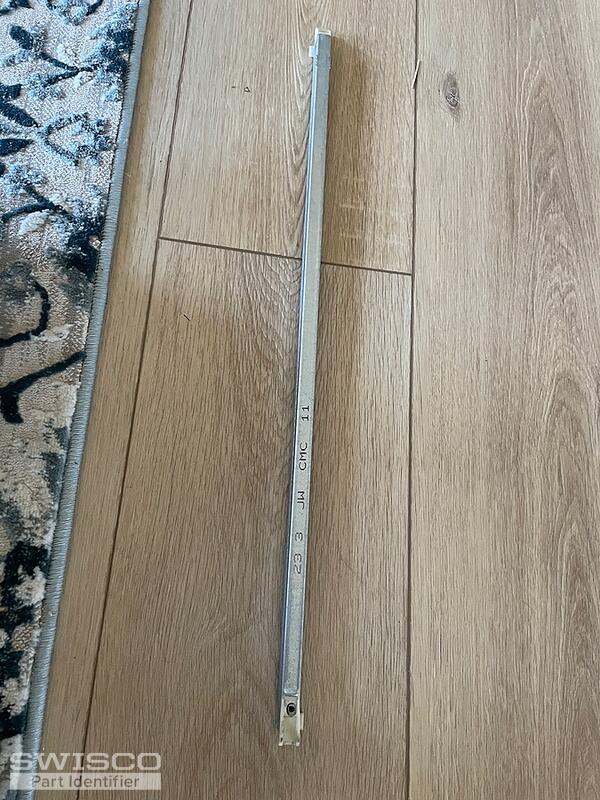

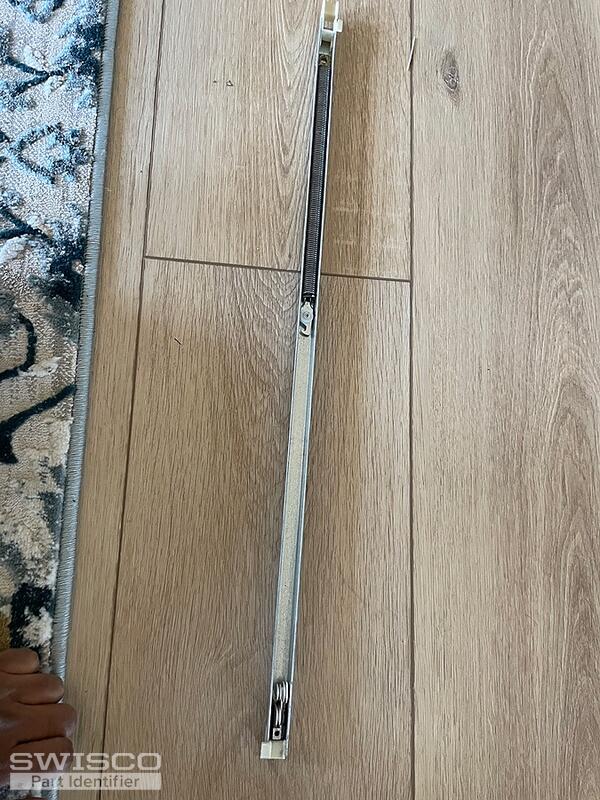

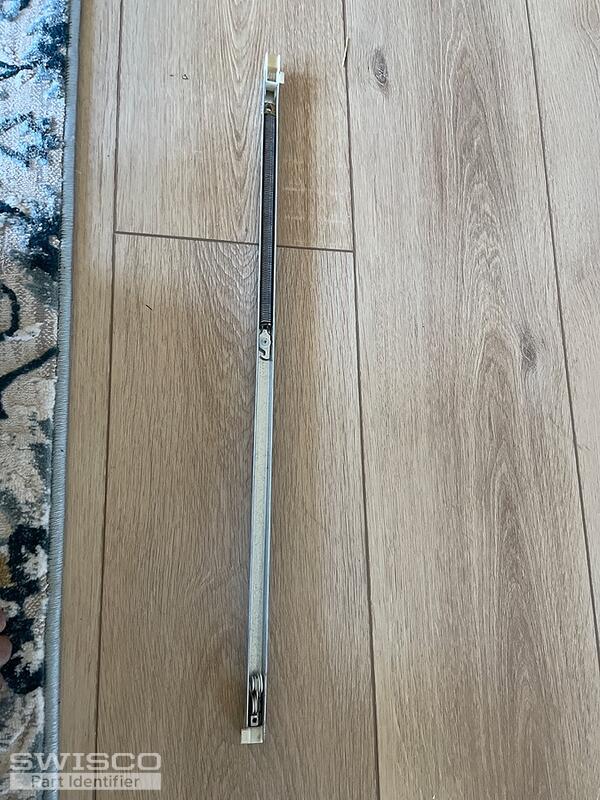

image 121227F8-7BBF-495C-9B21-5B2EC81636EA 1DCC30DF-D88B-4E8C-8EB3-70092E4B8FA4 DFE8B311-BA78-402A-946F-441A81C73E01 3E687737-578E-4E6B-BEFE-CA47FA37D4B9
5 user uploaded images
1 Replies
+ Add a Comment
Emily
Emily from SWISCO
Jan 11, 2022 1:53 pm
SWISCO
EXPERT

Hello!

With this combination of attachments, you could have either an S380-24 or S385-24 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You will also need a 2330 stamp option.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
