Channel balance

A quick learner from Santa Clara, CA says:

March 19, 2023

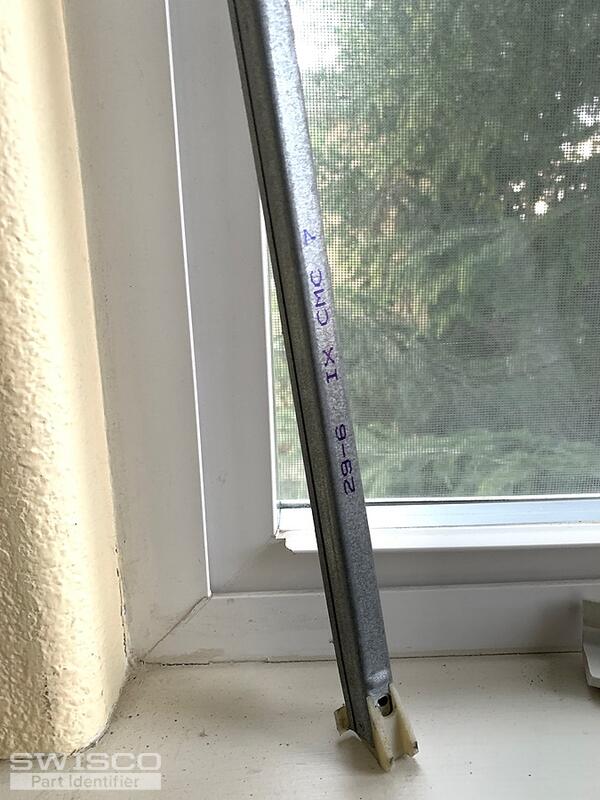

Width is 5/8" (not sure if it is same as 3/4"). Length measures 30".

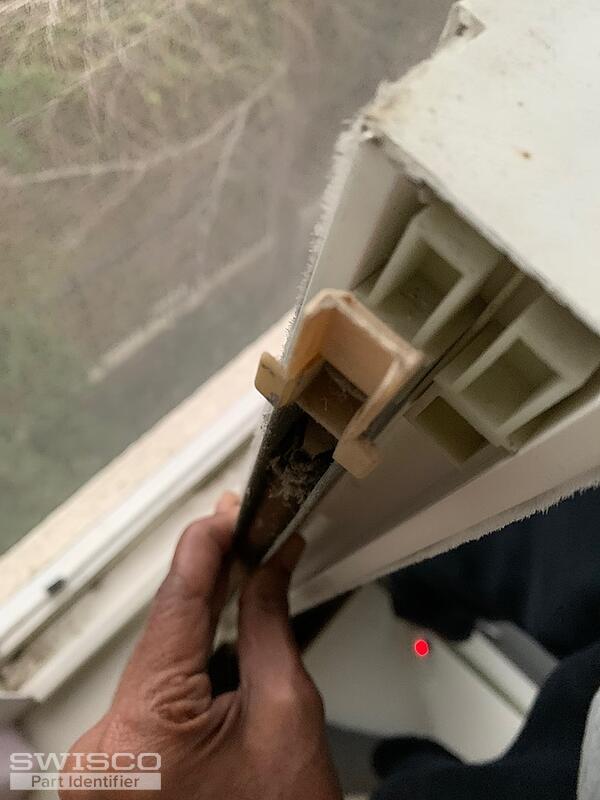

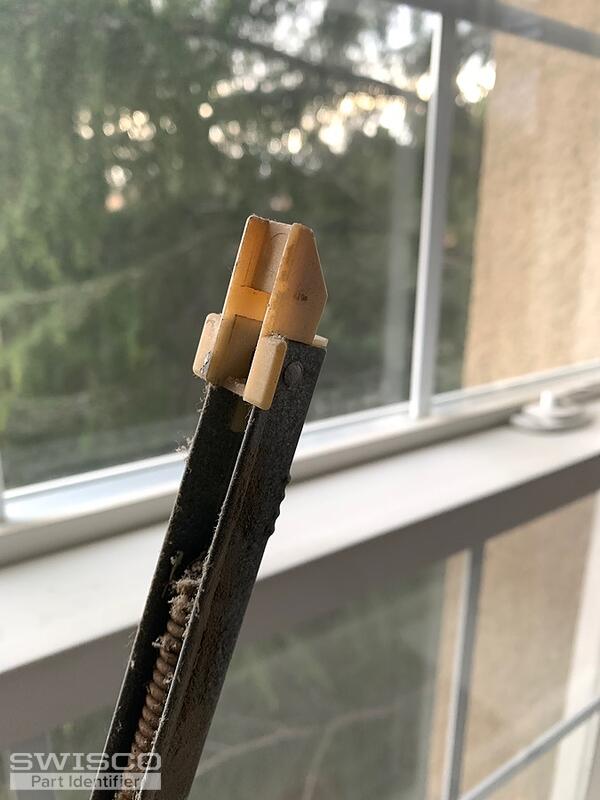

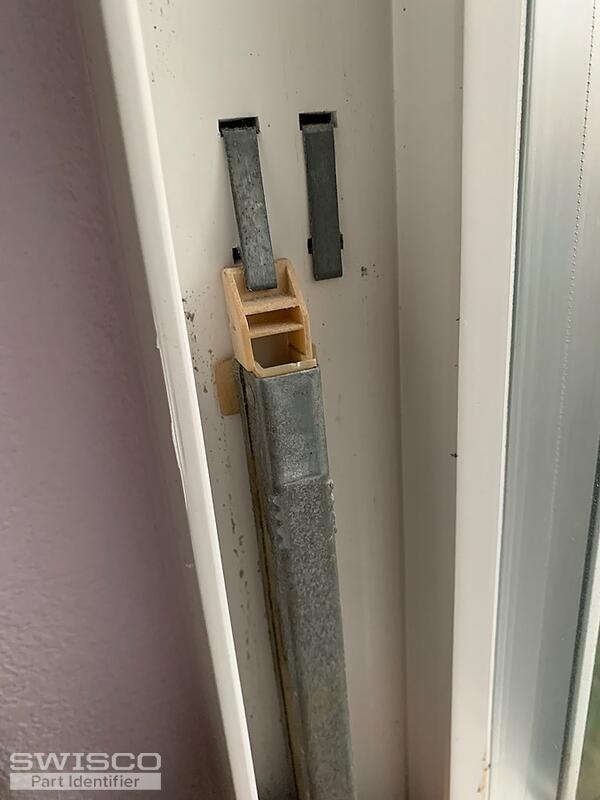

Need help identifying this channel balance and the pricing information. The window panes are wide, will I be able to use 1/2" channel balances instead of 3/4" ones? Please refer to the pictures and suggest. Appreciate any advice you can offer. Thanks.

Thumbnail of the uploaded file named F76B77F3-78A2-4776-AA20-3D1562631DFA.jpeg

Thumbnail of the uploaded file named 2E1B4C0F-F61B-434D-BA92-069E547072A1.jpeg

Thumbnail of the uploaded file named 09F1FA91-95D5-4002-85E8-3FA8D68F684F.jpeg

Thumbnail of the uploaded file named 08F63F40-C83C-4CE7-BA53-013352EA0898.jpeg

Thumbnail of the uploaded file named F09C438F-3A7B-4927-8DD2-0D7A4AAEE81A.jpeg

Jasmine from SWISCO responded:

March 20, 2023

Thanks for reaching out. It is most likely, you have a 1/2" channel. So either our S380-30 or our S385-30 with a 2960 stamp would be the best replacement balances for you.

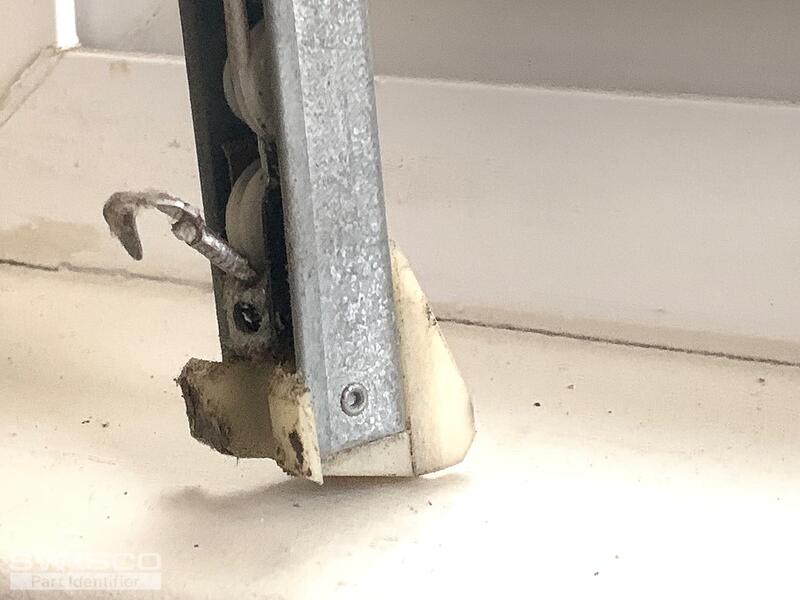

To determine the series, you'll need to confirm the measurement for the depth of your bottom shoe. It should either be 1" or 1-3/32". If the measurement does not match either of these dimensions, let me know.

Comparison of the S380 and S385 balance shoes.

A quick learner from Santa Clara, CA says:

March 27, 2023

Thanks for helping me identify the part, Jasmine! 1/2" makes sense, because the width on the front side is 1/2" and at the back side is 5/8".

The depth of the bottom shoe is 1-3/32". It's a subtle ~2mm difference between the two. But I measured many times and it is 1-3/32".

Thanks again!!

Jasmine from SWISCO responded:

March 28, 2023

You're welcome! I was happy to help, of course.

It sounds like you have everything sorted, but please let me know if I can be of any further assistance. We're always happy to answer any follow up questions you may have.

30" Series 380 Channel Balance

S380-30

$11.30

30" Series 385 Channel Balance

S385-30

$11.30
