Jasmine from SWISCO responded:
March 24, 2023

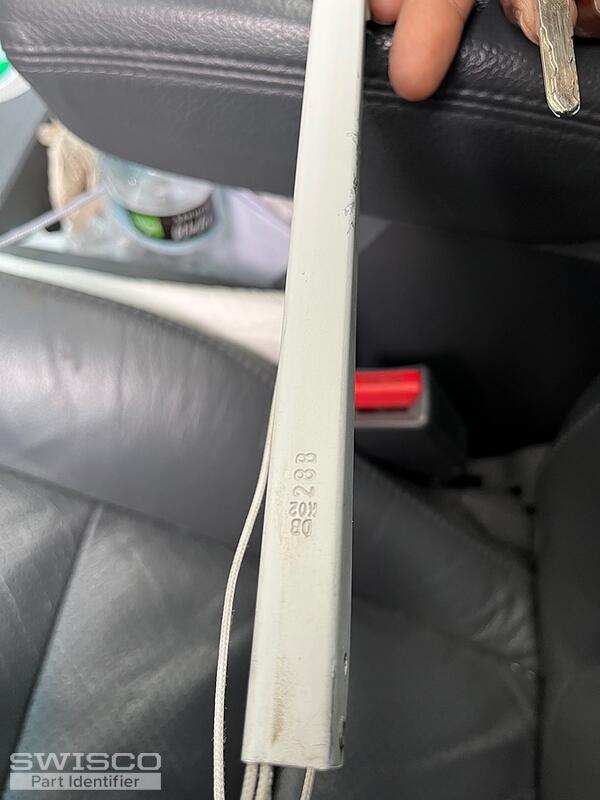

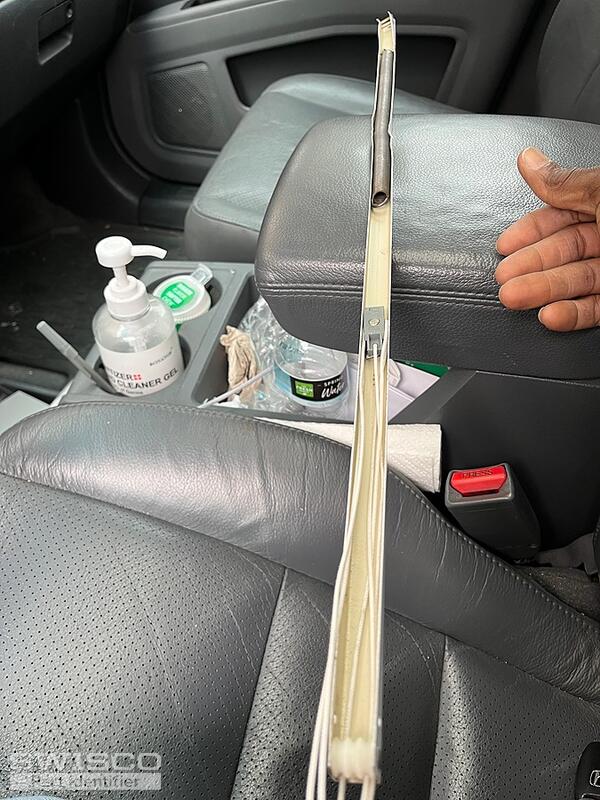

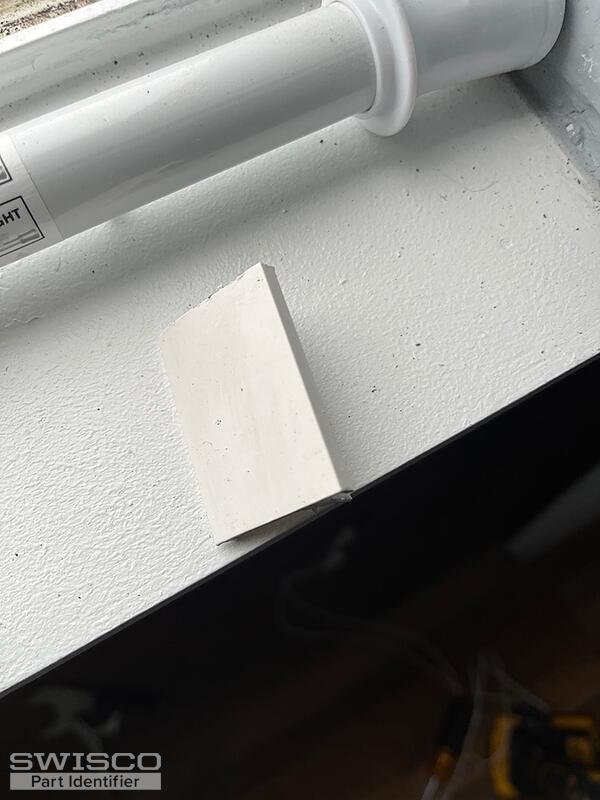

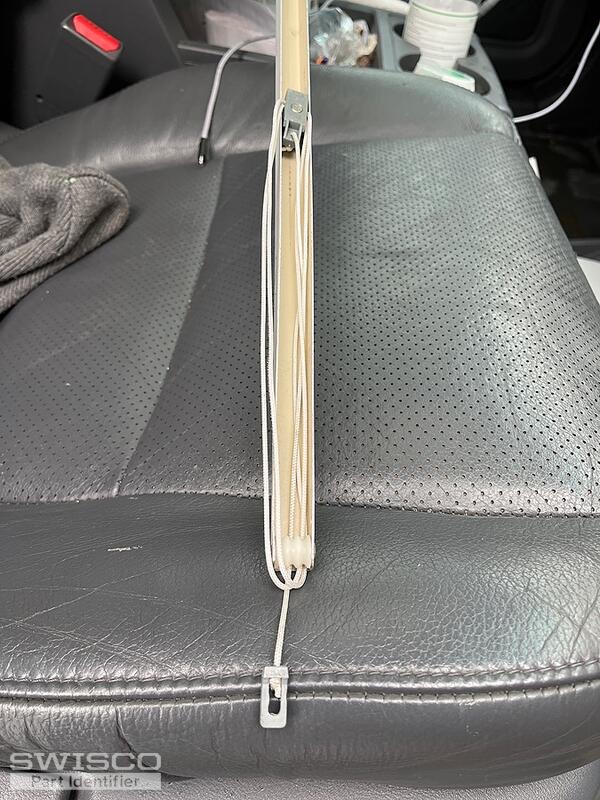

Thanks for reaching out. I suggest our S770-28 with a 28B stamp. I am confident this is the right replacement for you. This balances is compatible with either the 15-178 or the 15-188 pivot shoe. To determine which shoe is the right fit for your window, you'll need to confirm the measurements the thickness of your shoe. The 15-178 has a 17/32" thickness, the 15-188 has a 1/2" thickness. |
Jasmine from SWISCO responded:
March 27, 2023

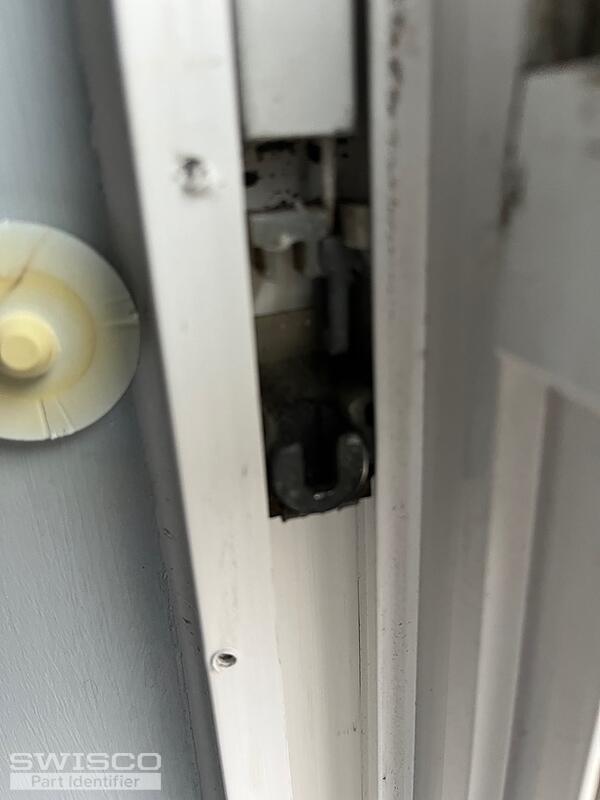

There are a few different pivot bars compatible with both shoes. I'll need to see a photo of your original pivot bar to confirm the correct replacement. It would be best to see an undamaged piece of hardware removed from the window. |
Jasmine from SWISCO responded:
March 27, 2023
Your pivot bar looks like our 26-403. Carefully compare the measurements to your existing pivot bar to confirm that this is the correct replacement. Although, I am confident this is the correct match. Alternate image for 26-403
Alternate view of 26-403
|
