Channel balance

Quick Learner from AZ

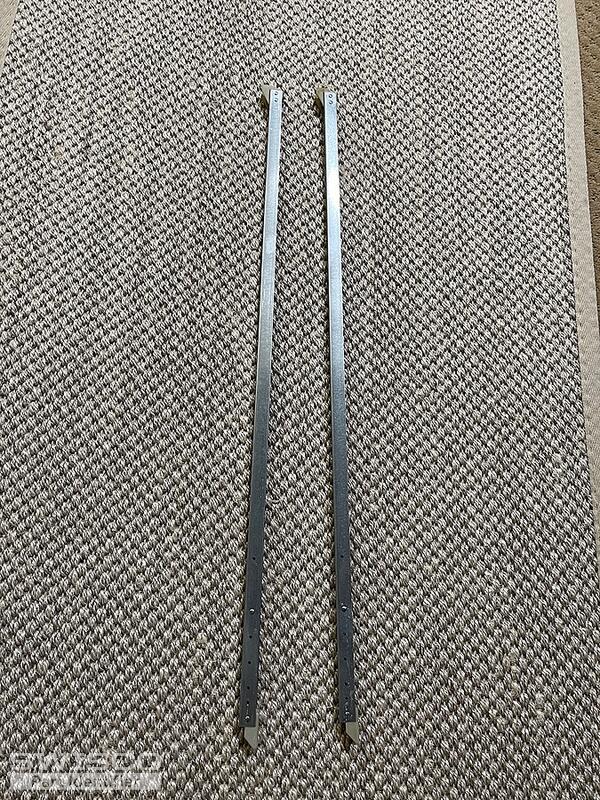

It's 9/16 wide and 34" long

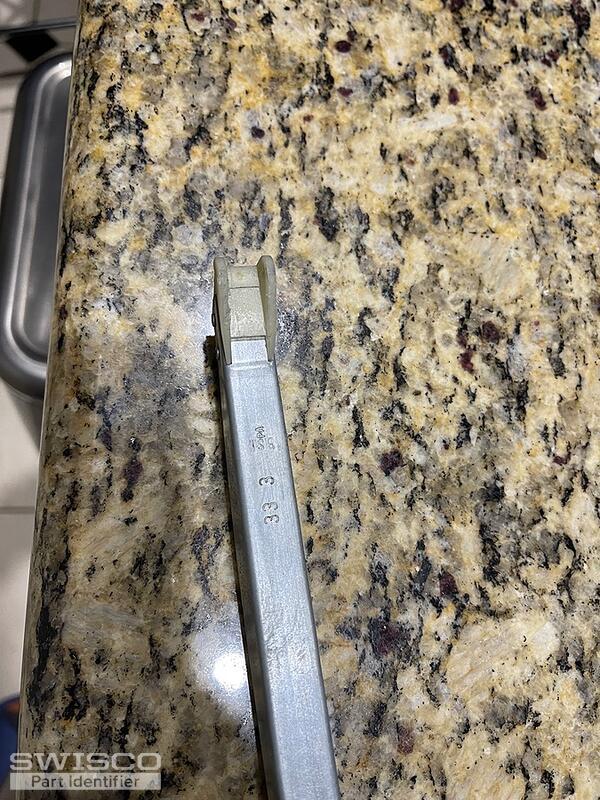

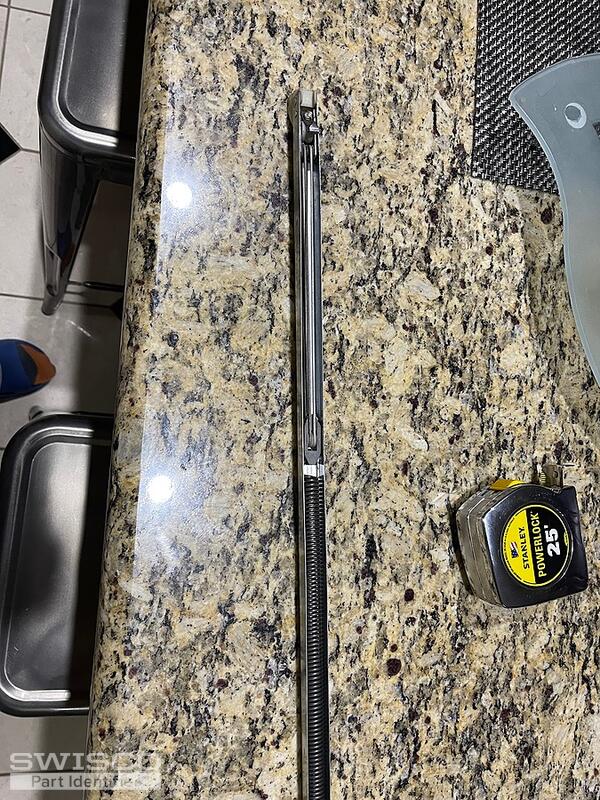

Markings 33 3, 3.S.1 PA

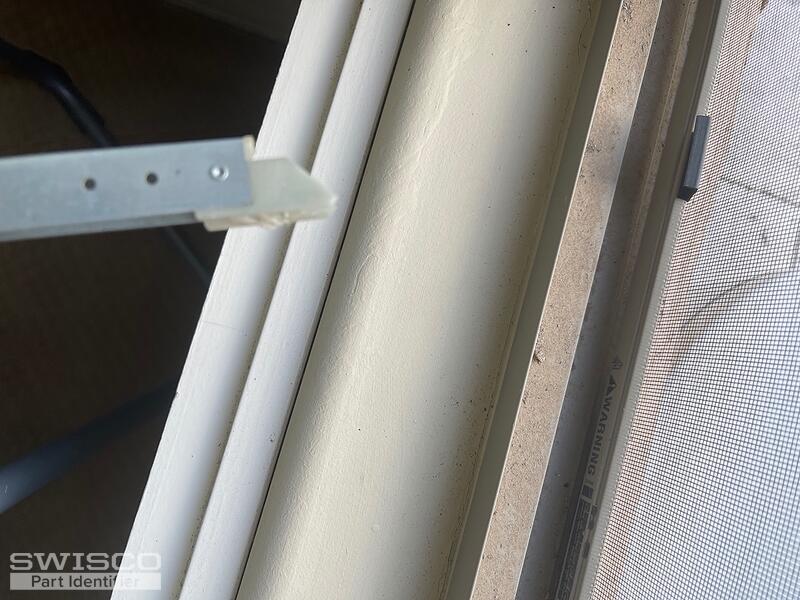

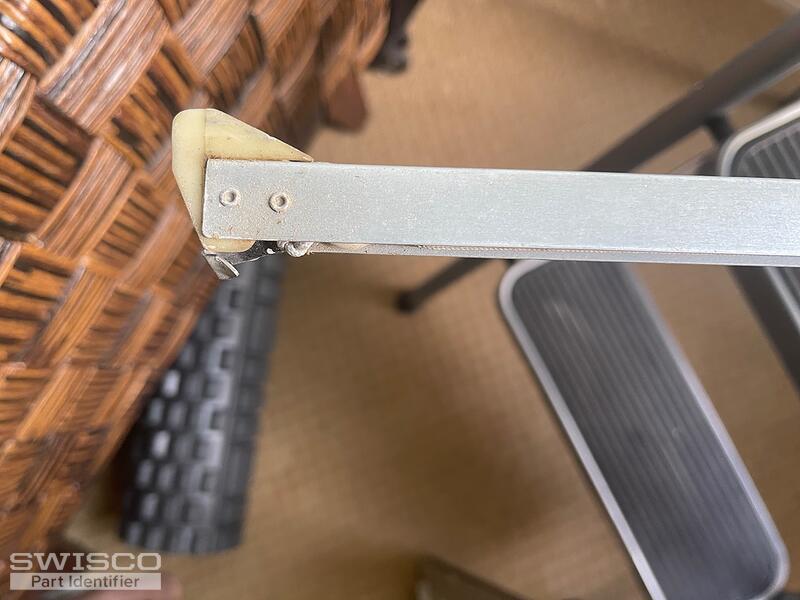

2 user uploaded images
11 Replies
Quick Learner from AZ

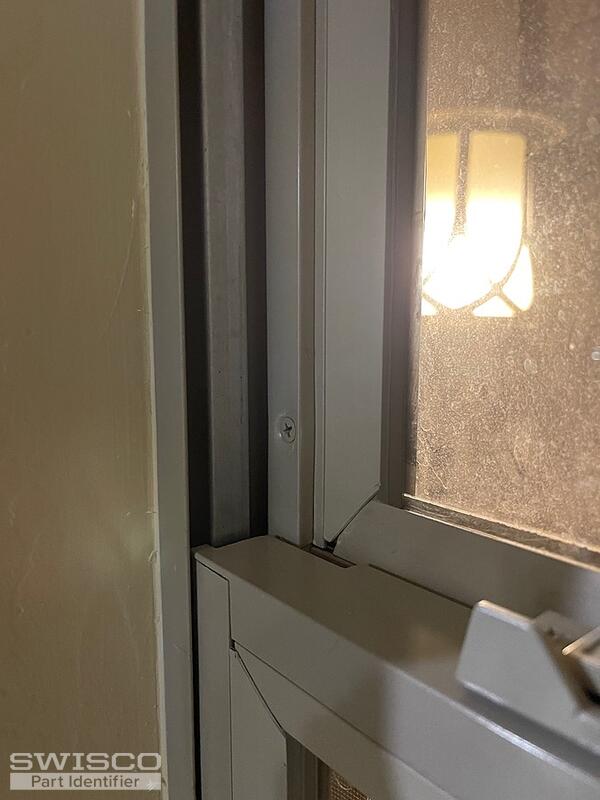

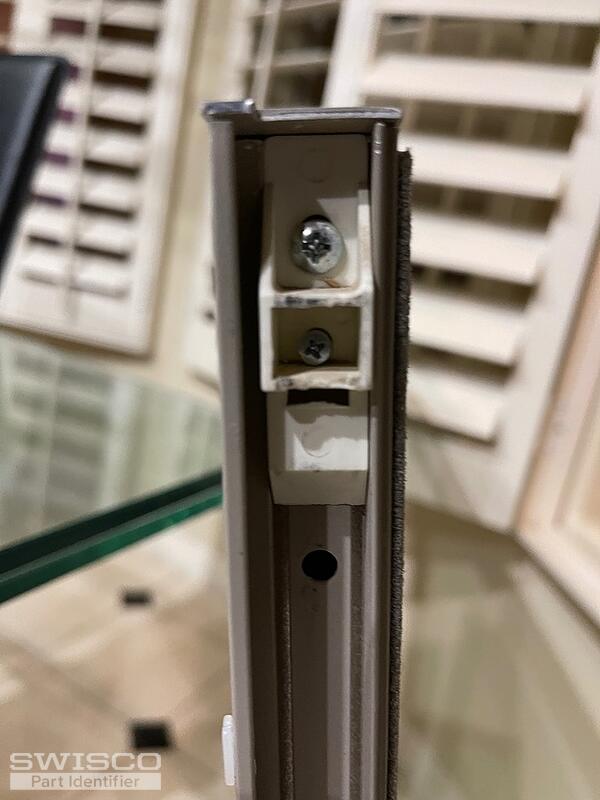

Not sure if that part at the top of the sash needs to be replaced with replacement of the channel balance

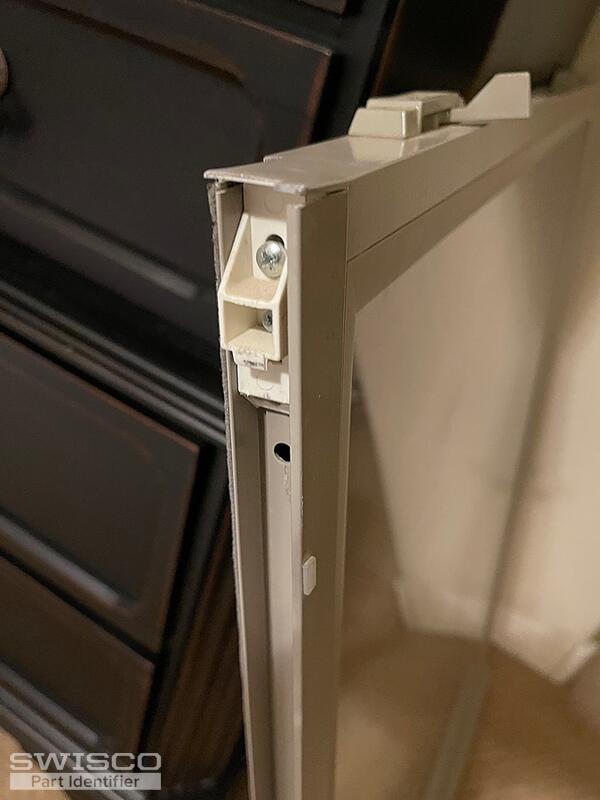

3 user uploaded images
Emily
Emily from SWISCO
SWISCO
Expert

Hello there!

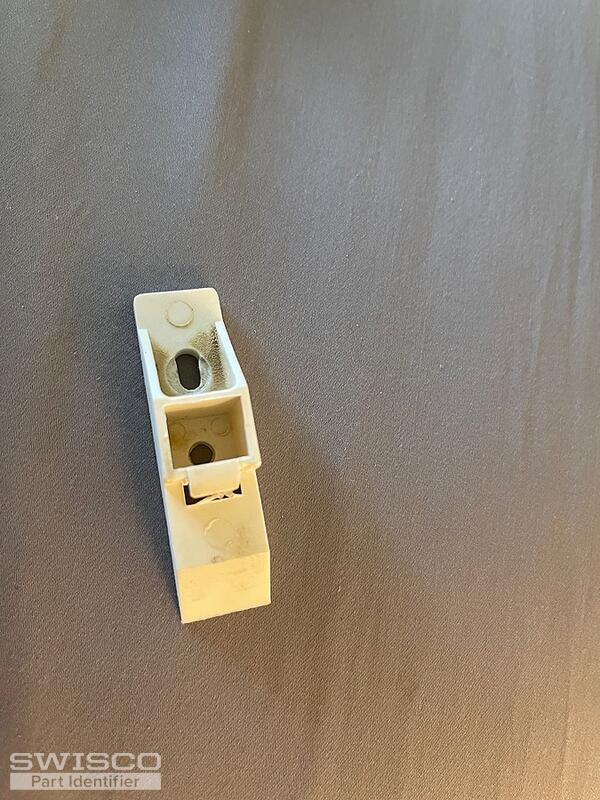

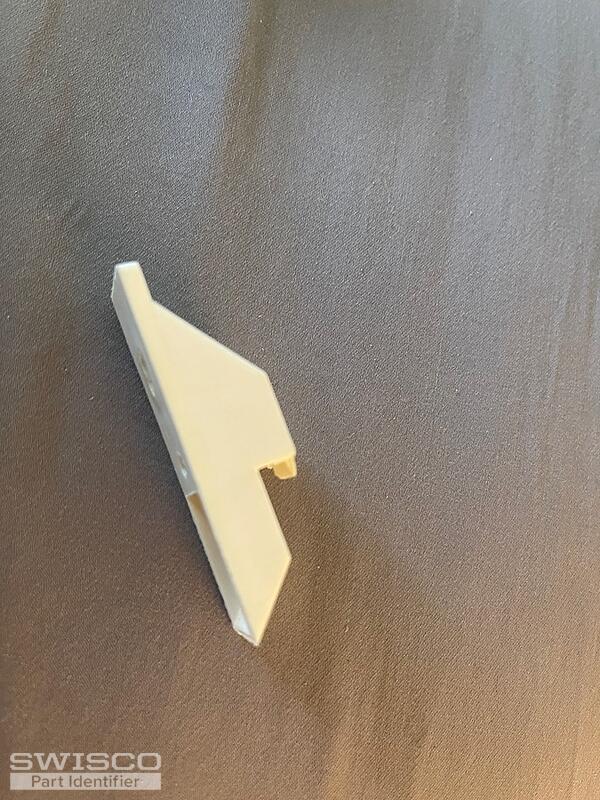

Our 18-202 resembles your old top sash guide. Have a look at the dimensions and see if they match up.

Alternate view and dimensions for 18-202
Alternate view and dimensions for 18-202

Alternate view and dimensions for 18-202
Alternate view and dimensions for 18-202

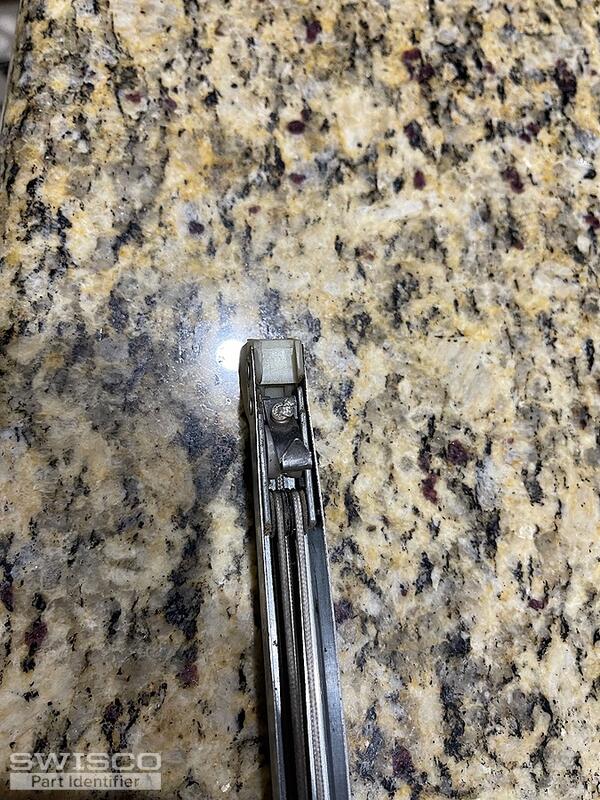

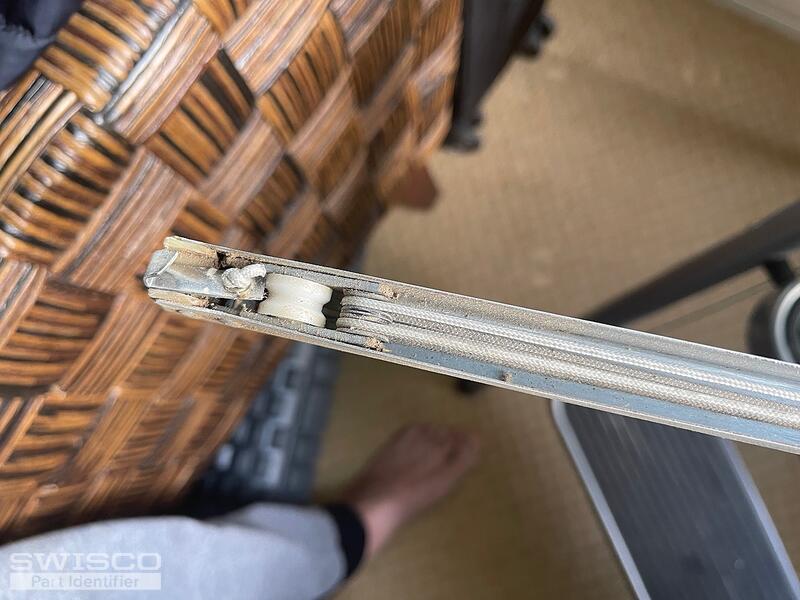

We're happy to help with the balance but we will need to see photos of it removed from the window. We must see the top and bottom fittings as well as the inside of the metal channel where the innerspring connects to the pulley mechanism.

Quick Learner from AZ
It seems that the measurements of what you sent are the same as the one I have

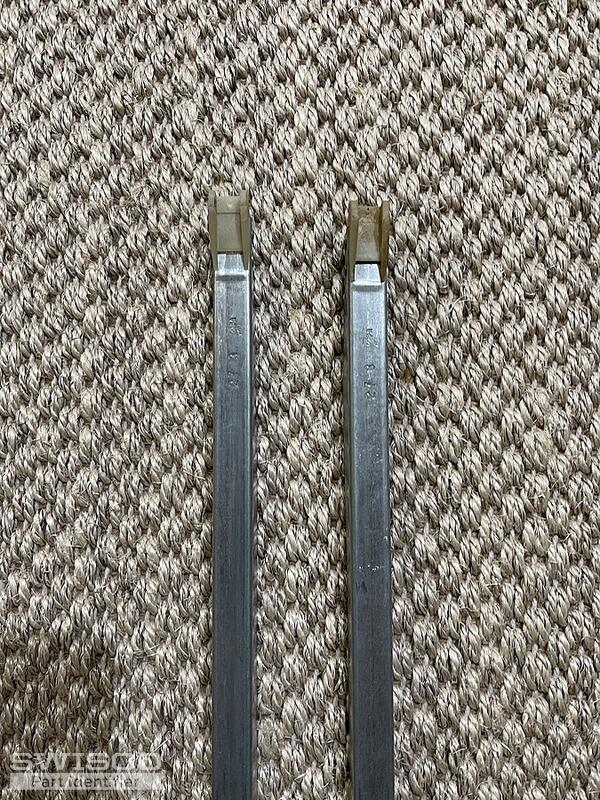

5 user uploaded images
Quick Learner from AZ

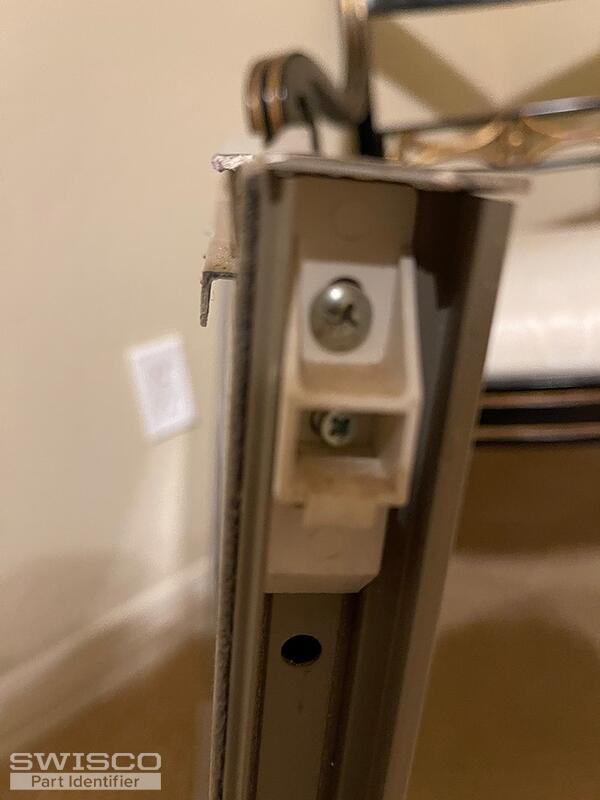

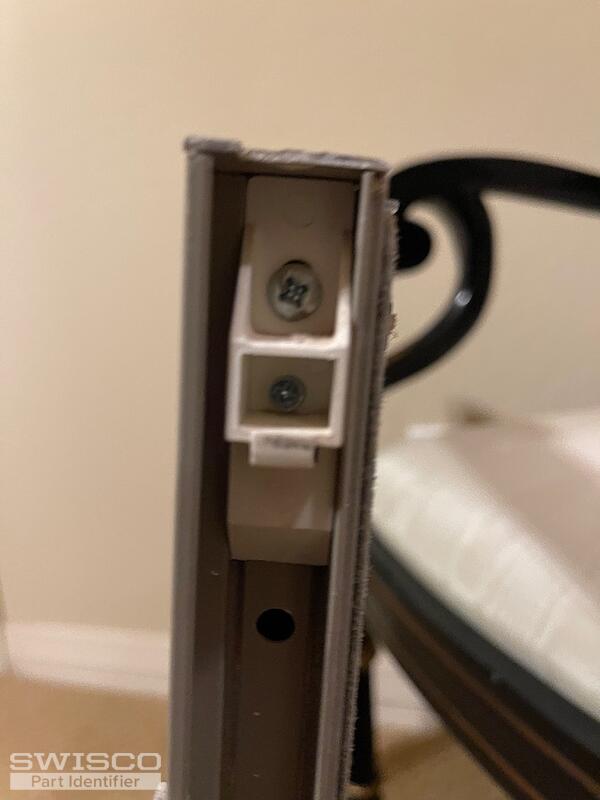

Does this sash guide appear broken? If not, why is the channel balance staying all the way up when the window is all the way down?
Thanks for your help

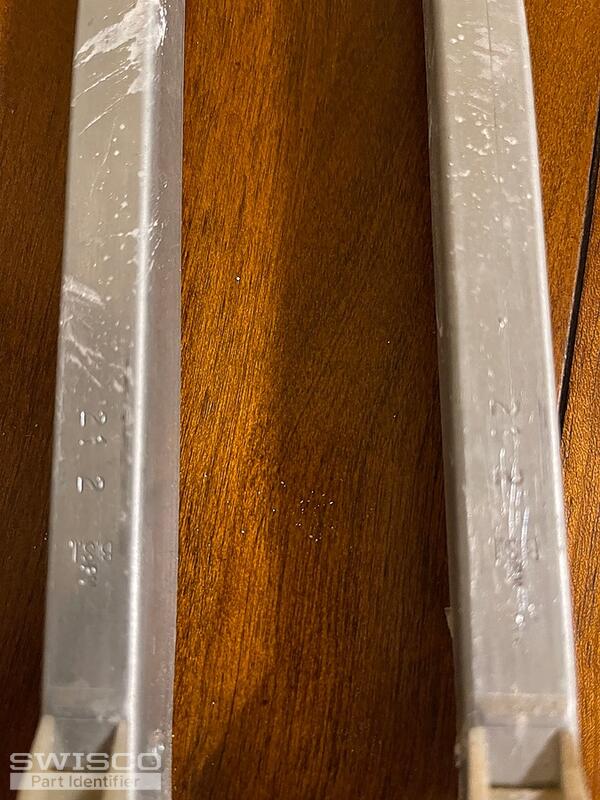

4 user uploaded images
Emily
Emily from SWISCO
SWISCO
Expert

Thank you,

It appears you have either our Series 351, with a 15-002 bottom attachment, or Series 390, with a 15-001 bottom attachment. Take a look at the image below to determine which balance you'll need.

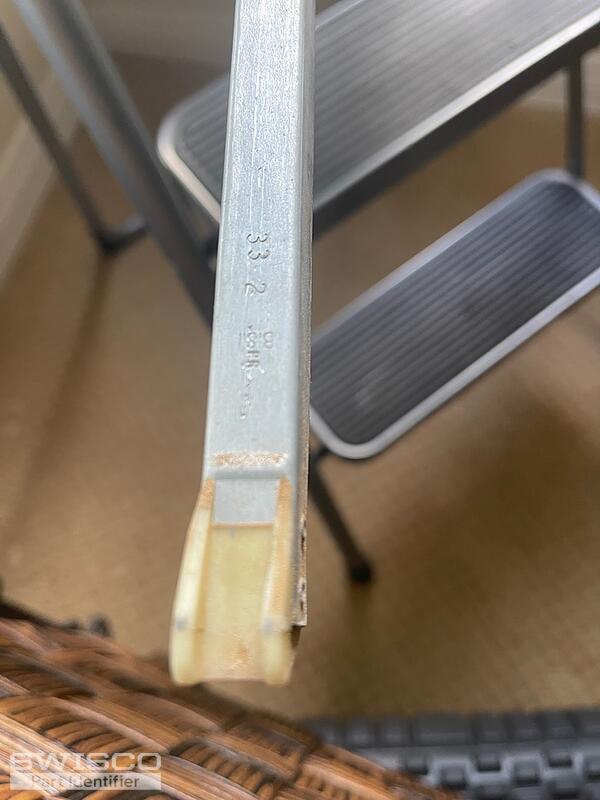

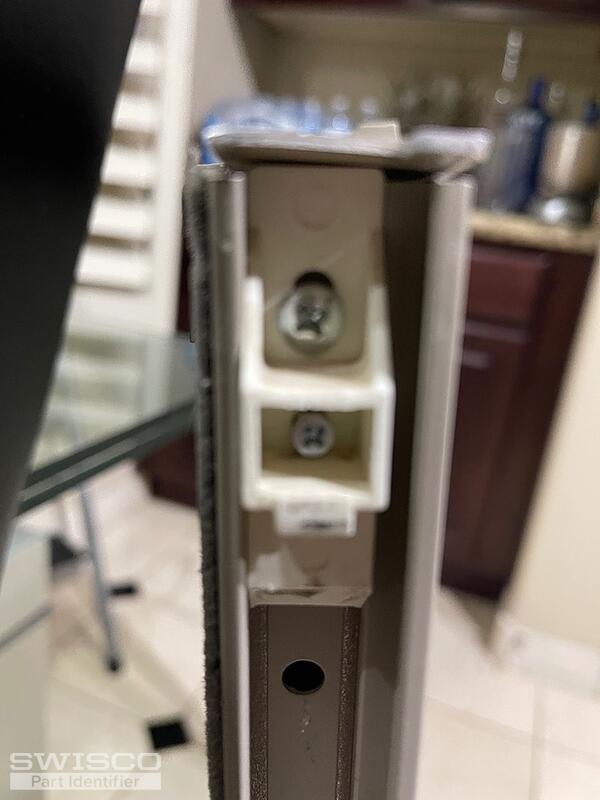

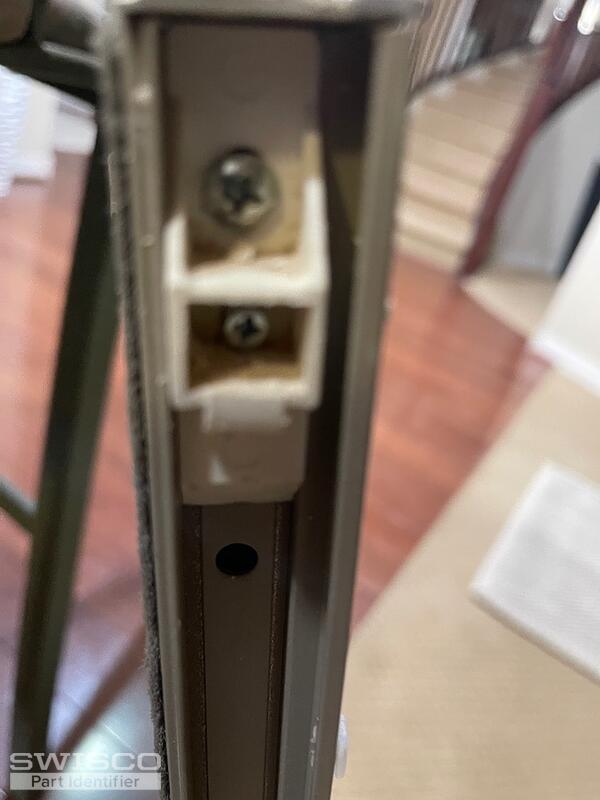

Are these balances from the same window? It appears the one removed has a 33 2 stamp while the original pictures shown had a 33 3 stamp. The stamp should be the same on both sides. If these are from the same window, can you provide the weight of the window sash?

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.

Are both balances shooting up past the sash? The original pictures does show a damaged guide, but the newer pictures it does not look as damaged. It could be worn down. Let me know!

Quick Learner from AZ

Thanks

Window #1

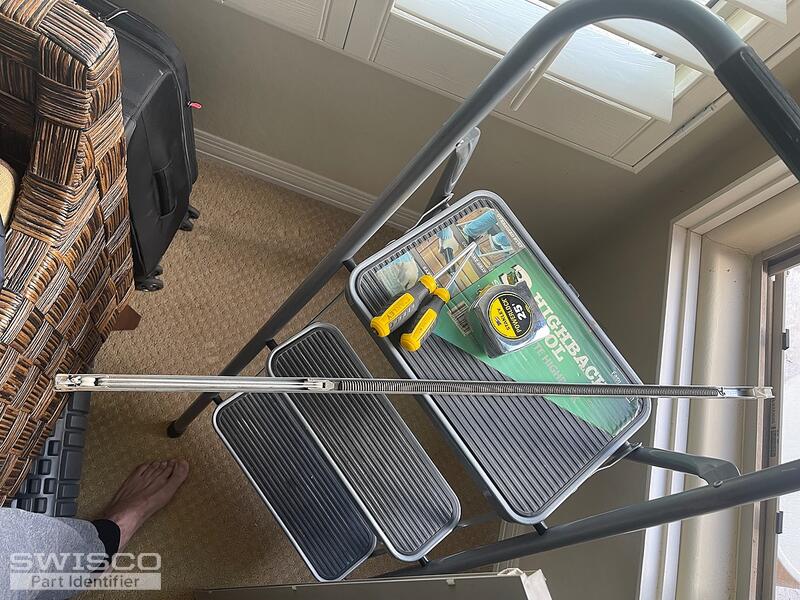

33 3 34" long bottom plastic piece 11/8 wide

Window guide 18-202 Jordan

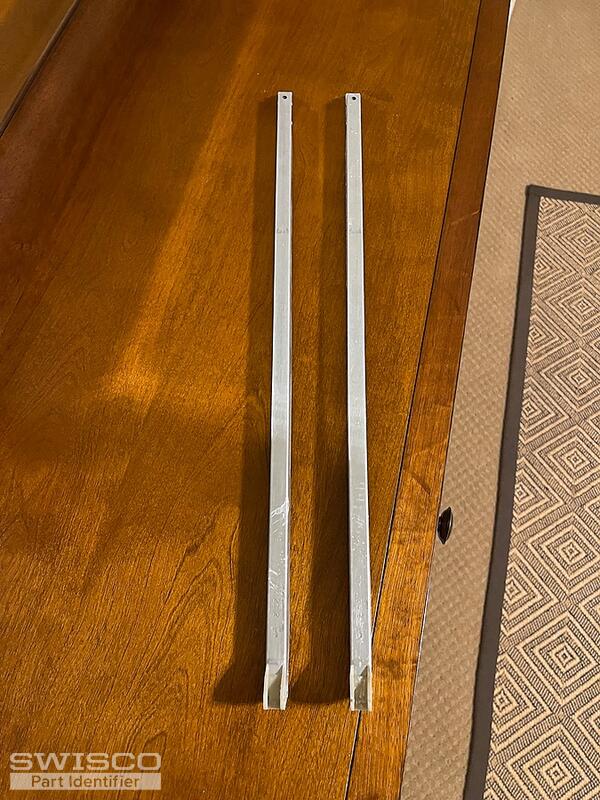

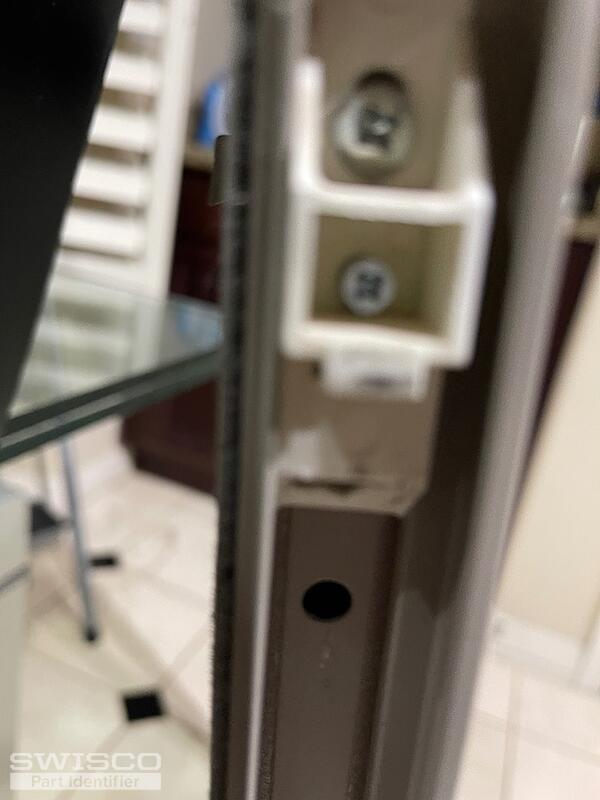

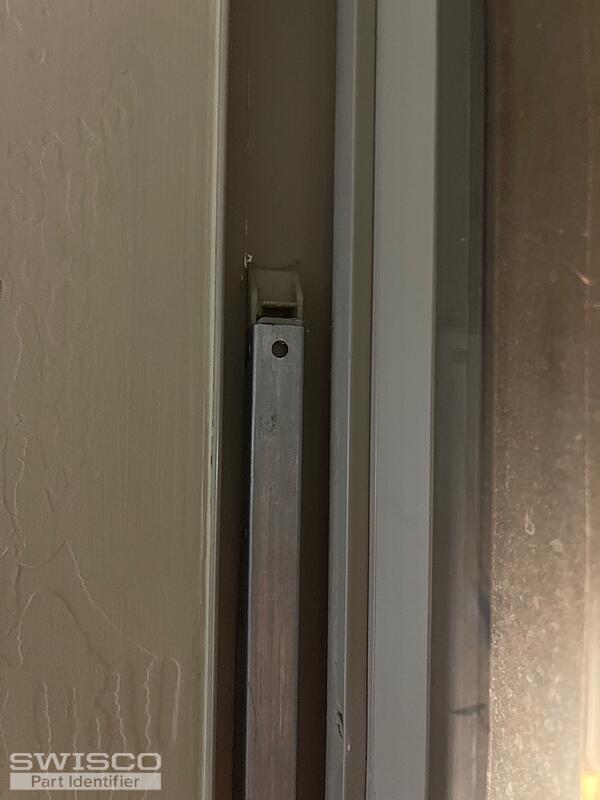

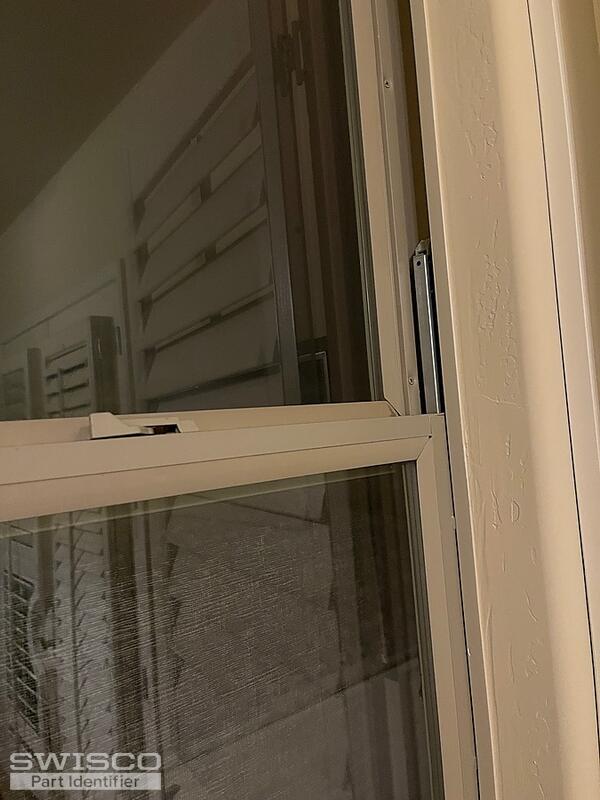

Channel balance appears fine. One channel rod always shots up. Appears that the frame maybe 1-2 mm wider than it should be. So the window doesn't catch on both balances.On some I'm able to make it catch by pushing the sash to the side that isn't catching with a stew driver

Advice? What needs to be replaced

Thanks Rest of the windows to follow

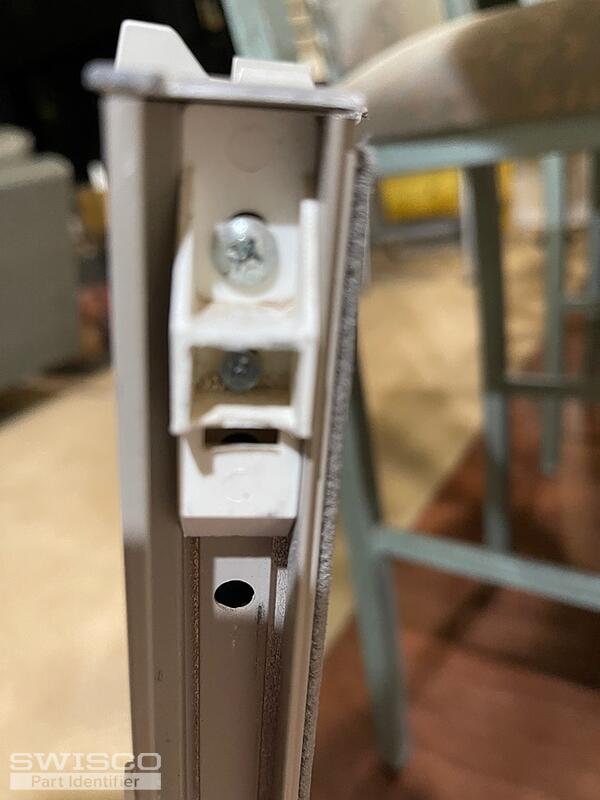

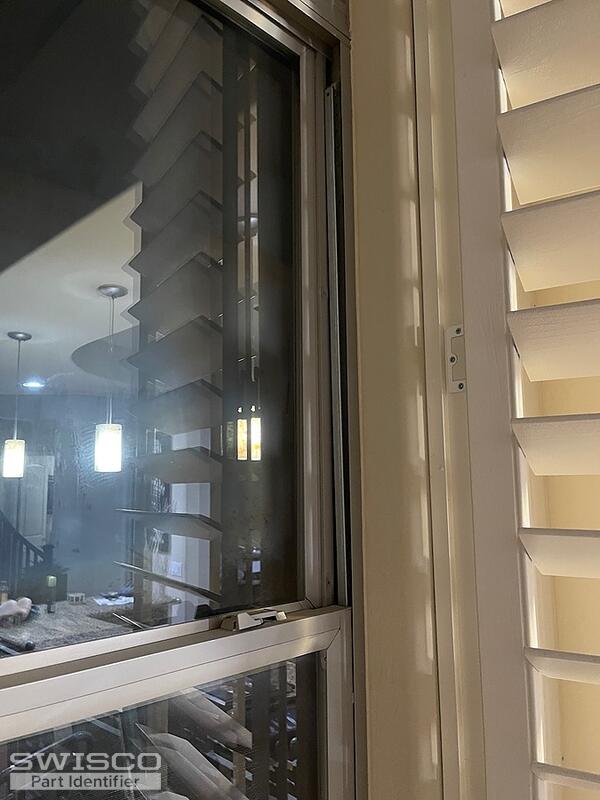

5 user uploaded images
Quick Learner from AZ
Window #2
27. 3
Same issue. On channel balance shooting up
5 user uploaded images
Quick Learner from AZ
Window #4 has same issue
32. 3
Quick Learner from AZ
Window #5
Same issue
5 user uploaded images
Paul
Paul from SWISCO
SWISCO
Expert

Looking at your photos of your window frame, it doesn't look like you can shim the master frame to meet the sashes. I suggest adding a washer at the top and a bottom screw behind the top sash guide, the 18-202. This should prevent the balances from shooting past the top sash guide.
