Channel balance

Home Owner from Fresno, Ca
Hi,

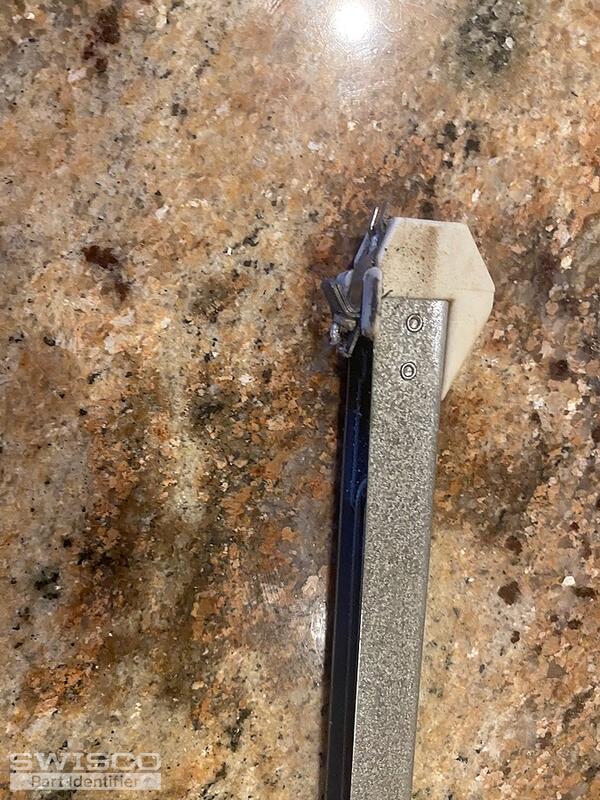

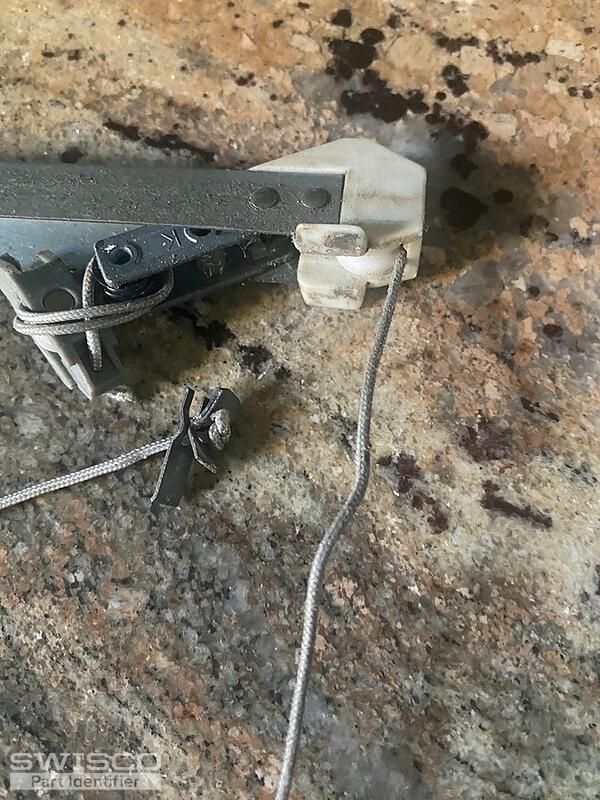

Channel balance of one of the windows broken. it is 32" 10/60th of an inch long.

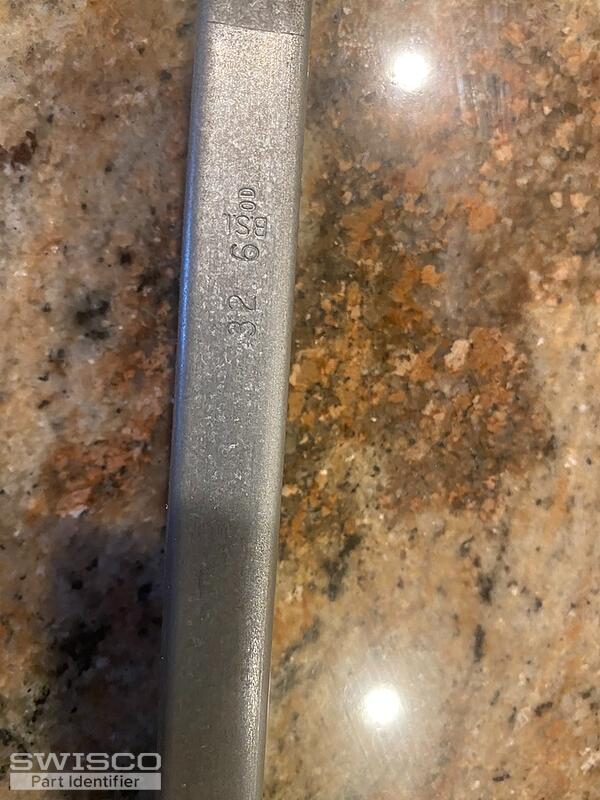

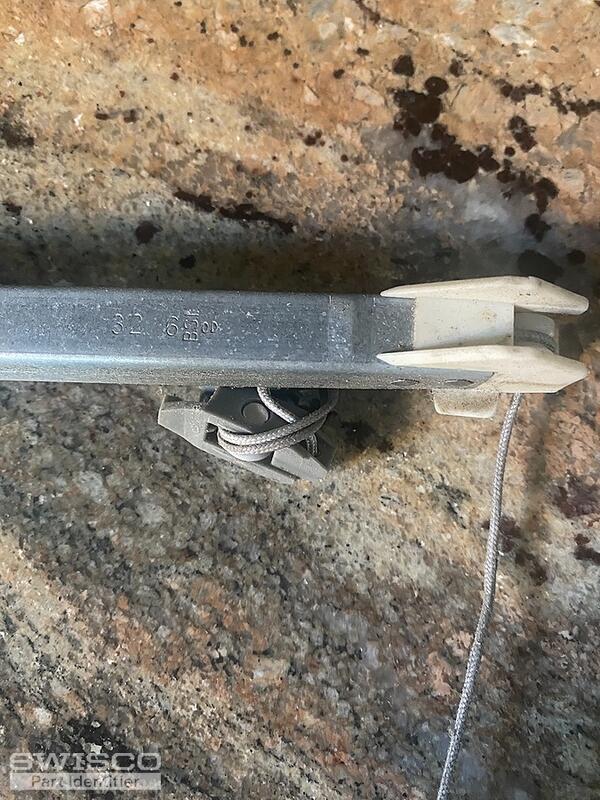

There is number (photo #1976) has 32" 6 BSI OD.
Not sure what the right size/product?
5 user uploaded images
5 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hello there!

Thank you for reaching out to us. We can help supply this balance but it will have to be a custom order due to its configuration. The pulley wheel is built into the bottom fitting itself and this balance features an extended cord travel as well as a metal channel length ending in 5/8" which is what makes it custom. For example, the metal channel should measure 32-5/8" long. Can you double-check that for us? Custom orders are nonrefundable so we'd like to be certain. Can you also confirm the number of balances you'd like to order?

Home Owner from Fresno, Ca

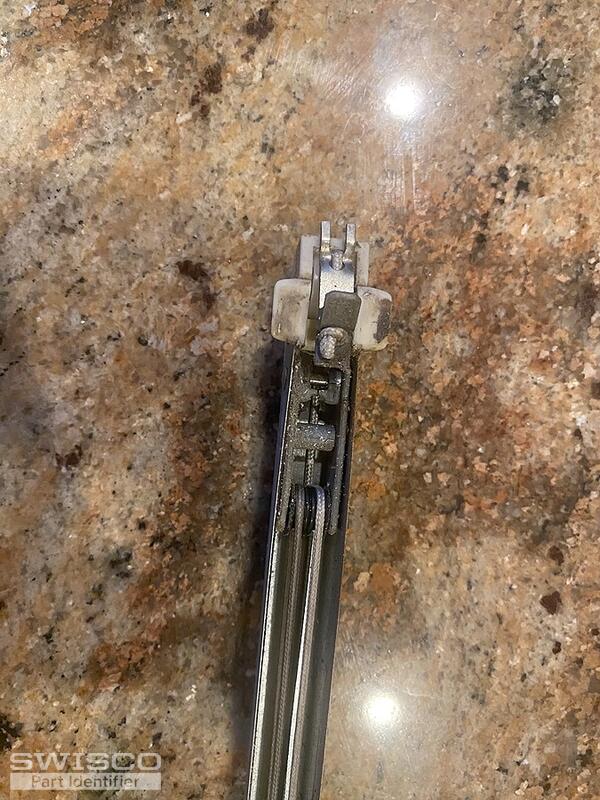

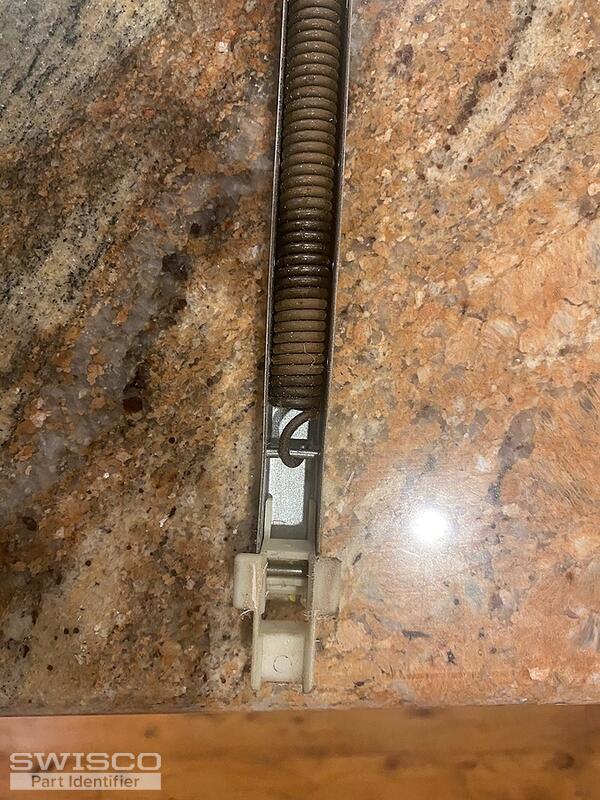

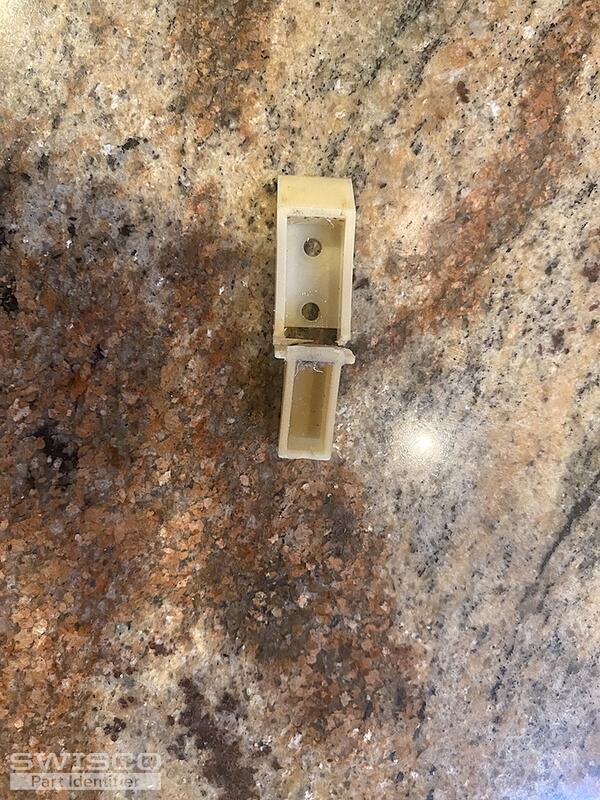

I have added some additional photos of the pair that is not broken.
It is 32&10/16-5/8"
And I need (one pair 2 of them).
5 user uploaded images
Emily
Emily from SWISCO
SWISCO
Expert

Thanks, this is a huge help! Please give us a little more time to confirm the availability of this size, and we'll get back to you ASAP!

In the meantime, review our 18-171 top sash guide. I believe this will match your original, but you should check our measurements first to verify.

Alternate image for 18-171
Alternate image for 18-171

Alternate view of 18-171
Alternate view of 18-171

Alternate view of 18-171
Alternate view of 18-171

Emily
Emily from SWISCO
SWISCO
Expert

Okay, we're good to go on our end. I'll go ahead and email you a purchase link and price quote that will let you add 2 of these assemblies to your cart. You may then checkout as normal.
