Channel balance: 29 5 LW CMC 7 : SWISCO.com

Handy Person from Dublin, California

Nov 2, 2025 11:33 pm

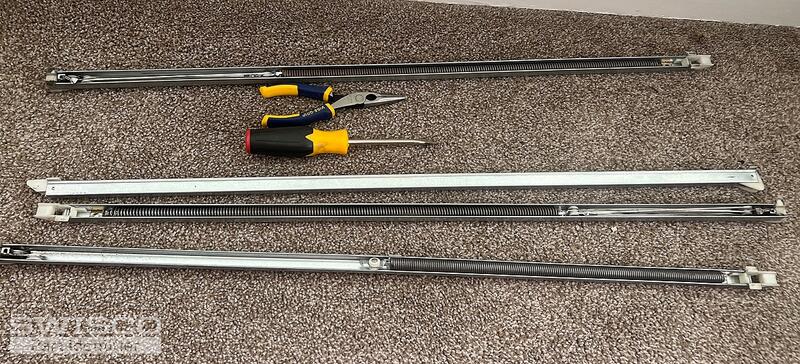

There's a stamp "29 5 LW CMC". Metal channel length is 30". Width is 1/2". I tried my best to get an accurate measurement of the bottom shoe and it appears to be 1-3/32" but hard to be certain. Hope I provided enough details. Thanks in advance

4 user uploaded images

4 Replies

Bob from SWISCO

Nov 3, 2025 4:30 am

Hey there. I am sure we can help; but first, can you show me photos of the underside of the metal channel? Some balances from the west coast have a special design we must account for. We'll do our best to help from there.

Handy Person from Dublin, California

Nov 3, 2025 11:37 am

Thanks for the quick response.

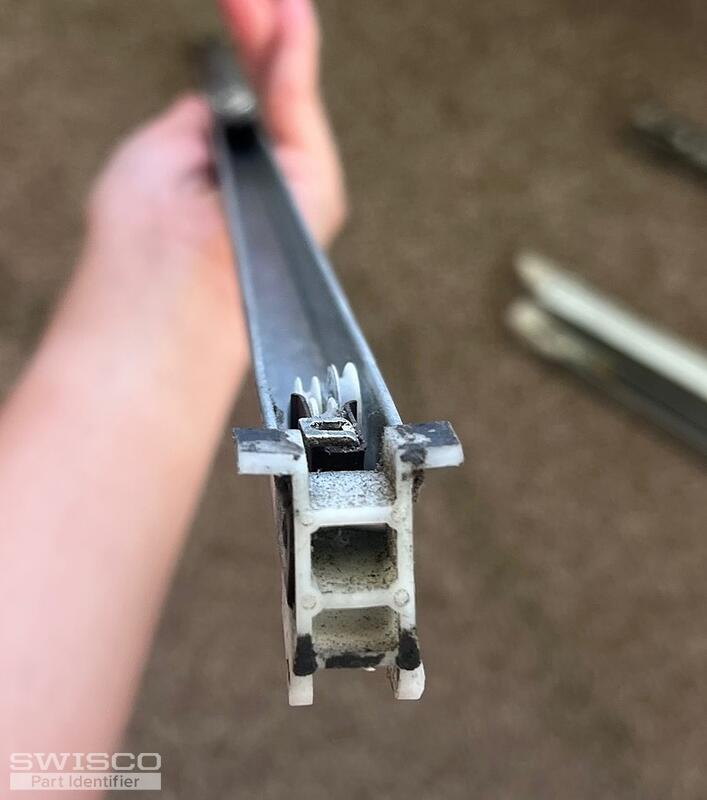

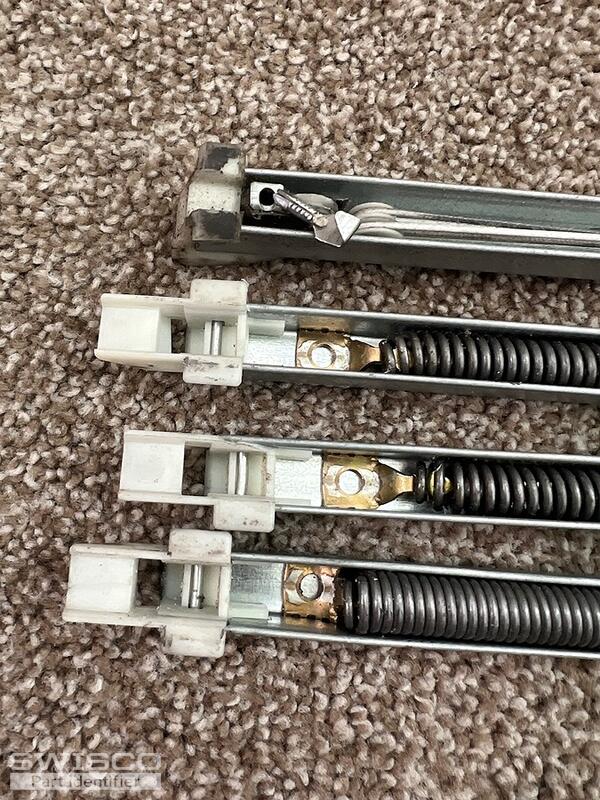

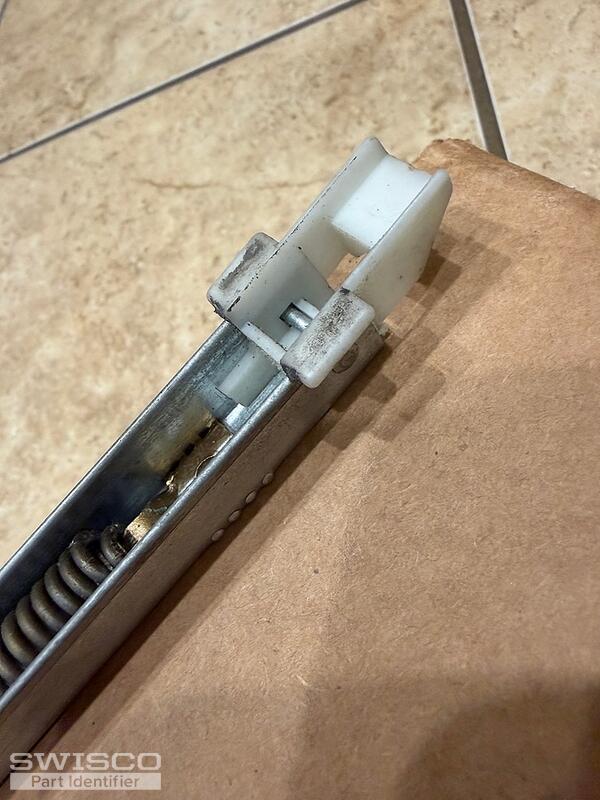

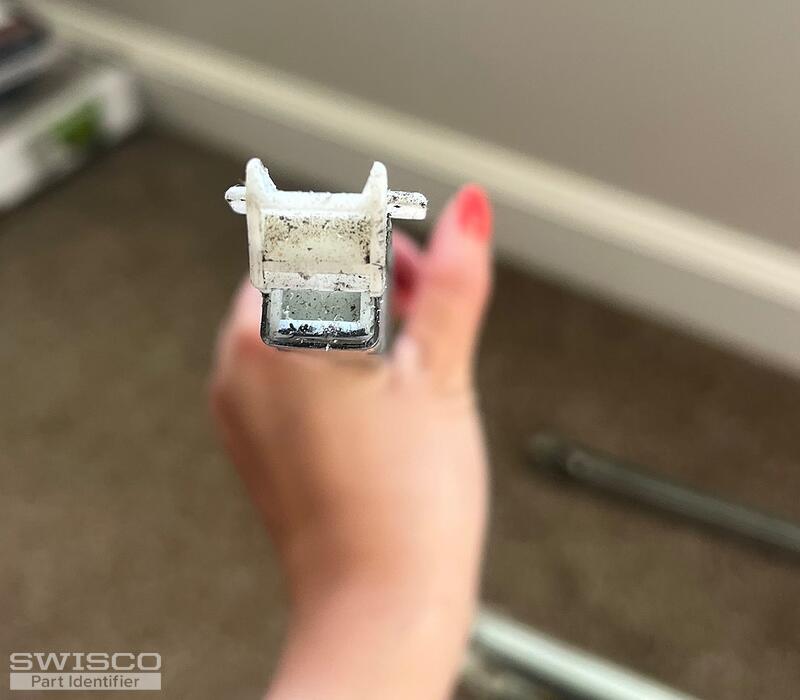

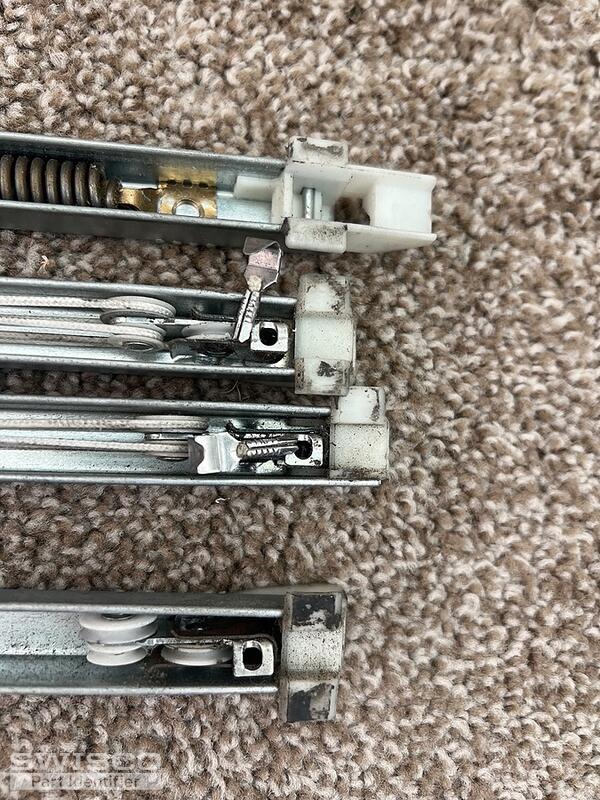

Here are the additional photos.

5 user uploaded images

Bob from SWISCO

Nov 8, 2025 11:43 pm

Thanks for getting back to me. This is likely either an S380-30 or S385-30 Channel Balance, depending on the depth of the bottom nylon shoe. See below. Measure your old balance's shoe depth to see what matches best. For a stamp option choose 2950.

Comparison of the S378, S380 and S385 balance shoes.
