Channel balance
Handy Person from Orlando, FL
May 16, 2018 10:12 pm

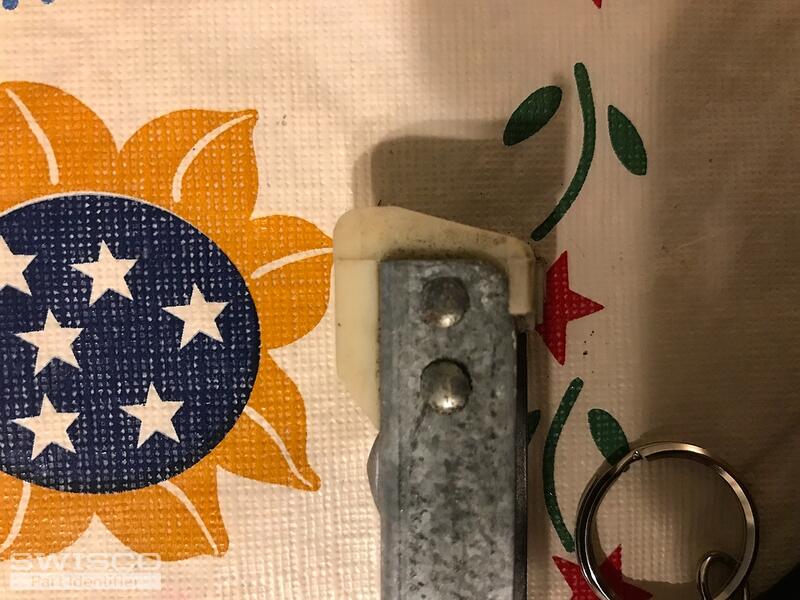

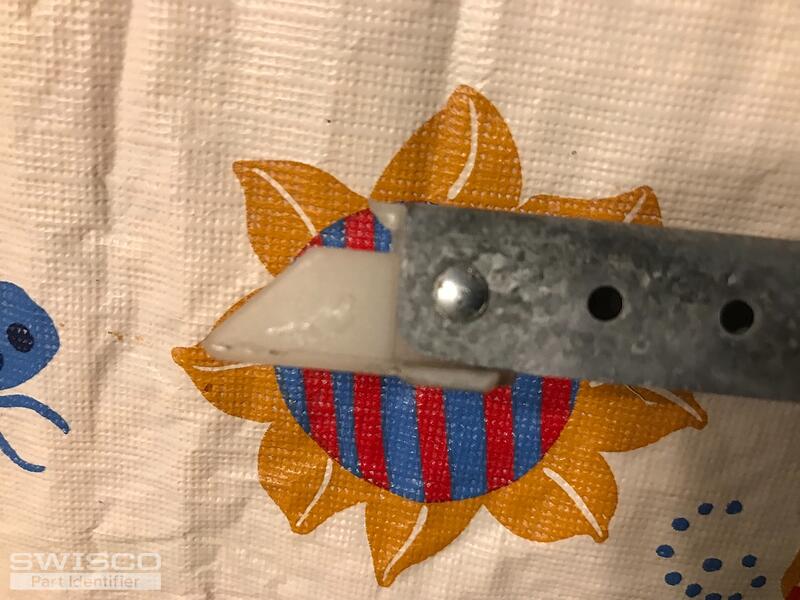

The metal is 29? long and the width at the open side is about 5/8?. I have included pics and measurements of the ends. If you need any more measurements to identify what I need then just let me know. There are no markings on the channel but I tried measuring the weight of window when it was removed and it was 14.2 pounds.
2 user uploaded images
2 Replies
Casey from SWISCO
May 17, 2018 10:30 am
With this combination of attachments, you could have either a S380 or S385 channel balance. You need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. There is a chart on the product page that explains how to choose your option based on the sash weight.
Thank you and let us know if you have any other questions or concerns.
Comparison of 15-004 and 15-005
