S775 Channel balance, but with a hook on top

Handy Person from Ann Arbor mi

Aug 15, 2019 1:46 pm

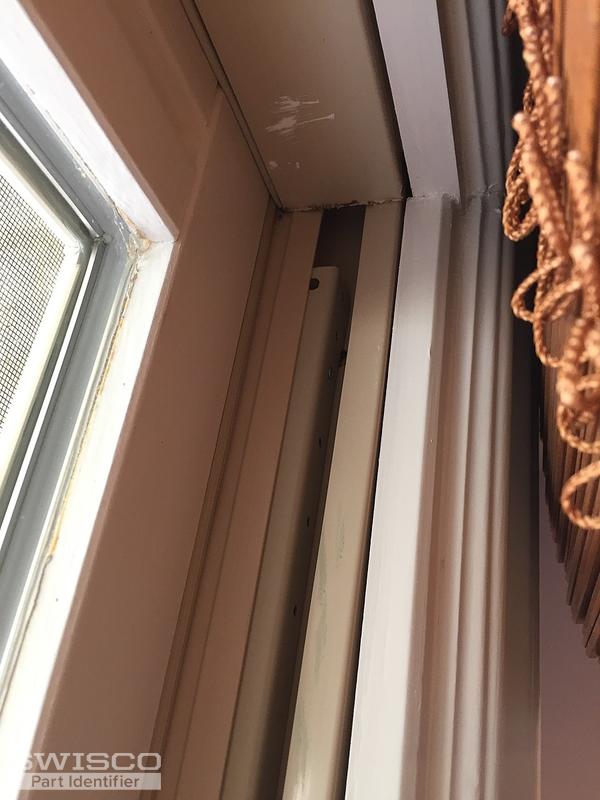

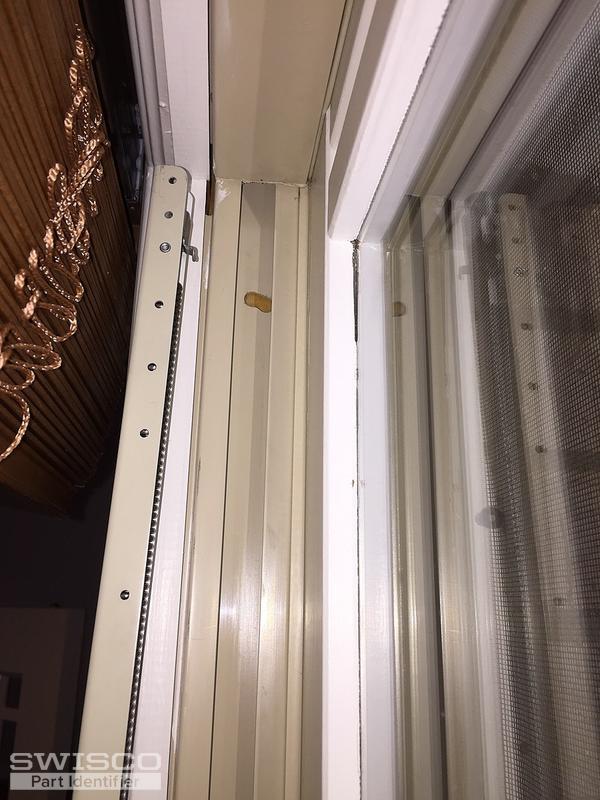

The channel balance looks just like your series 775 with a 1 1/4" bottom shoe, but the top attachment is a hook, not a screw. Balance is 9/16" wide, non ribbed. It seems I can remove the top hook, maybe I can install the hook on the new channel balance provided there's a hole?

3 user uploaded images

11 Replies

Tom from SWISCO

Aug 20, 2019 1:43 pm

I agree, that top attachment is a little peculiar. Please give us a little more time to look into this and we'll get back to you as soon as we can.

Handy Person from Ann Arbor mi

Aug 20, 2019 3:34 pm

Thanks Tom!

Paul from SWISCO

Aug 21, 2019 11:24 am

Could we have you provide us with the length of the metal balance and the stamping/markings on the balance?

Handy Person from Ann Arbor mi

Aug 21, 2019 1:18 pm

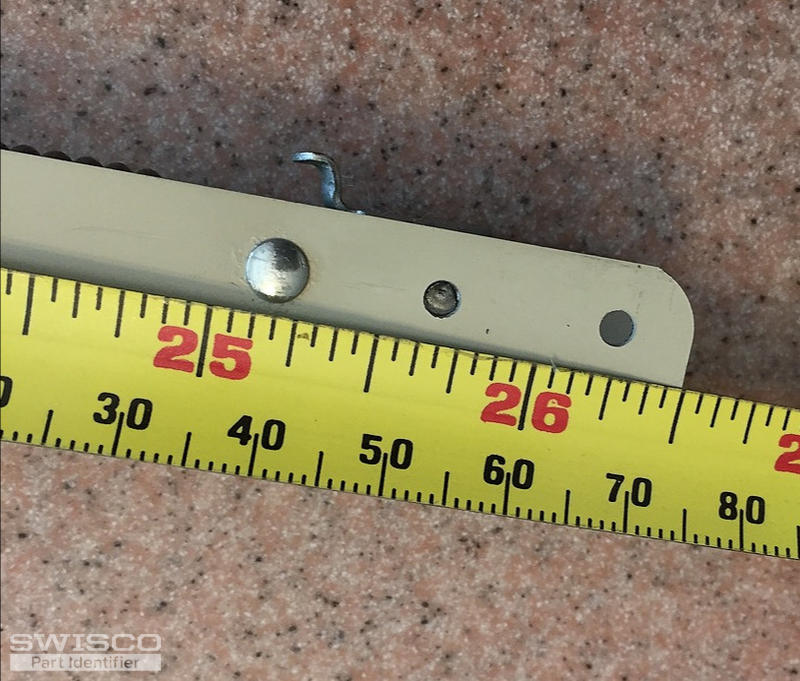

Attached are photos of the stampings, size, and attachment if that helps.

The channel is 26 1/2 inches long

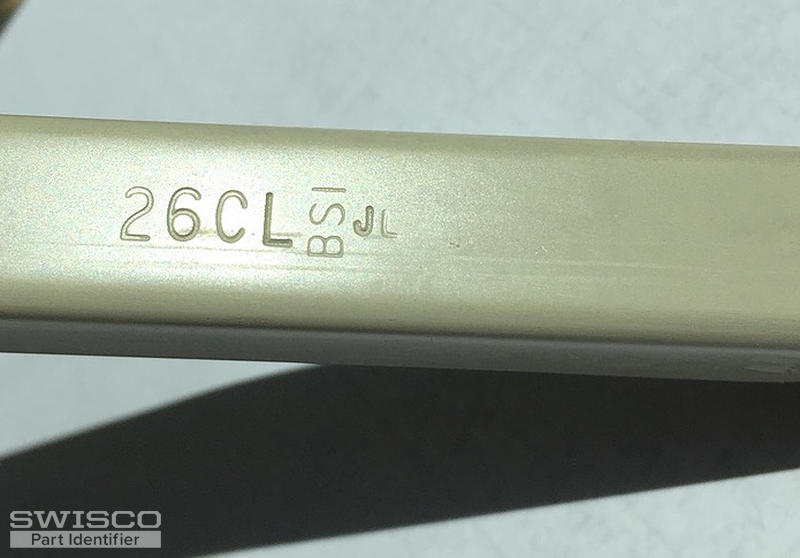

The stampings on the channel are 26CL, then under that is BSI, then under that is JL
Those are the only markings/stampings on the channel

4 user uploaded images

Handy Person from Ann Arbor mi

Aug 29, 2019 12:48 pm

Did you have any luck figuring out what I have and what to use for a replacement? Thanks!!

Paul from SWISCO

Aug 30, 2019 10:25 am

Thank you for your patience. This one has taken a lot of digging. We have learned that your balance is discontinued and no longer made, but we're doing our best to find you something similar that will work. Please bear with us just a little longer as we explore all possible options. I hope to get back to you soon.

Handy Person from Ann Arbor mi

Aug 30, 2019 12:24 pm

Thanks for digging!! Just my luck that they're discontinued?. Looking forward to your solution. Thanks again. I'm still wondering if I can use your new channel balance and install my clip/hook on the new balance, provided the new balance has the appropriate hole at the top for mounting?

Paul from SWISCO

Sep 6, 2019 1:03 pm

Thanks again for waiting. So, I have good news and bad news. The bad news is, this balance is in fact discontinued. The good news is, the manufacturer thinks you can use our S775-27 balance with a 27C stamp as a substitute. After reviewing their info and our own specs, I agree. I think this is your best bet.

There's one catch, though. Our balance installs at the top of the frame using a screw. You will likely have to drill a new hole to get it to install in the track. Let me know what you think.

Handy Person from Ann Arbor mi

Sep 6, 2019 2:32 pm

Thanks Paul. I'll order a couple and see how it works. Thanks for all your help !!

Paul from SWISCO

Sep 9, 2019 7:40 am

My pleasure! Thank you for buying with us and please let us know how they work out!
