Channel balance

A home owner from Sonoma California says:
January 18, 2020
I am replacing the channel balances and sash guides on three windows all the same size and manufacturer.
The opening portion of the window weighs 17.9 pounds.

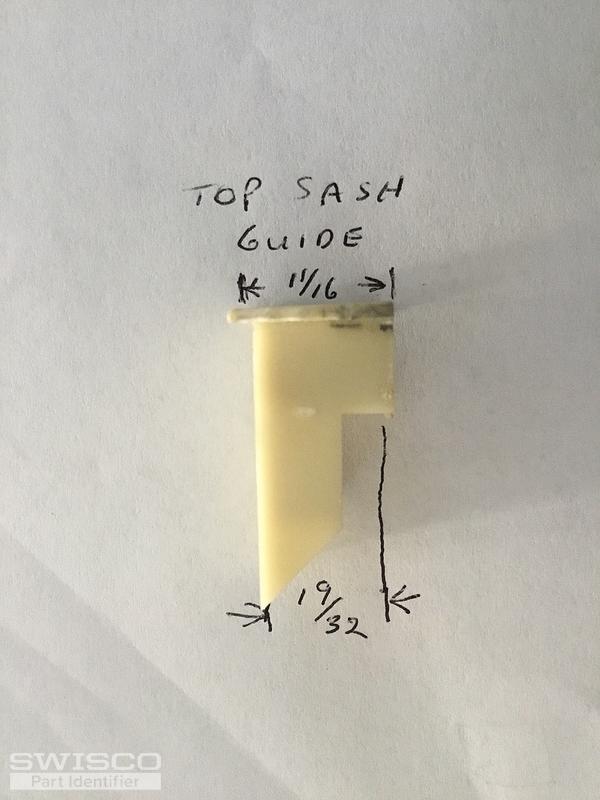

The sash guide part #18-009 looks and measures the same as mine. (See photo)
Channel balance part #S350-28 option 2140 appears to be the right one.
Top guide part #19-002 looks and measures the same as mine. (See photo) ( mine has a broken tab that points outward near the top)
The bottom guide part #15-004 measures the same as mine but looks slightly different. (see photo)
Will this slight discrepancy affect the operation of the window.
If everything is right I will order six sash guides and six channel balances.
Thumbnail of the uploaded file named 6009F9DA-9E0F-4677-B16F-E829379380D9.jpeg
Thumbnail of the uploaded file named 9F6DC7B8-C63E-4719-9D6D-EA7561AD4948.jpeg
Thumbnail of the uploaded file named 562177F8-C9FE-4AD8-BCE5-FA91F4F551F9.jpeg
Thumbnail of the uploaded file named 0D7FC23F-0010-41F8-85A8-602FD4CC9101.jpeg
Profile picture of Tom
Tom from SWISCO responded:
January 22, 2020

Hello! You have a good eye. I think the hardware you picked out will work nicely. I wouldn't worry about the differences in style between your nylon fittings and ours. As long as the dimensions are the same then those differences are minor enough to be ignored. Yours are likely just an older style.
5/8" Top Sash Guide
5/8" Top Sash Guide
18-009
$0.99
28" Series 350 Channel Balance
28" Series 350 Channel Balance
S350-28
$10.97
Channel Balance Top Guide
Channel Balance Top Guide
19-002
$0.74
Winged Channel Balance Shoe, 1-3/32" Depth
Winged Channel Balance Shoe, 1-3/32" Depth
15-004
$0.74
