Channel balance

Home Owner from Haddam, CT

Sep 11, 2020 2:14 pm

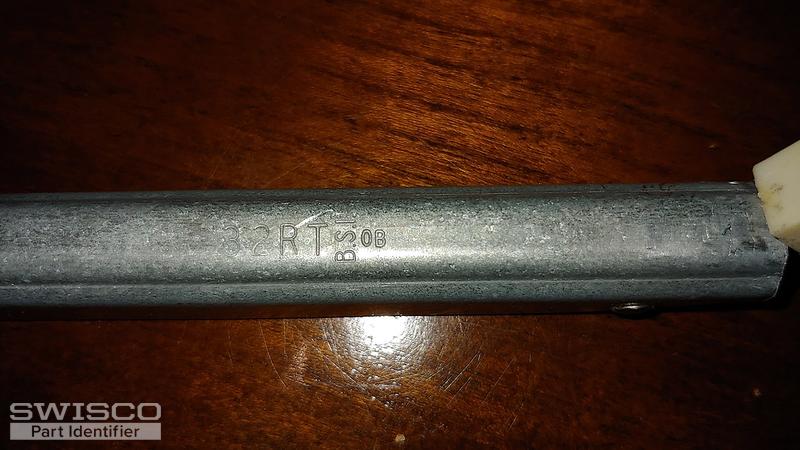

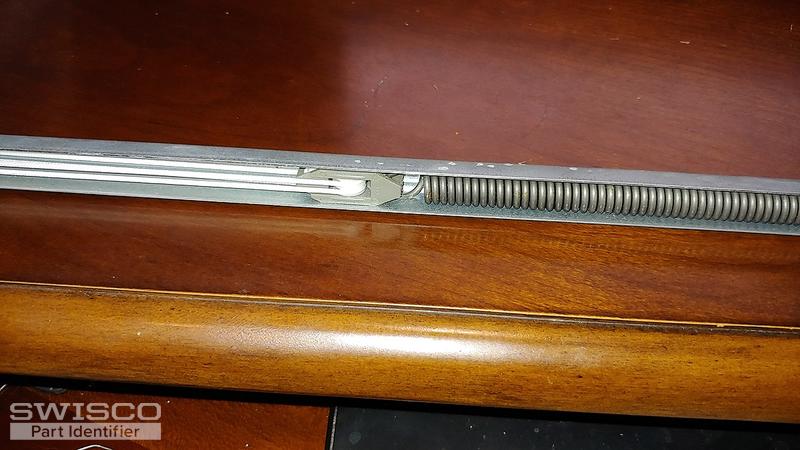

Attached are photos of the Balancer. Dimensions: length 33", width 9/16", depth 5/8", ribbed. Stamped 32RT, B.S.I. 08
Shoe is 1 1/8" x 1" x 3/8"

5 user uploaded images

4 Replies

Bob from SWISCO

Sep 15, 2020 11:11 am

See our S751-33 Ribbed Tilt Channel Balance. You'll need to choose a stamp option, though your stamp code isn't quite like any of ours. You might be able to use 32R, which is for a sash that weighs 15 through 24 lbs. But if in doubt, obtain the exact weight of your window sash.

Home Owner from Haddam, CT

Sep 23, 2020 11:18 am

Thank you for your response. The actual weight of the sash is 26.3 pounds. Would you recommend the S751-33HD?

Bob from SWISCO

Sep 24, 2020 4:19 pm

Thanks for telling me this detail. If the sash weighs just over 26 lbs, then yes, a stamp option of 32HD, which supports a sash that weighs 24 through 29 lbs, makes more sense. Let me know if you have further questions.
