Channel balance

Question

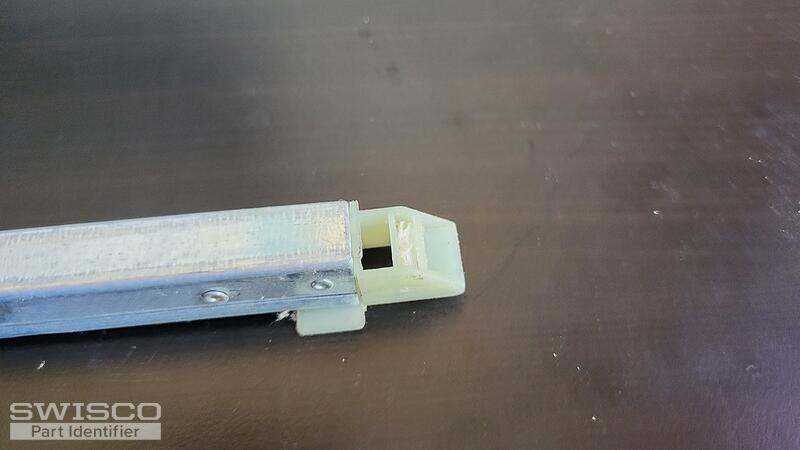

Marking on existing balance is 26-3 ED5 CMC 87

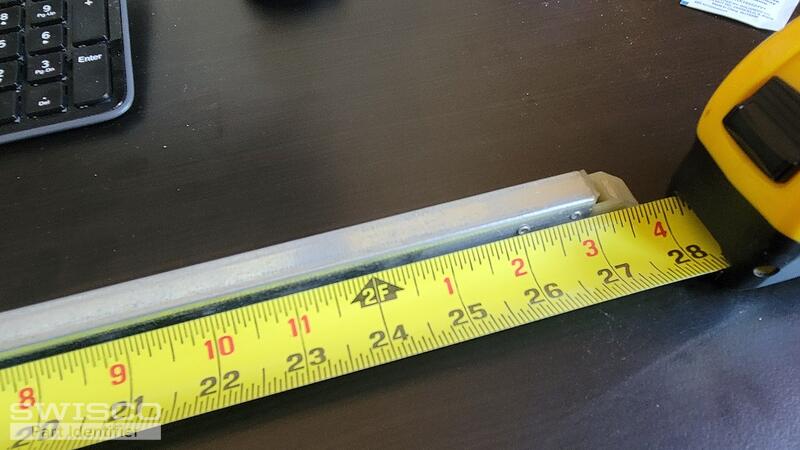

Length of metal is 27 inches with a width of 9/16

Block and tackle with single spring

Casey · Accepted Answer

Hello,

With this combination of attachments, you could have either an S380-27 or S385-27 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2630 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
