Channel balance

Question

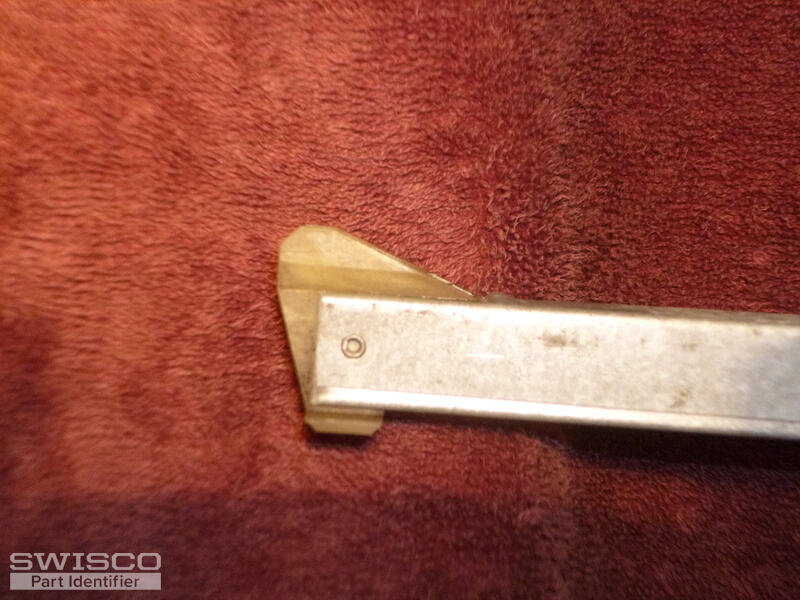

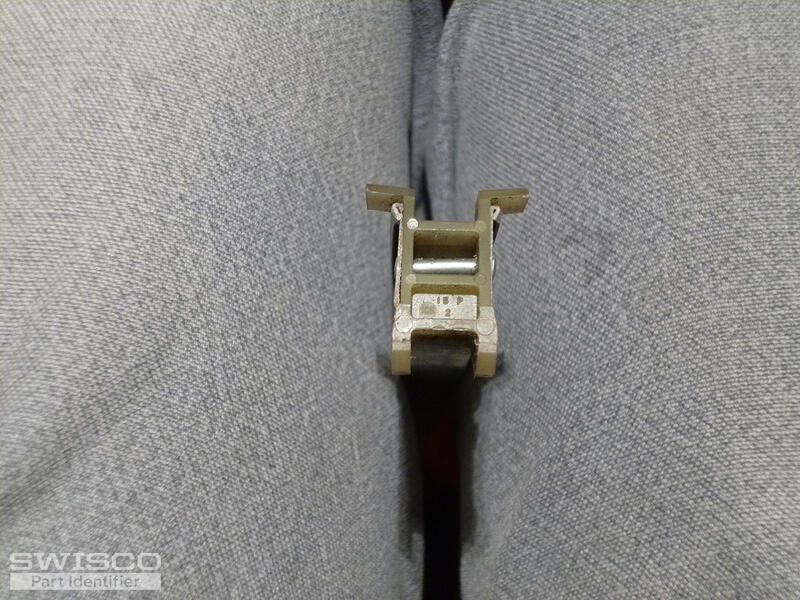

Item measures 1/2 by 23 inches (metal part)
Is marked with 22 3 LR Caldwell.
Came off an Insulate brand single hung window.
Pulley cord is toast.
Thanks.

Emily · Accepted Answer

Hi there!

With this combination of attachments, you could have either an S380-23 or S385-23 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need a spring strength option of 2230.

If you have any further questions just let us know.

Comparison of the S380 and S385 balance shoes.
