Channel balance

A handy person from San diego says:
July 11, 2021

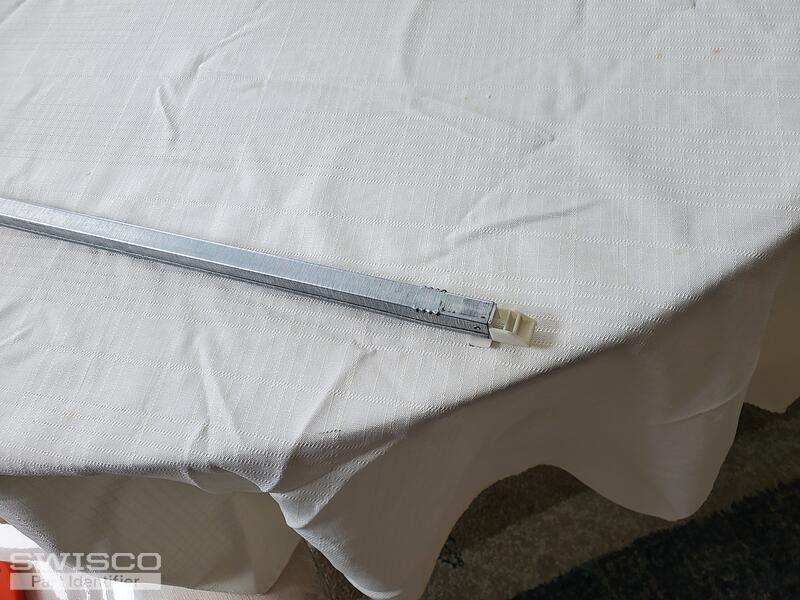

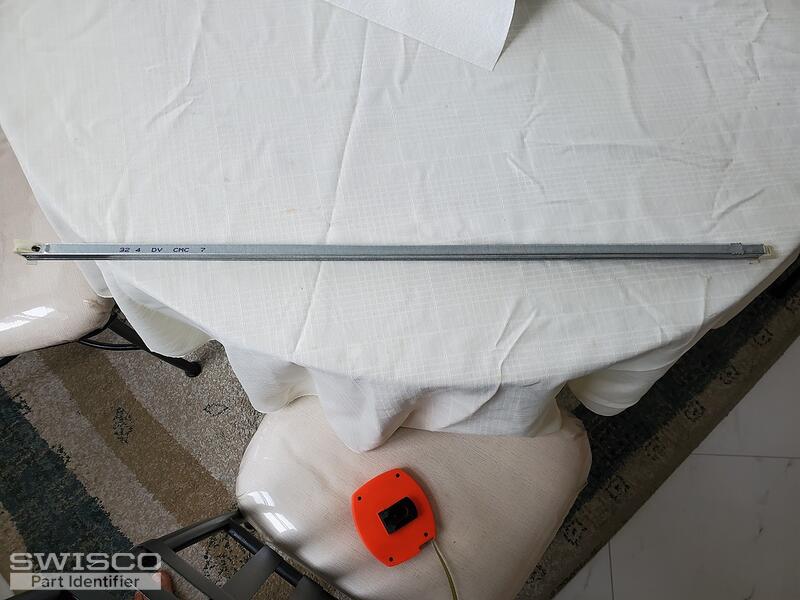

Hi, one of the channel balances on my sliding window need to be replaced. The cable has broken off.

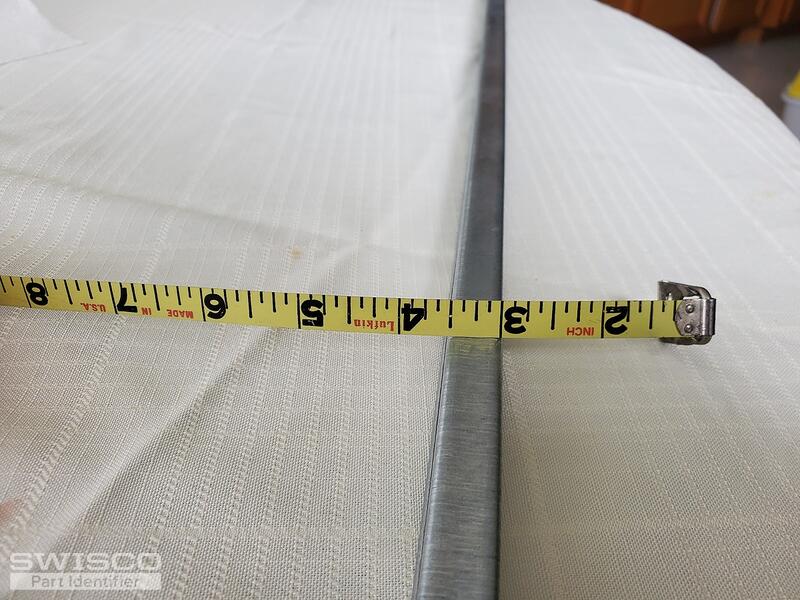

Looks like the width is 1/2 inch.

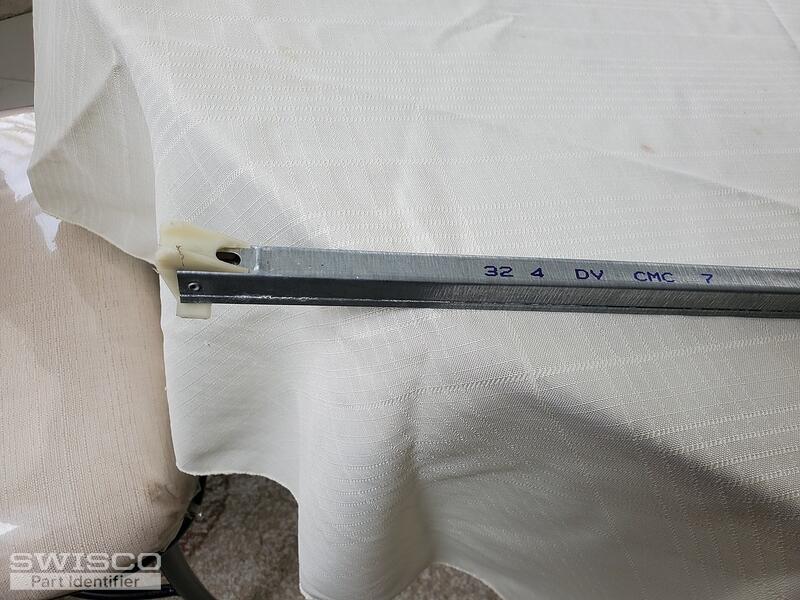

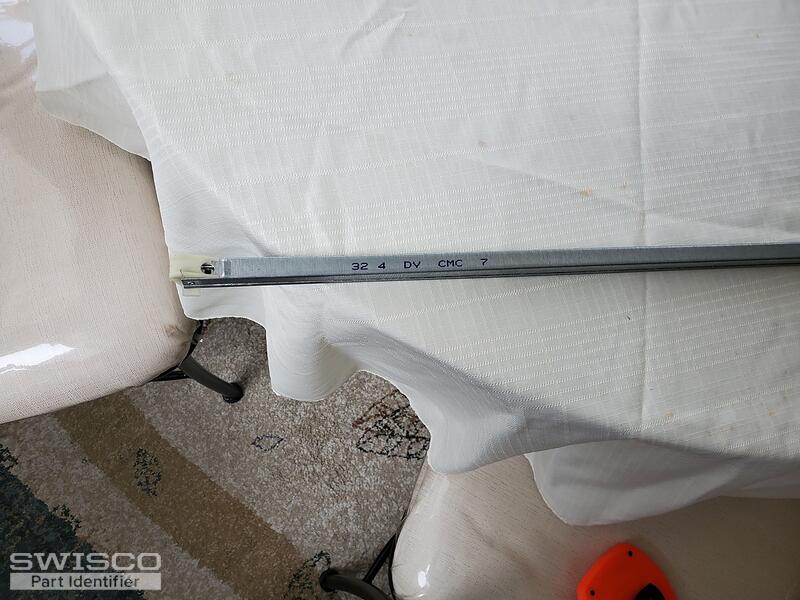

There's a print that says "32 4 DV CMC 7" on the rod.

Thanks
Thumbnail of the uploaded file named 20210711_075553.jpg
Thumbnail of the uploaded file named 20210711_075522.jpg
Thumbnail of the uploaded file named 20210711_075519.jpg
Thumbnail of the uploaded file named 20210711_075515.jpg
Thumbnail of the uploaded file named 20210711_075511.jpg
Profile picture of Bob
Bob from SWISCO responded:
July 15, 2021

Thanks for posting. This looks like either an S380-33 or S385-33 Channel Balances. The only difference between these two balances is the depth of the bottom nylon shoe, or the heel-to-toe measurement, so compare both with your old hardware to see what matches best. For a new stamp option choose 3240.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
33" Series 380 Channel Balance
33" Series 380 Channel Balance
S380-33
$11.52
33" Series 385 Channel Balance
33" Series 385 Channel Balance
S385-33
$11.52
