Channel balance

A home owner from Bartlett, IL says:
April 21, 2022
Apologize I do not have a photo of this installed as it fell out of my lower sash when opening my window. I have two large Hurd Vinyl clad windows I'm no longer able to open due to this hardware failing. Would be looking to replace on both windows to get each lower sash working for the summer! Struggling to identify a good replacement on my own. Markings are uploaded with one of the photos. Metal portion (without plastic end pieces) is 33". String that acts as the pulley with the spring appears to be what snapped.
Thumbnail of the uploaded file named 2D510BD1-BB23-42C9-B6CD-386B59058E47.jpeg
Thumbnail of the uploaded file named 46F4996A-BFB5-4E11-83E2-7B1A8F3CD00E.jpeg
Thumbnail of the uploaded file named 29F0A537-1E18-466D-B278-BDDBB5B94E8D.jpeg

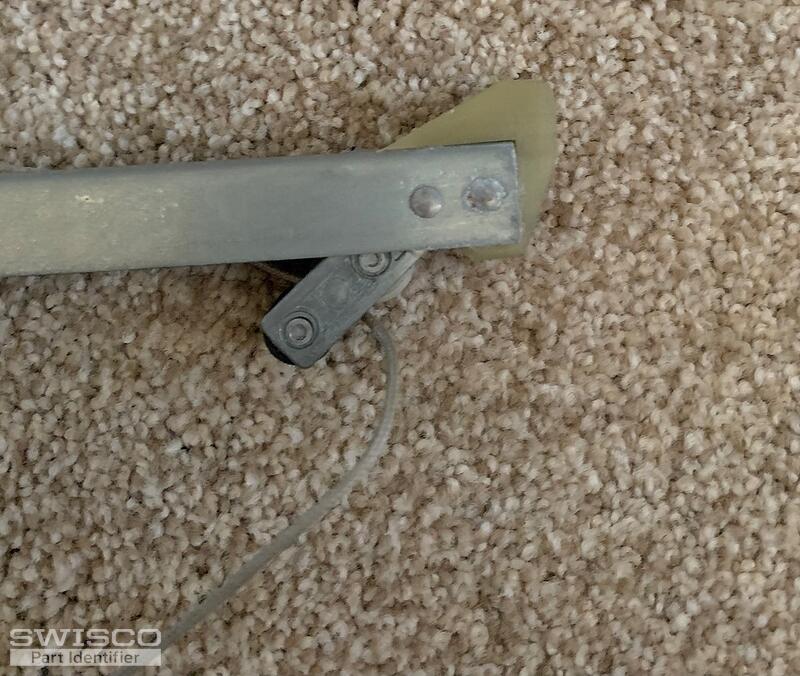

Thumbnail of the uploaded file named D813FC91-A261-43C7-B2BE-B59246DB3A18.jpeg

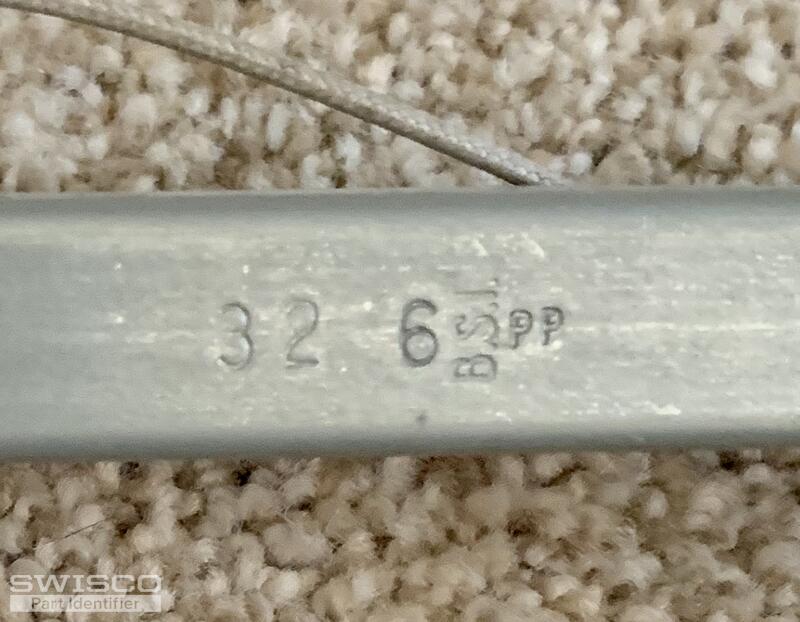

Thumbnail of the uploaded file named BE75F6D9-5B07-4701-9034-7DB172AD384E.jpeg
Profile picture of Casey
Casey from SWISCO responded:
April 25, 2022

Hello,

It'd hard to tell if your top fitting has wings or not. If not, you could have either our S351-33, with a 15-002 bottom attachment, or S390-33, with a 15-001 bottom attachment. Take a look at the image below to determine which balance you'll need. You'll also need a 3260 spring strength option for your replacement balances. Thank you!

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
33" Series 351 Channel Balance
33" Series 351 Channel Balance
S351-33
$11.52
33" Series 390 Channel Balance
33" Series 390 Channel Balance
S390-33
$11.52
