Channel balance

A quick learner from Jax, Fl says:
May 29, 2022

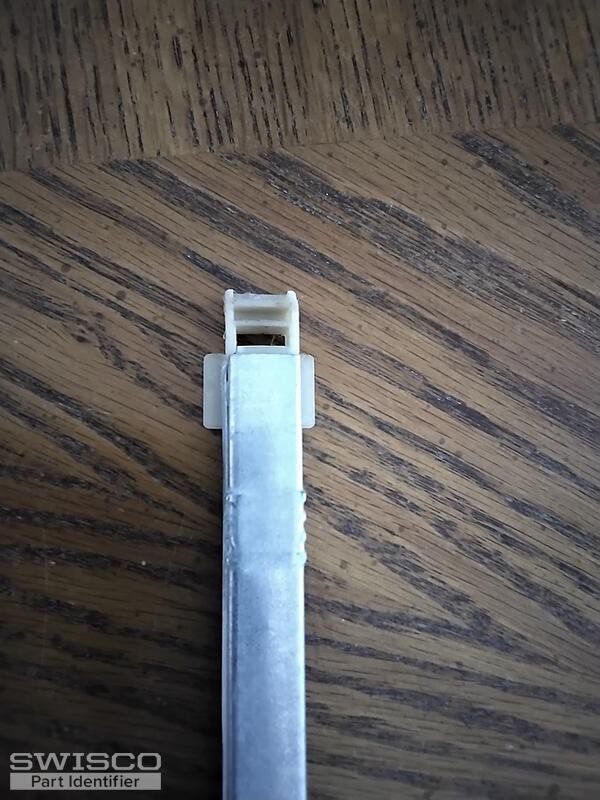

I need to replace to 30 inch by 9/16 channel balances. Can you help me identify the part I need to order using this information? Thanks
Thumbnail of the uploaded file named 20220529_105539.jpg
Thumbnail of the uploaded file named 20220529_105529.jpg
Thumbnail of the uploaded file named 20220529_105519.jpg
Thumbnail of the uploaded file named 20220529_105512.jpg
Profile picture of Emily
Emily from SWISCO responded:
June 1, 2022

Hi there!

We sure can. Your balance resembles either our S380-30 or S385-30, depending on the depth of your bottom shoe. The Series 380 has a 1" deep shoe and the Series 385 has a 1-3/32" shoe. You'll need to measure as shown below to see which one matches up. You will also need the 2930 spring strength option, based on your 29 3 stamp.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
30" Series 380 Channel Balance
30" Series 380 Channel Balance
S380-30
$11.30
30" Series 385 Channel Balance
30" Series 385 Channel Balance
S385-30
$11.30
