Channel balance

Handy Person from Delray Beach, Florida
Hi,
Don't know how many I will need.
I will eventually need 2 types:

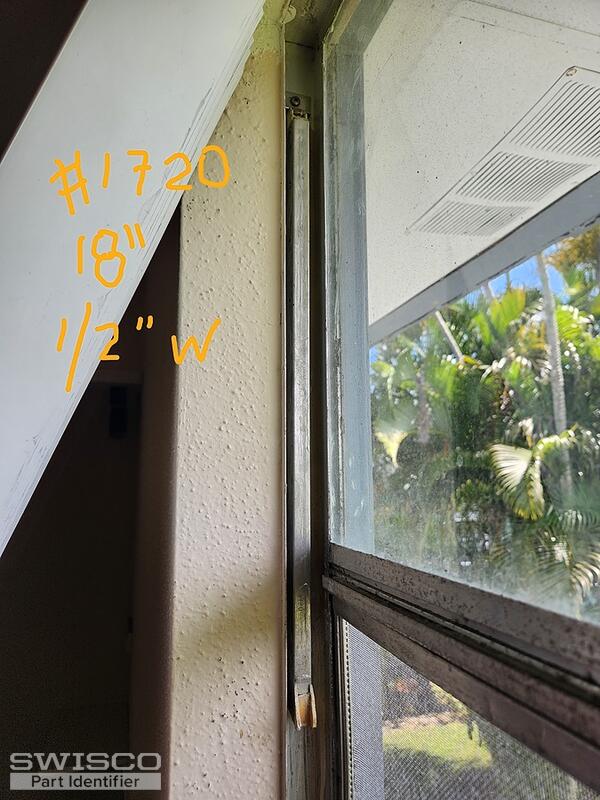

#1720 18"L X 1/2"W
#2020 (I believe it's 20"H) X 1/2" W

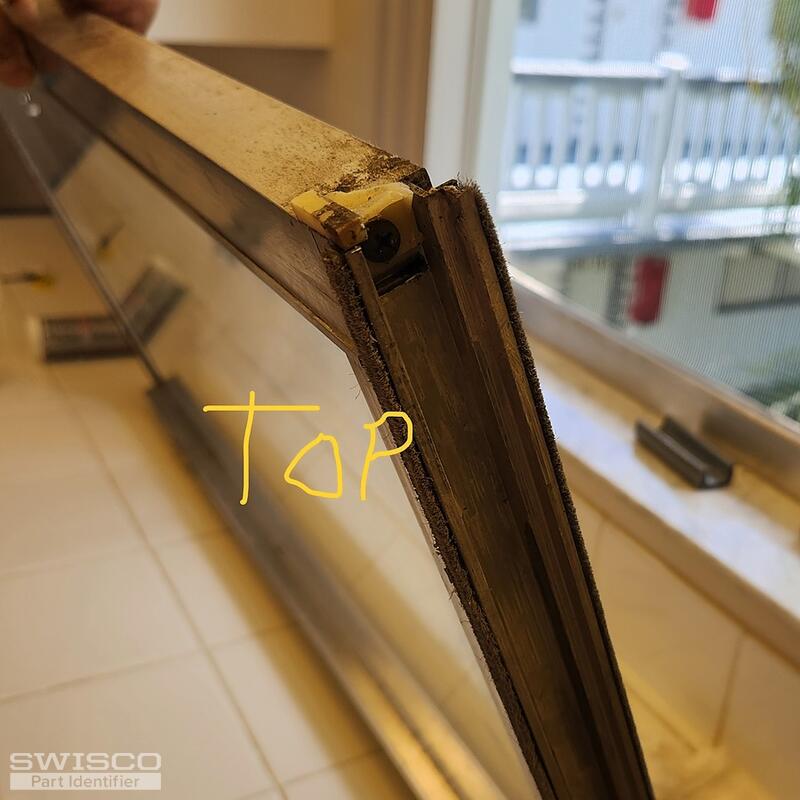

Question I can't see exctly the type of guides they are. Will Are they critical to have?
What would the cost be for each, and guides.
Please let me know if you have any questions.

Thank you!
Claudio

5 user uploaded images
4 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Hey Claudio. Assuming the nylon attachments on both ends of the metal channel are the same for both sets of balances, then I think the 18" balances are either our S351-18 or S390-18, with a stamp option of 1720; the balances stamped 2020 should be 21" long (not including the end attachments), and will be either the S351-21 or S390-21, with a stamp option of 2020. The difference between the Series 351 and Series 390 is the depth of the bottom nylon shoe. See the diagram below for reference. Measure your old balance's shoe to see what matches best.

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.

I believe the Top Sash Guides might be the 18-187 pair, but please compare with undamaged guides to confirm. Let me know if you have further questions.

Alternate view of 18-187
Alternate view of 18-187
Alternate view of 18-187
Alternate view of 18-187

Handy Person from Delray Beach, Florida
Hi Bob, thanks for the good info. I will do a little more investigation and see what I come up with.

Thanks for the assistance!

Claudio
Bob
Bob from SWISCO
SWISCO
Expert

Sounds like a plan! I was happy to help of course, but please reach out if we can be of any further assistance.
