Channel balance

Start a new Discussion

Handy Person from Destin, FL

Aug 8, 2024 11:43 am

Side say 3275. Can't seem to find. Thanks!

3 user uploaded images

5 Replies

Casey from SWISCO

Aug 9, 2024 2:56 pm

Hello,

We can't be sure without seeing an intact top fitting from an undamaged balance but it looks like you could have either the S380-33 or S385-33 channel balance. Make sure to confirm that the 19-005 top fitting matches an intact balance. You’ll also need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

Note that you'll need 3275 spring strength options for your replacement balances. Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.

Handy Person from Destin, FL

Sep 5, 2024 7:08 pm

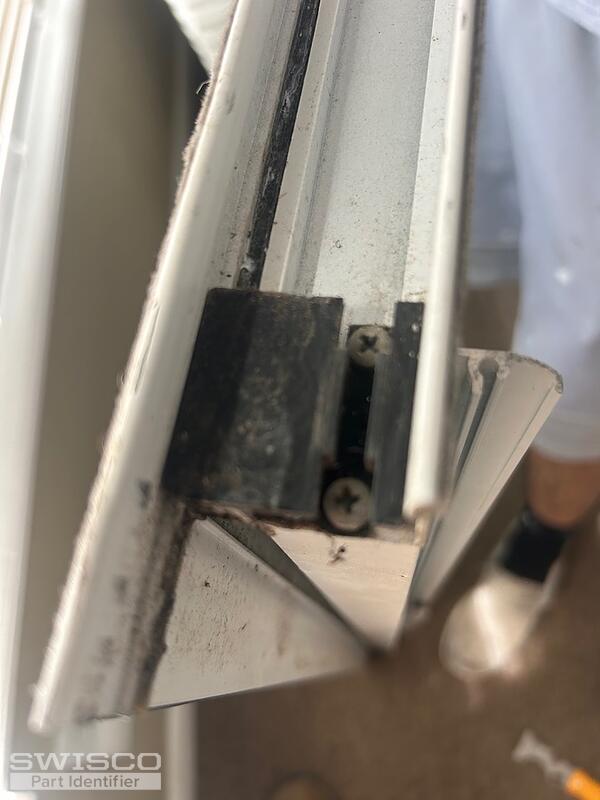

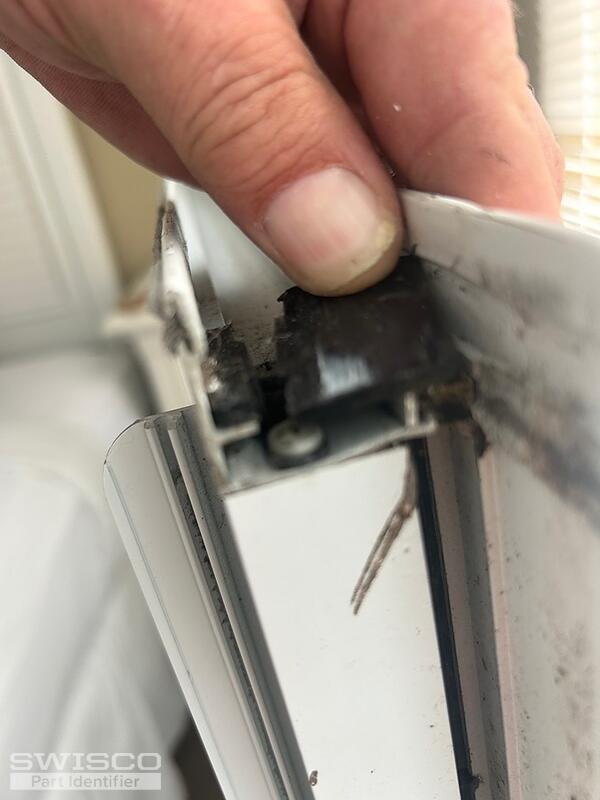

Went to put the channel balances on and I think the bottom clips must be broken - the right one is obviously broken. Couldnt get them to latch. Can you help?

2 user uploaded images

Casey from SWISCO

Sep 6, 2024 3:52 pm

Hello,

I do not recognize this clip at first sight. I am going to have one of our senior experts review further and will be in contact as soon as possible. Thank you for your patience!

Paul from SWISCO

Sep 9, 2024 10:16 am

Unfortunately, we were not able to locate a suitable replacement for the brake clip shown in your photos. I'm sorry that we won't be able to assist with this part of your repair but please let us know if you have any other hardware questions.
