Channel balance

Start a new Discussion

Quick Learner from Henderson NV

Aug 25, 2024 12:26 am

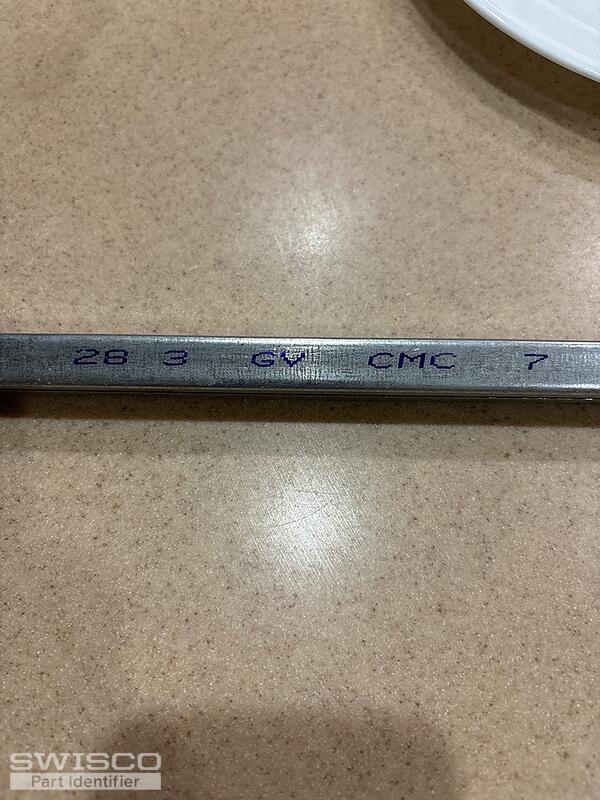

28 3 GV CMC 7 needed, I will replace 2

1 user uploaded image

5 Replies

Quick Learner from Henderson NV

Aug 25, 2024 12:37 am

29 inch channel balance 1/2" w x 5/8"d

3 user uploaded images

Lauren from SWISCO

Aug 28, 2024 9:24 am

Hello, thank you for posting,

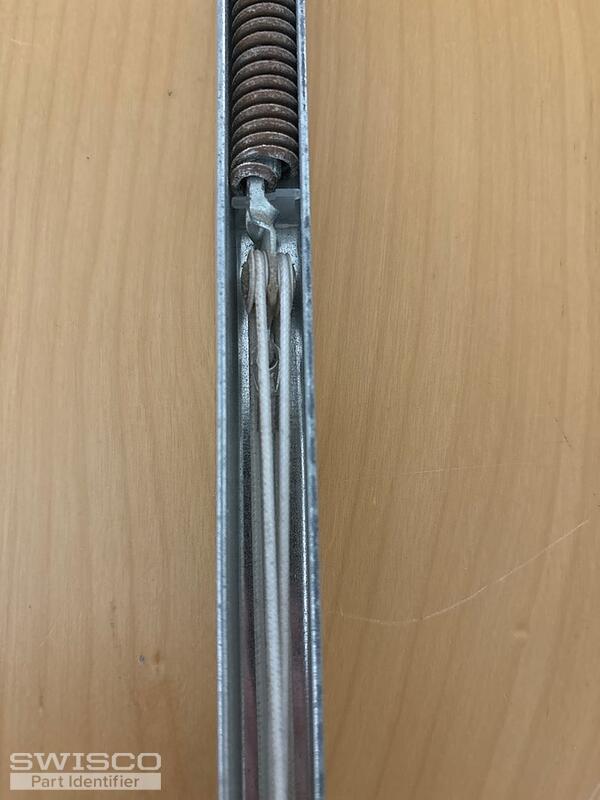

We can assist with a replacement balance, but to confirm the correct series, we will need to a picture of the inside of the metal channel where we can view the connection point between the spring and pulley system. From there we can determine the right fit for your window. Thank you!

Quick Learner from Henderson NV

Aug 28, 2024 1:54 pm

Like this?

1 user uploaded image

Lauren from SWISCO

Aug 28, 2024 2:10 pm

Yes, perfect thank you!

Please review the S395-29 channel balance with a 2830 stamp option as a replacement. Let us know if you have any additional questions!
