Channel balance

Question

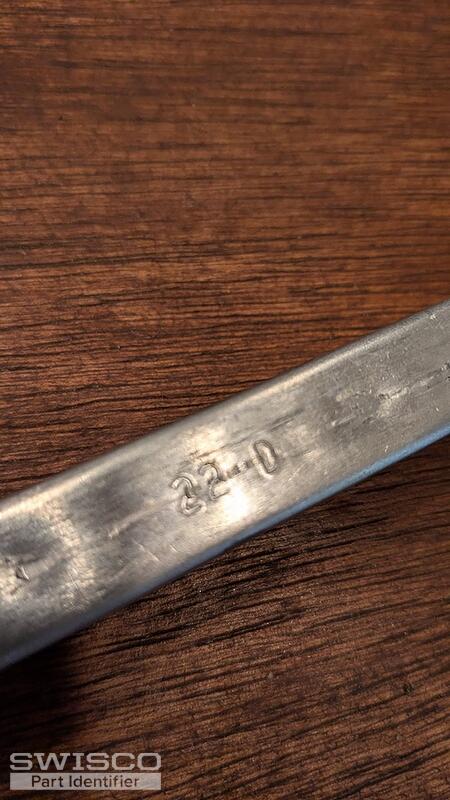

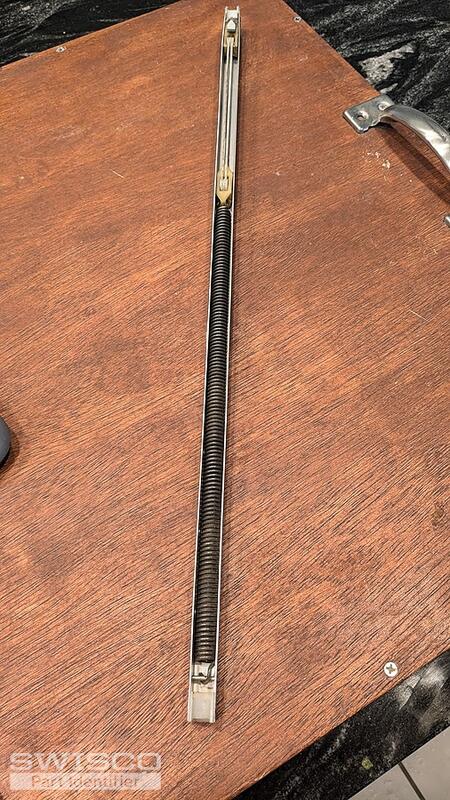

Hi - thank you for your help, I couldn't quite match these up based on the photos. Metal channel length is 23", the stamp shows 22 D. If you have these available I would need 4 of them.

thank you

Shawn

Lauren · Accepted Answer

Hi Shawn, thank you for posting,

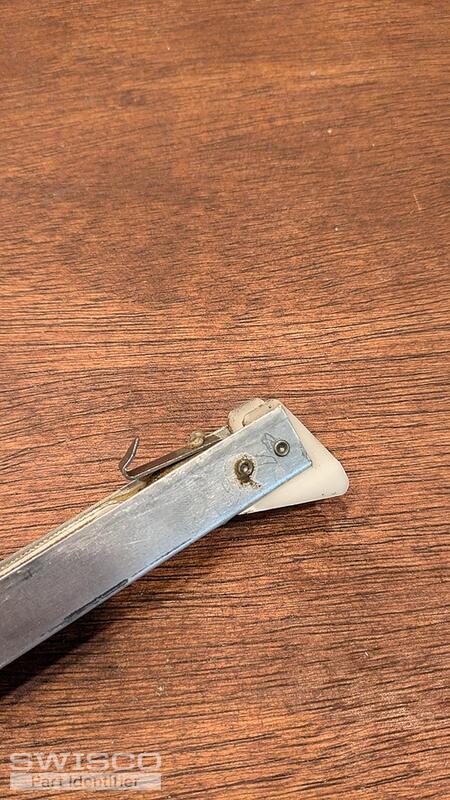

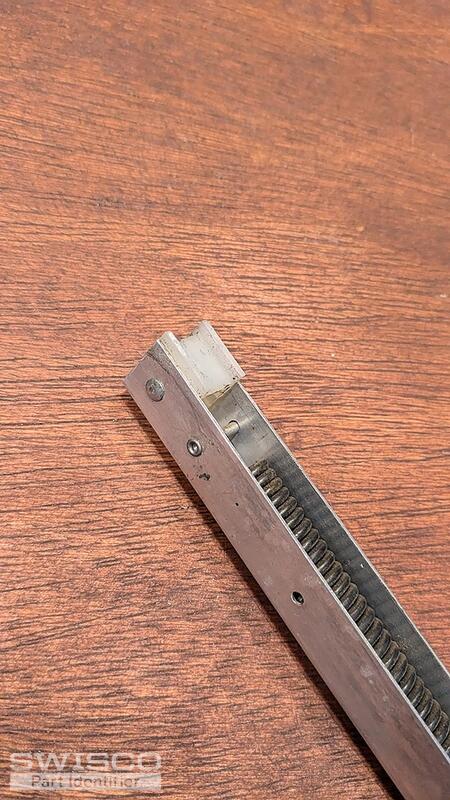

Your top attachment appears to be the 19-011 style, which is not available as a stock configuration on our site. Please review the dimensions below to confirm a good fit! Your shoe would either be the 15-001 or 15-002.

This configuration would require a custom order to assemble for you.

Please let me know which bottom shoe you have and we can move forward with pricing.

A 22D stamp should translate to a 2240 spring strength stamp option that can support a 19 to 23 lb window sash. I recommend weighing the sash to confirm this range as custom orders are nonrefundable.

Alternate image for 19-011

Comparison of 15-001 & 15-002
