Channel balance

Start a new Discussion

Home Owner from Florida, USA

Mar 3, 2025 11:29 am

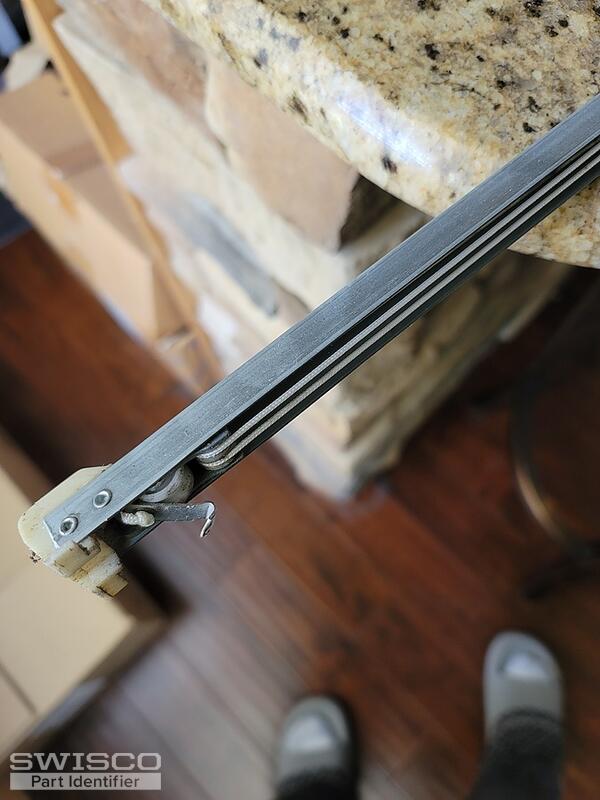

Balance width is 5/8 the depth of bottom shoe is 7/8
The stamp reads 28b usb

4 user uploaded images

2 Replies

Jasmine from SWISCO

Mar 4, 2025 3:02 pm

Thanks for posting! You window balance can likely be replaced with the S378-29 Channel Balance. Be sure to double check that the length of the channel (excluding the attachments) is 29".

You can use likely use the 2820 stamp option, which will support a sash weighing 12 to 16lbs. It may be a good idea to double check the sash weight as well.

Close up view of the S378 balance shoe
