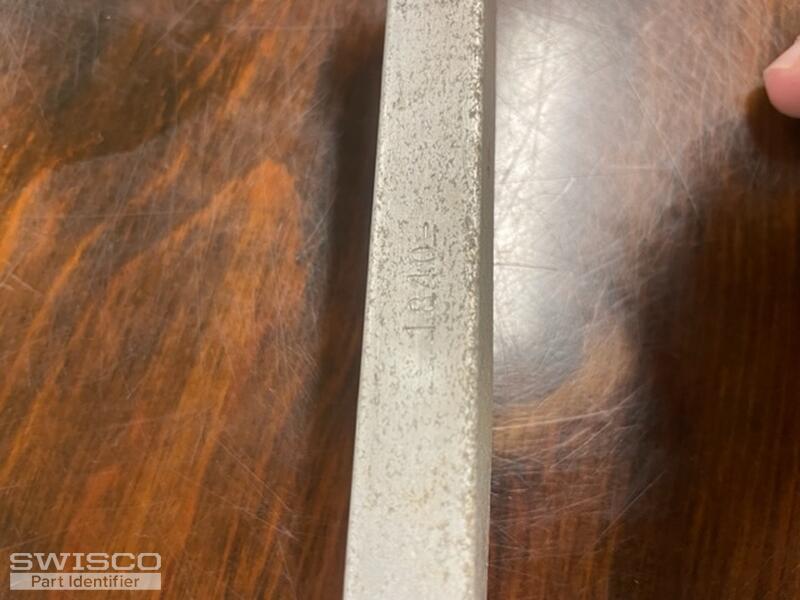

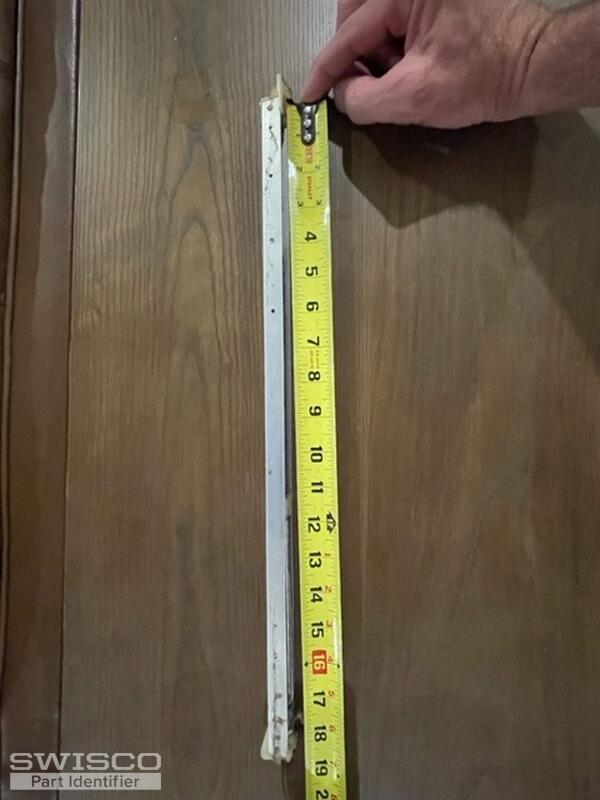

Good afternoon, can you please help me identify these channel balances and point me in the right direction? they are 18.5 inches long (not including plastic end pieces) and the only marking I can find reads "1840-" They appear to be just over 1/2" wide. Please let me know if you require any additional information. Thanks!
-Luke
Channel balance ID 1840
Handy Person from Vero Beach, FL 32960
Sep 10, 2024 4:13 pm
5 user uploaded images
4 Replies
Casey from SWISCO
Sep 13, 2024 9:02 am
Hello,
We'd be happy to help but we'll need to confirm some details to confirm the correct replacements. First, please confirm if the specifications of your top fitting match the 19-018 or 19-041 shown below.
Alternate view of 19-018
View of the opposite side of 19-041
Dimensions for 19-041

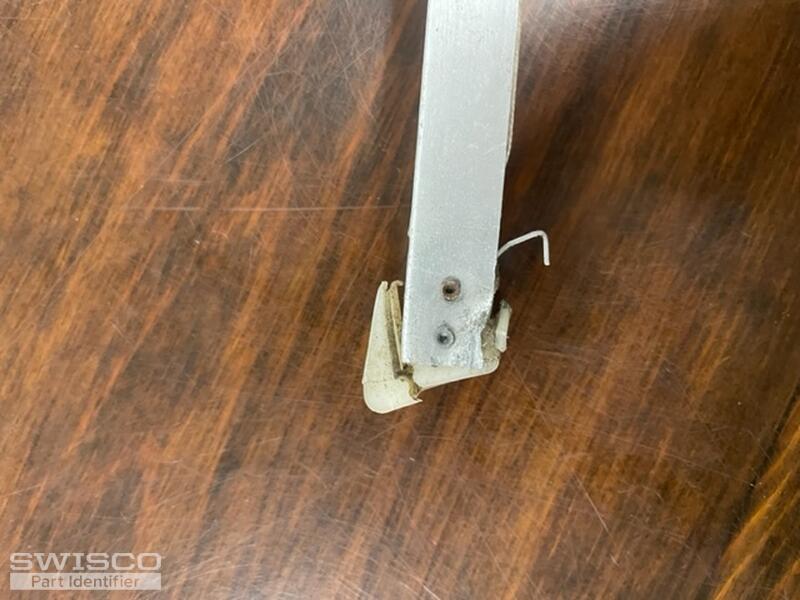

We'll also need to know if the depth of your bottom fitting matches the 15-004 or 15-005.
Comparison of 15-004 and 15-005
Lastly, I'd recommend double-checking the length of your metal channel since the 1840 stamp would generally indicate that the balance would measure 19" long without the end fittings. If your channel measures exactly 18-1/2" long, the balances would need to be custom ordered. Please confirm the number of balances you need, with the minimum being two. Thank you.
Handy Person from Vero Beach, FL 32960
Sep 15, 2024 11:04 pm

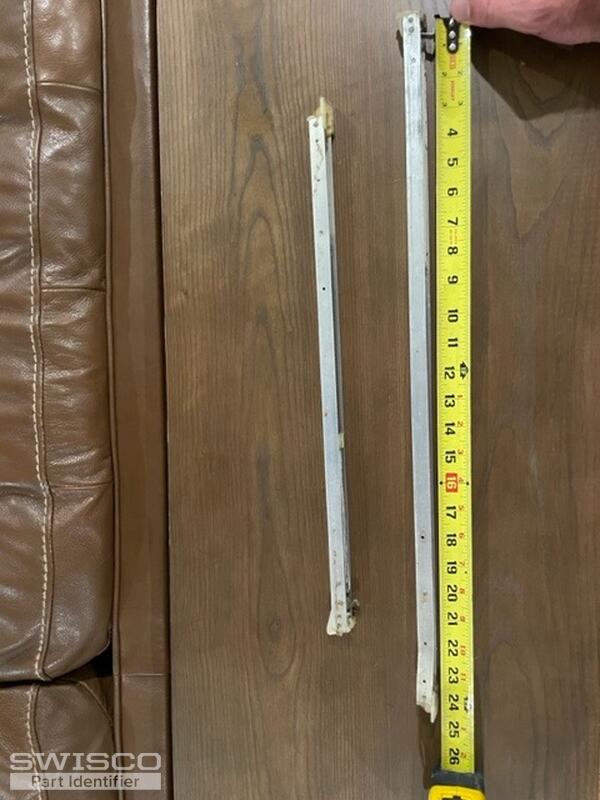

good evening, thank you for your reply. The end pieces appear to be 19-018 and 15-005. Unfortunately they do appear to be 18 1/2" long. Will the closest "in stock" size that you carry still work even if there is some loss of range of the window? Will it add a substantial amount of money to order 18 1/2" ones? I also have another size in my house stamped "23-30-" that measure 24" long but they are otherwise identical. I will need 4 sets of each type (16 balances total). Thanks!
-Luke
-Luke
2 user uploaded images
Casey from SWISCO
Sep 17, 2024 9:20 am
Thanks for getting back to us. We just sent over an order link and price quote for eight 18-1/2" balances for you to review.
As for the 24" balances, see the S377-24 (2330) balances, which are available as stock items directly on our website.
