Channel balance abs sash guide

A quick learner from Texas says:
Looking for replacement channel balance and sash guide. The window weighs 22.8 lbs, the balance has 27-4 on it, but no other identifiers. The length of the balance is 29" top to bottom.

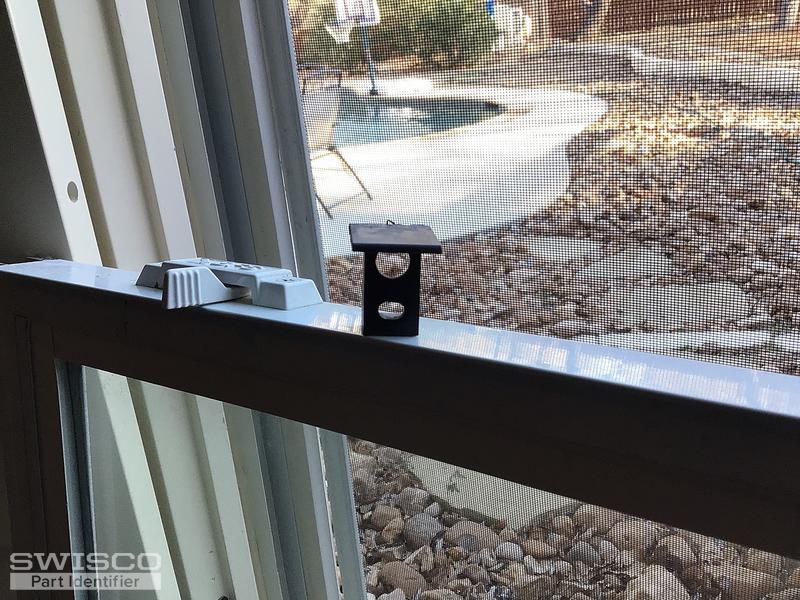

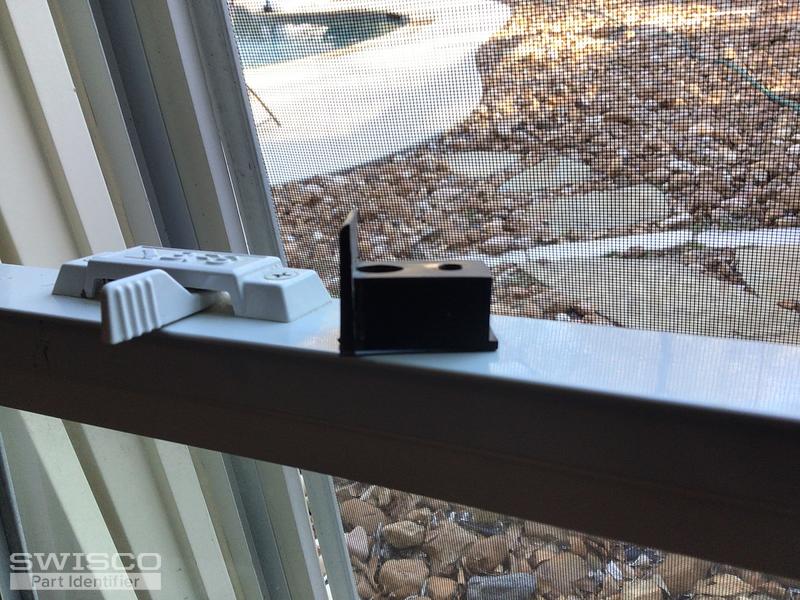

The guide measures 1" in length, 1" top: front to back and 7/8" side to side. Thank you.

Eric
Thumbnail of the uploaded file named 1CE1D7A3-E4C9-4BC5-A6DB-6A95F6732ACD.jpeg
Thumbnail of the uploaded file named 76528CB5-B75F-41FE-86D1-2A971116D200.jpeg
Thumbnail of the uploaded file named DA7C29CE-A6A2-461B-897B-7FF38FF21904.jpeg
Thumbnail of the uploaded file named 2BAB3C20-2A09-4144-A9FC-263186E59904.jpeg
Thumbnail of the uploaded file named C7EBBCB8-4206-4ABD-B291-2A7AD1E03617.jpeg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

Your channel balance resembles our S395-28 with a 2740 spring strength option.

Unfortunately, I don't recognize your top sash guide but I'm going to have one of our senior experts take a look and see if we can offer a suitable replacement. Thank you!

Profile picture of Paul
Paul from SWISCO responded:

Take a look and compare the dimensions of our 18-174 top sash guide to yours.

A quick learner from Texas says:
That will work! Thank you
