Channel balance bathroom window

A home owner from Las Vegas, Nevada says:
1/2in width
16in length

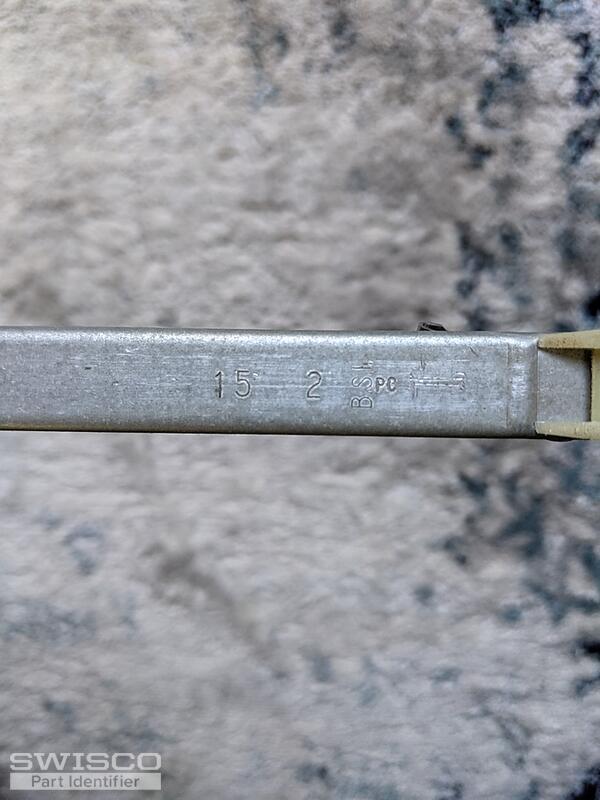

Markings 15 2 BS PC

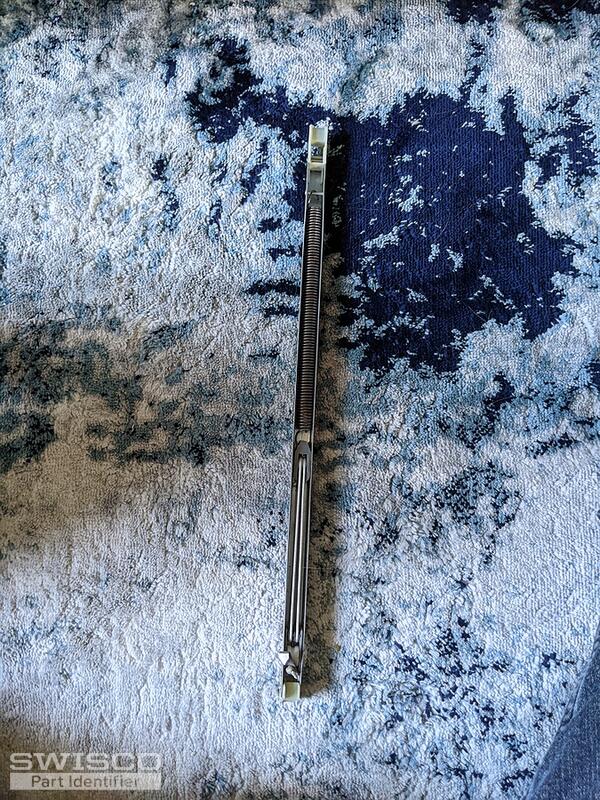

Thumbnail of the uploaded file named PXL_20210525_003701873.MP.jpg

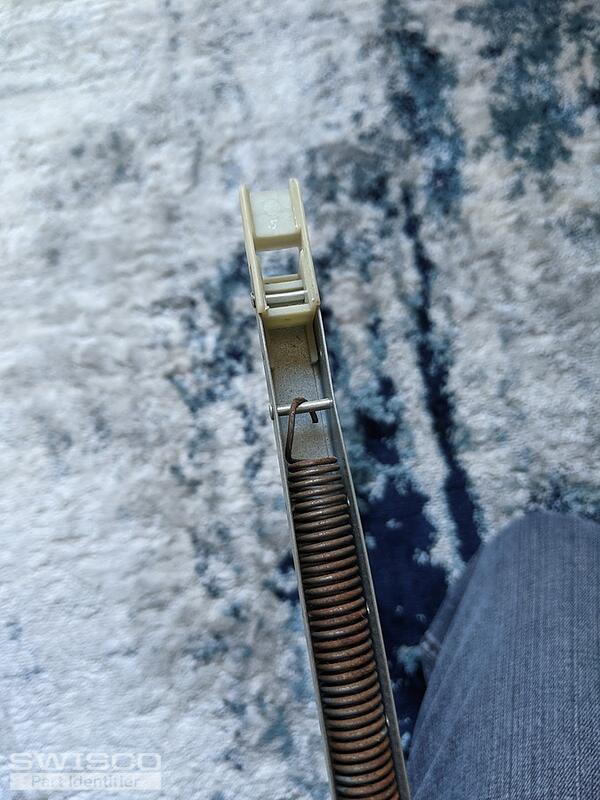

Thumbnail of the uploaded file named PXL_20210525_003649433.jpg
Thumbnail of the uploaded file named PXL_20210525_003616604.jpg

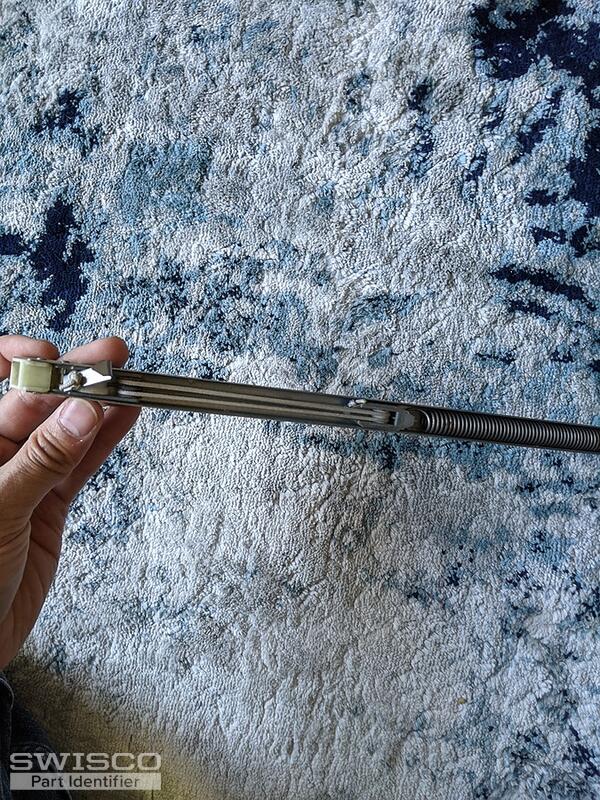

Thumbnail of the uploaded file named PXL_20210525_003544448.jpg

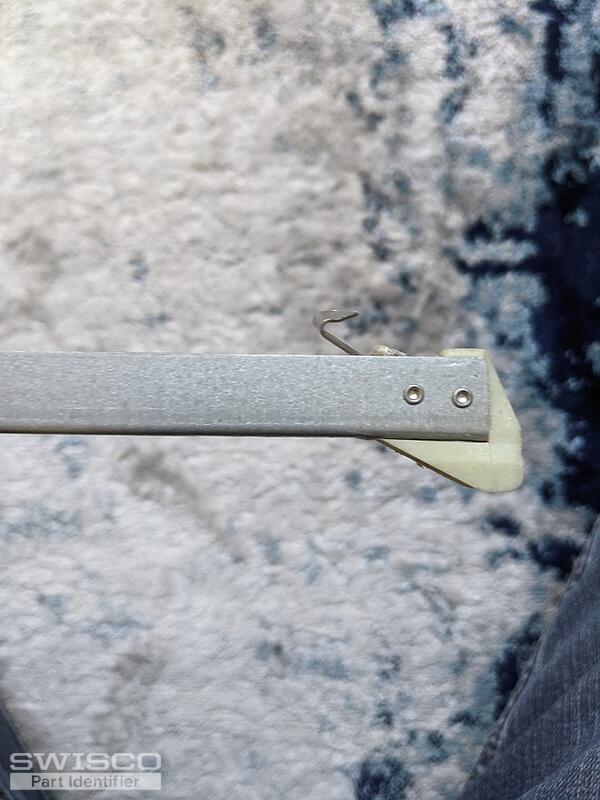

Thumbnail of the uploaded file named PXL_20210525_003601783.jpg
Profile picture of Emily
Emily from SWISCO responded:

Hi there!

It looks like you have either our S351-16, with a 15-002 bottom attachment, or S390-16, with a 15-001 bottom attachment. Take a look at the image below to determine which balance you'll need. You'll also need a spring strength option of 1520.

If you have any further questions just let us know!

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
A home owner from Las Vegas, Nevada says:
Hi the shoe length is 1and,1/16 inches. Should I get the 1in or the 1 1/8 inch shoe?
Profile picture of Emily
Emily from SWISCO responded:

Your bottom shoe was most likely worn down and was 1-1/8" at one point. In that case, I would say you'll need the S390-16
