Channel balance for no tilt vinyl windows

Start a new Discussion

Quick Learner from santa maria, ca

Nov 15, 2018 8:25 pm

Balance Length: 30 inches

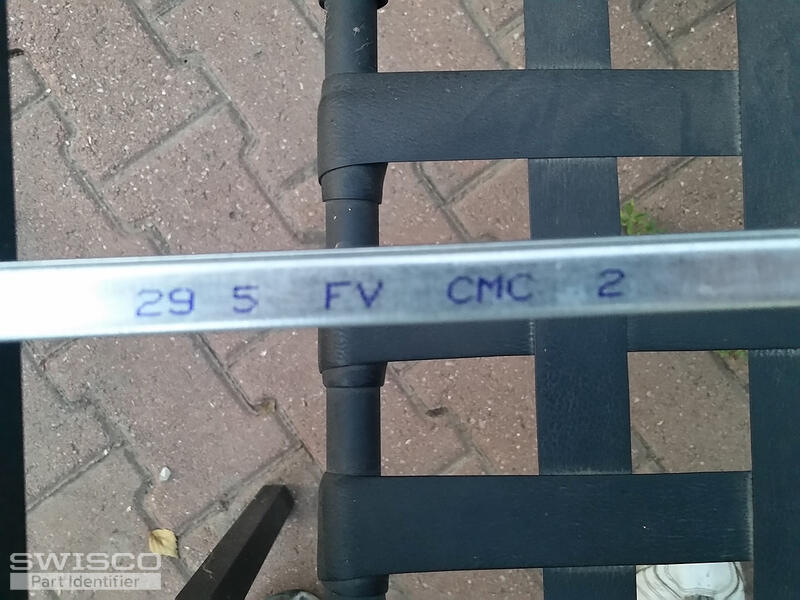

-Markings on Balance: 29 5 FV CMC 2

-Weight of sash: 29 LBS.

width: 1/2"

What do you recommend?

Thanks, Bob

4 user uploaded images

4 Replies

Quick Learner from santa maria, ca

Nov 15, 2018 8:42 pm

Additional info I came up with following your websites instructions:

Channel Balances > Non-Tilt Window > 1/2" Width > S380 > 30" Series 380 Channel Balance

stamp option: 2950 28 to 32 lbs

I have 3 windows, so I would like to order 6 of these.

Paul from SWISCO

Nov 20, 2018 11:24 am

Thanks for all of the information. Base on everything you submitted to us, you should be able to go with the S380-30 with a 2950 option. Take a look and see what you think.

Tom from SWISCO

Nov 20, 2018 2:03 pm

I think you might want to consider our Series 385 balance, instead. This has the 15-004 shoe, which is larger than the one that comes with the Series 380 (15-005). Look it over and see if this would be a better match.
