Channel balance for small bathroom window

A handy person from Seattle area says:
May 23, 2020

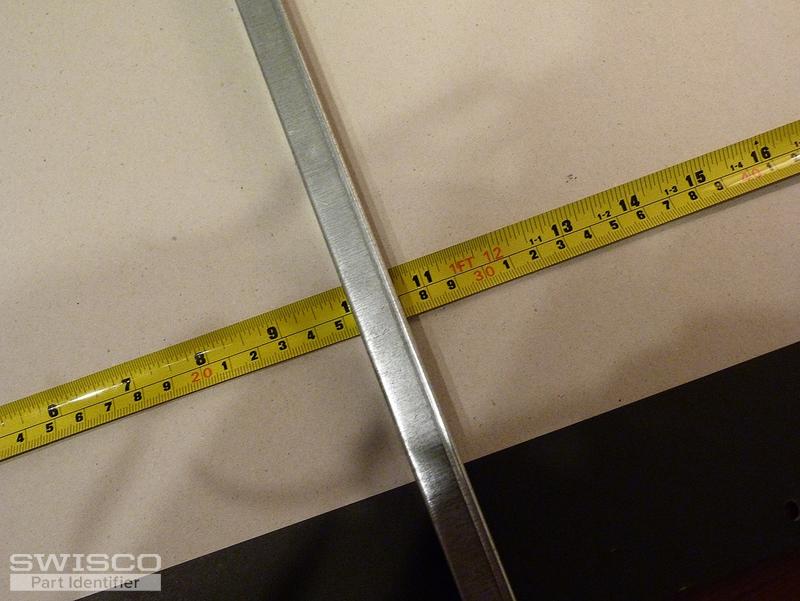

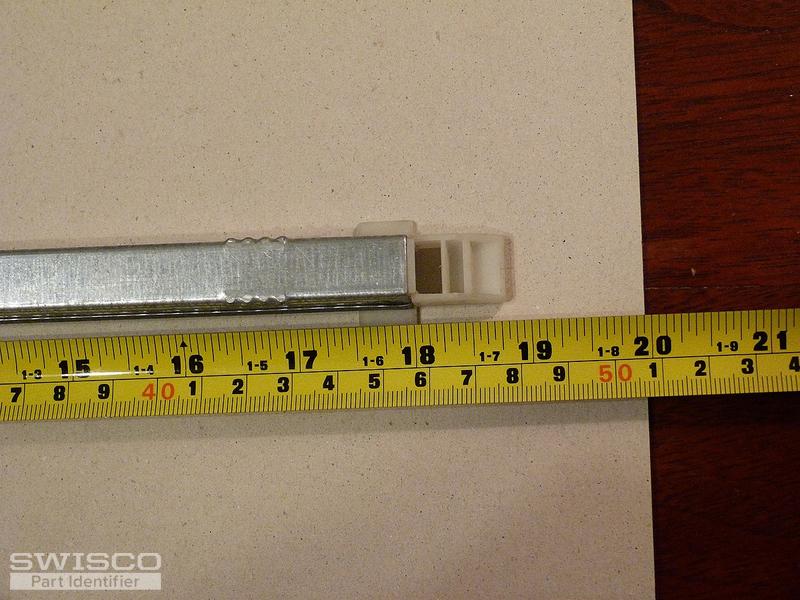

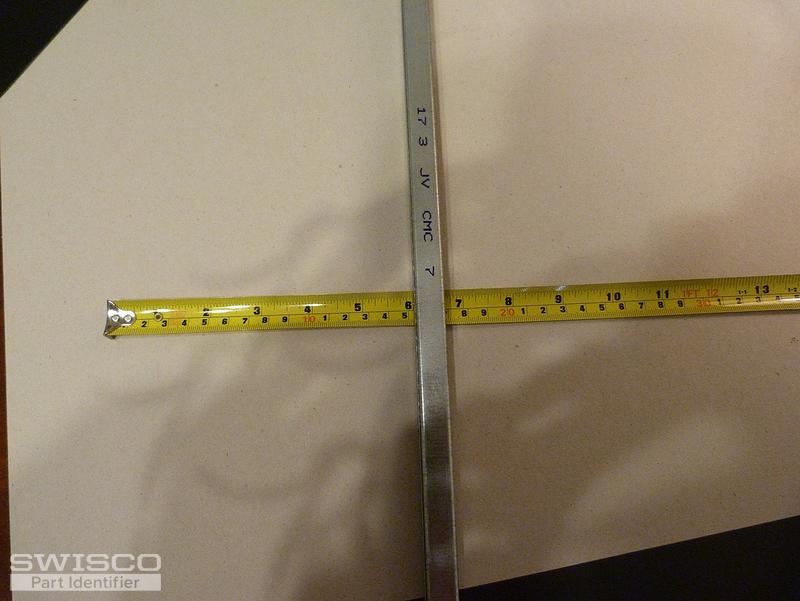

Please check my measurements - I see width in photo showing between 6 and 7 inches - looks like 5/8". Also, I see height a 5/8" in photo between 10 and 11 inches. Not sure - could be 9/16ths, so I need your help. The metal to metal length is 18" and the channel clips at the end have "wings". The wings are 7/8ths of an inch.

Thanks,

Steve

Thumbnail of the uploaded file named P1020027.JPG
Thumbnail of the uploaded file named P1020028.JPG
Thumbnail of the uploaded file named P1020029.JPG
Thumbnail of the uploaded file named P1020029.JPG
Profile picture of Casey
Casey from SWISCO responded:
May 27, 2020

Hello,

I can only see one attachment in your photos but if both the top and bottom attachments have wings, see our S380 and S385 channel balances. Measure your bottom attachment and follow the diagram below to choose between the two. Thank you!


Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
18" Series 380 Channel Balance
18" Series 380 Channel Balance
S380-18
$9.34
18" Series 385 Channel Balance
18" Series 385 Channel Balance
S385-18
$9.34
