Channel balance id help please

Home Owner from Roseville CA

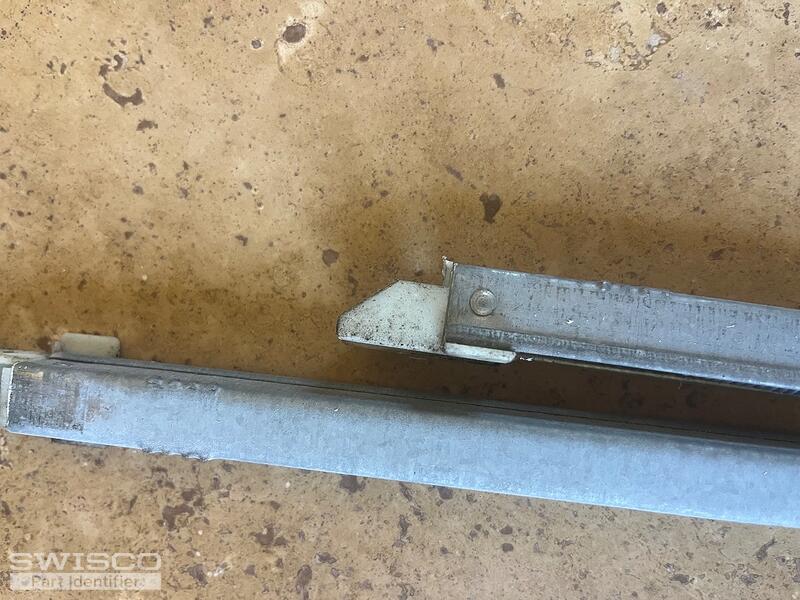

There is a purple stamp 23-5 CA2 CMC
its 1/2" wide and 24" long
5 user uploaded images
6 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for your post! I am confident we can recommend a replacement for the balance you have here. Although, I'll need to see a photo of the bracket that connects the spring and string to narrow down the correct replacements.

Please feel free to reach out with any other questions you might have.

Home Owner from Roseville CA

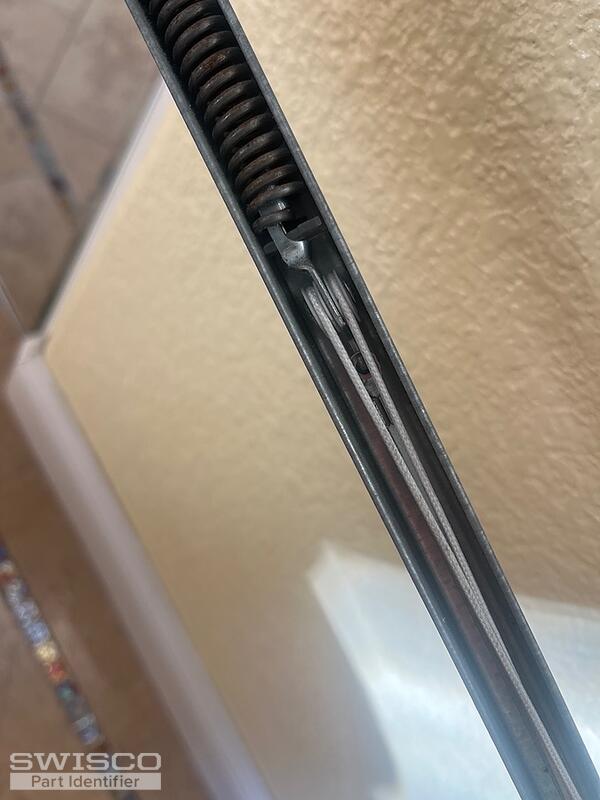

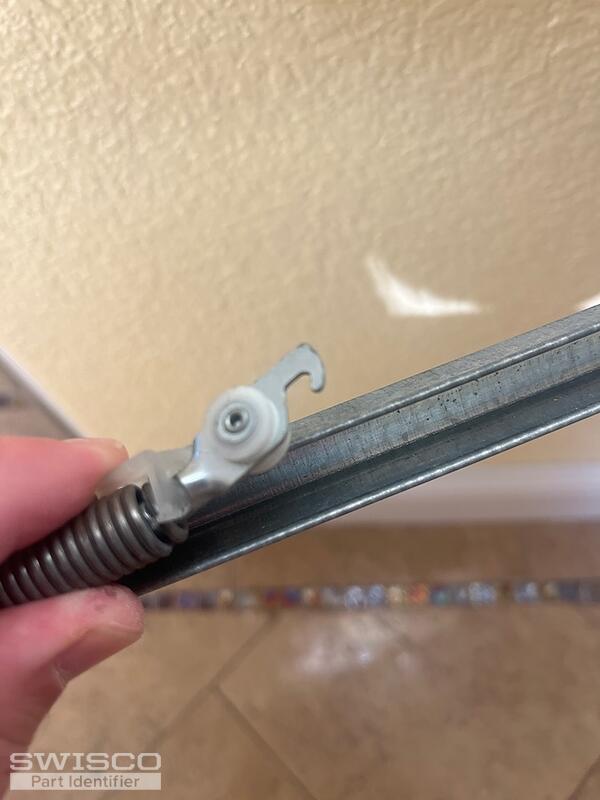

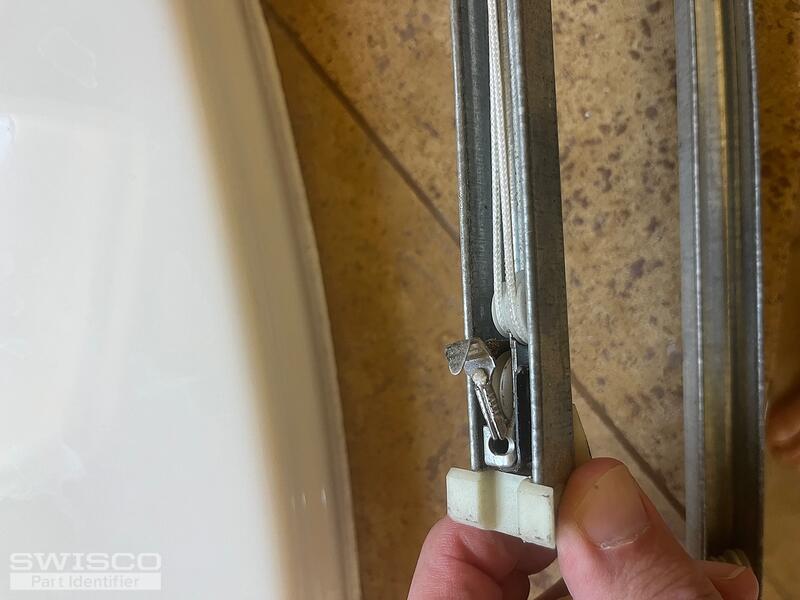

Pics of the spring and string attachment
2 user uploaded images
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for the additional photos. Your window balances can be replaced with the S378-24, S380-24, or S385-24. To determine which of these is the correct replacement, you'll need to confirm the depth of your bottom shoe.

You'll likely need the 2350 stamp option but be sure to double check that your sash weight falls between 23 to 27lbs.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.

Home Owner from Roseville CA
I measured and the bottom show is 1" exactly.
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Great! Please see the S380-24 channel balance with a 2350 stamp option. Let us know if you have any additional questions!
