Channel balance identification

A home owner from Denver, Colorado says:
Windows are from a home built in the late 80s, I'm unsure if these are original. Most of mine are in pretty rough condition but this appears complete.

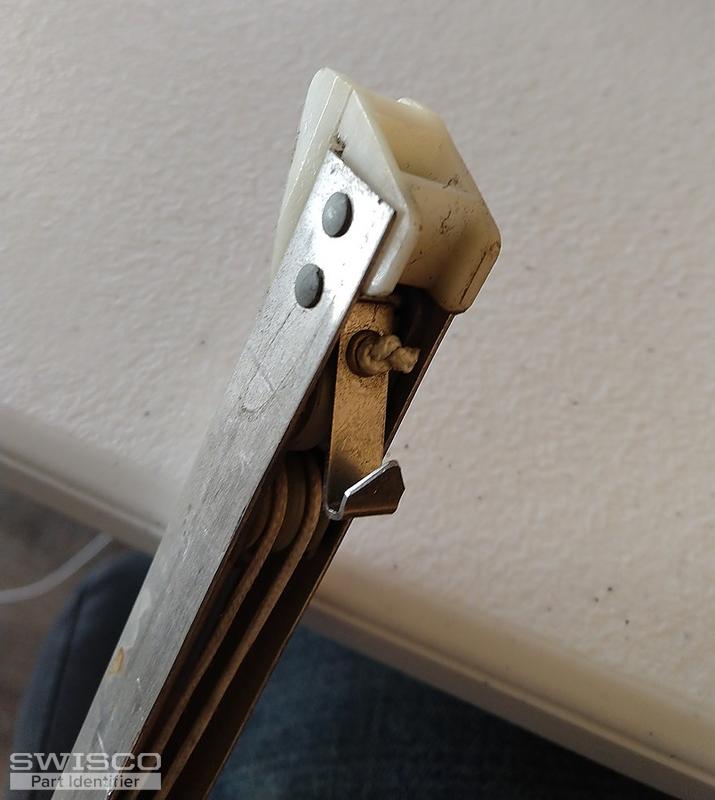

The metal of the balance measures 32 inches by 5/8s of an inch.

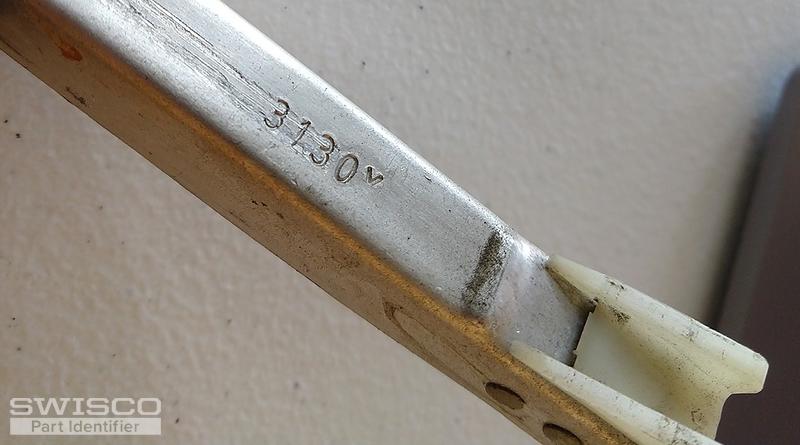

It has a stamp on one side of the number 3130 followed by either a superscript lower case v or the top half of an uppercase X
Thumbnail of the uploaded file named IMG_20190626_173904889.jpg
Thumbnail of the uploaded file named IMG_20190626_173921958.jpg
Thumbnail of the uploaded file named IMG_20190626_173926246.jpg
Thumbnail of the uploaded file named IMG_20190626_173935887.jpg
Thumbnail of the uploaded file named IMG_20190626_173943335.jpg
Profile picture of Bob
Bob from SWISCO responded:

Thanks for posting. I feel pretty confident we can replace this balance for you, but that length is a bit unusual for this type of balance. Could you confirm the length of the metal channel, not including the nylon fittings at either end? From there, we'll try and recommend what you need. Many thanks.

A home owner from Denver, Colorado says:

Yep 32 inches long, just the metal. Just double checked it.

I also just weighed a sash, it came in at 20 lbs.

Guessing a little from the pictures in your catalog it looks like i need:

S390-32

With option 3130

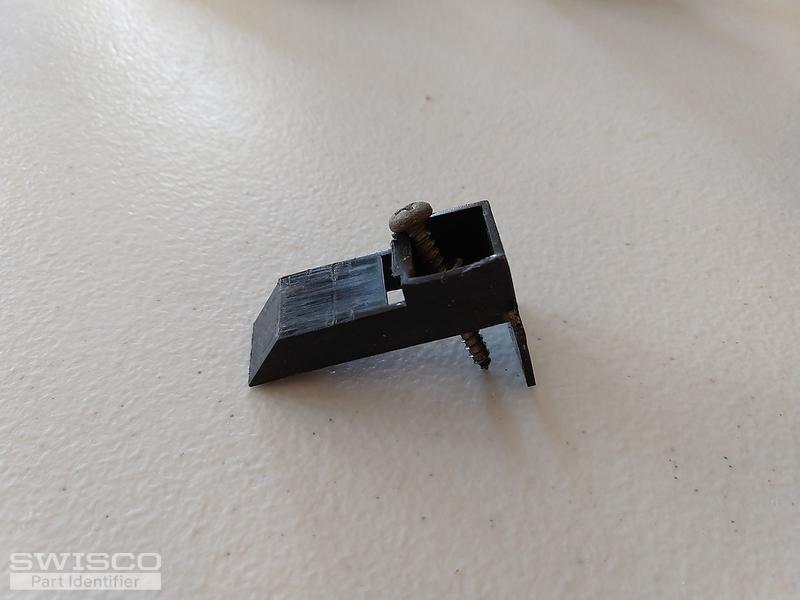

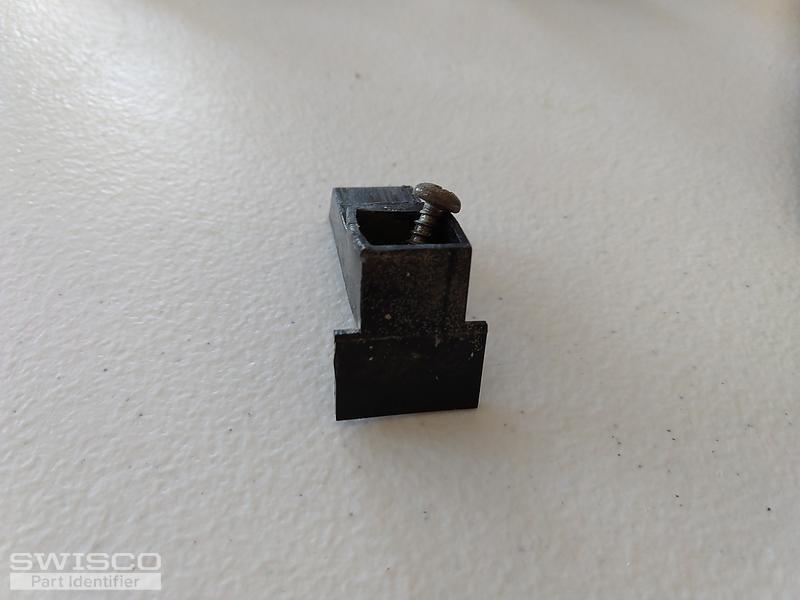

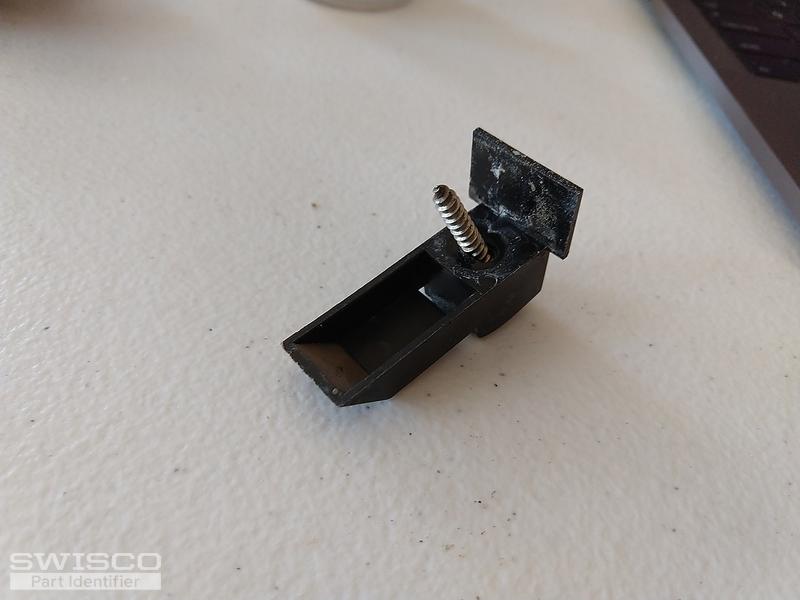

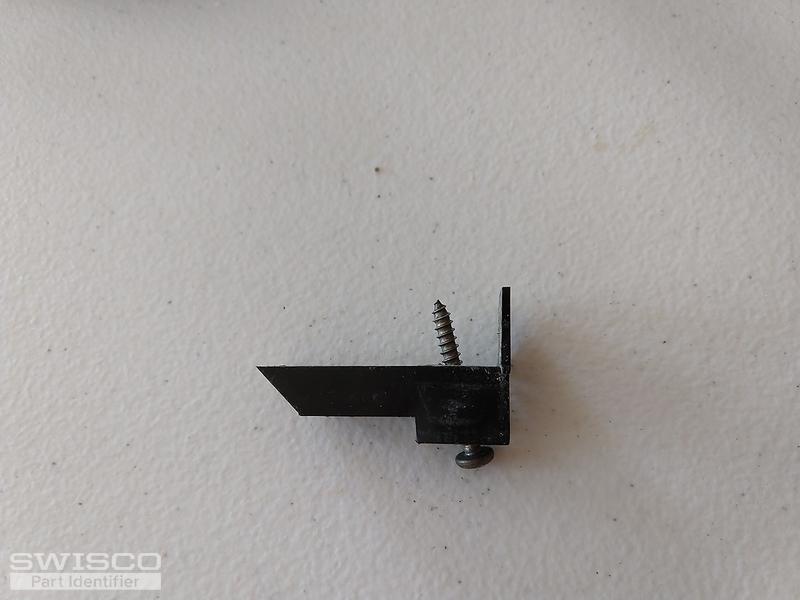

I'm also going to want to replace the sash guides. I included a few pictures but It looks like i would need this part:

18-041

What do you think?

Thumbnail of the uploaded file named IMG_20190702_121940952.jpg
Thumbnail of the uploaded file named IMG_20190702_121944764.jpg
Thumbnail of the uploaded file named IMG_20190702_121957011.jpg
Thumbnail of the uploaded file named IMG_20190702_122005920.jpg
Profile picture of Bob
Bob from SWISCO responded:

Thanks for getting back to me. You have an old howard window that my colleagues have determined uses Series 390 Channel Balances like the one you chose, so you should be OK. The Top Sash Guide will be the 18-039. We only carry this in stock in white, but we could custom order them in black for you if you wish. If so, how many do you need?

Profile picture of Bob
Bob from SWISCO responded:

Good deal, Rob. Thank you for the kind words, we're always glad to help! Let me know if you need anything else. Many thanks for considering our business, we really do appreciate it.

A home owner from Denver, Colorado says:
Oh i'm perfectly happy with white. I'll place my order now.

Your catalog is great btw. It's up there with McMaster, but having you to ask directly was awesome.


Thanks again!

_Rob
