Channel balance match

Quick Learner from portland oregon

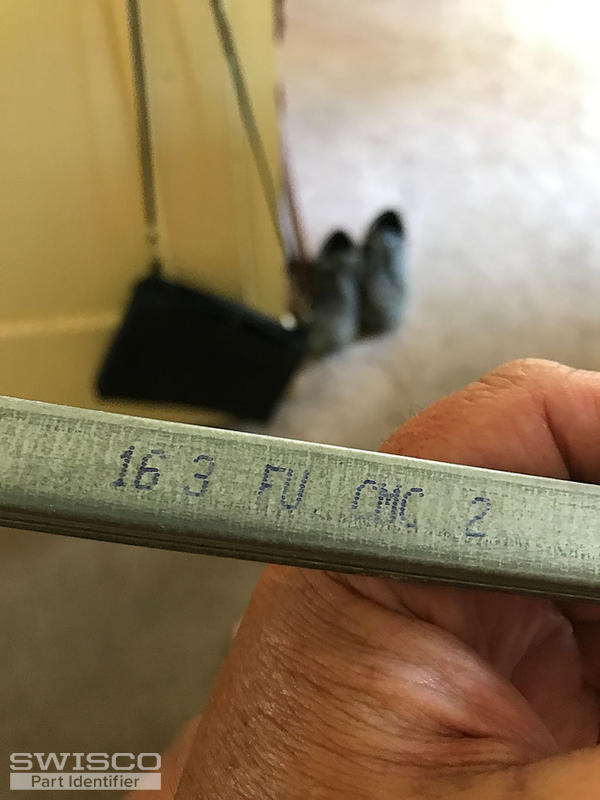

the balancer is printed

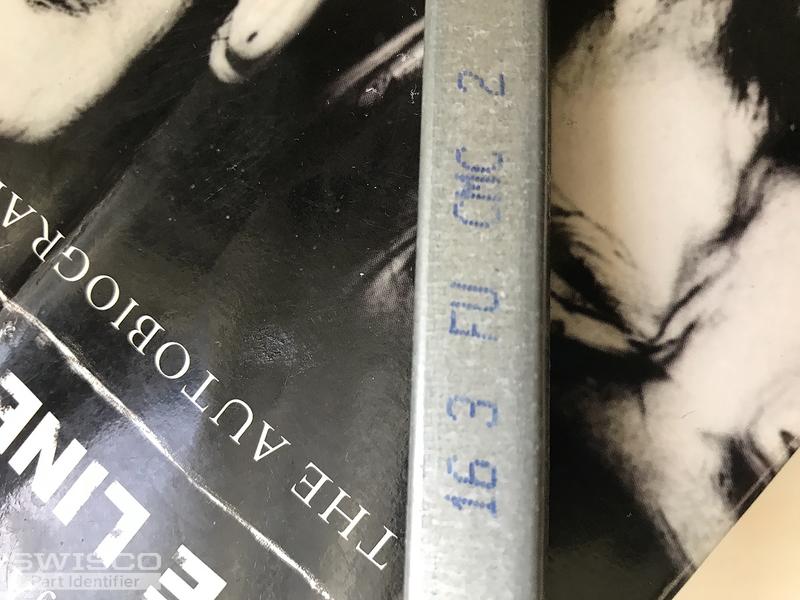

16 3 fu cmc 2

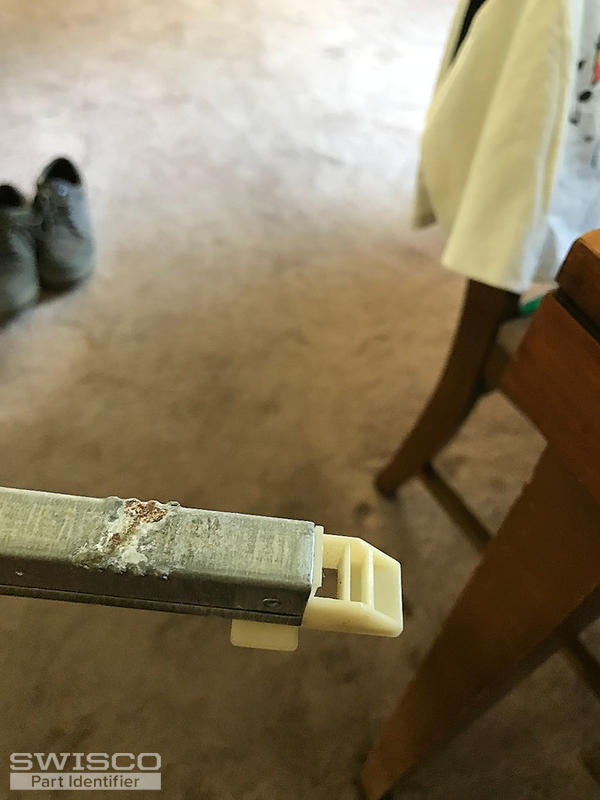

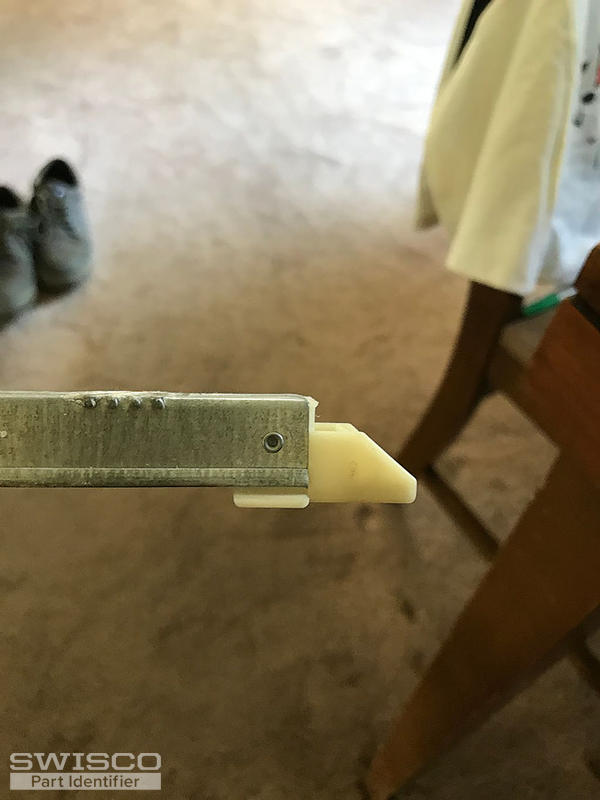

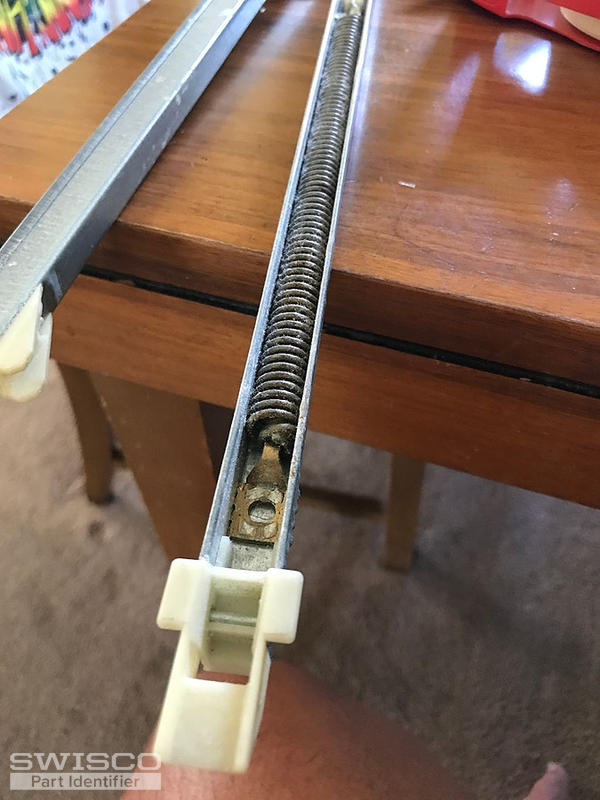

3 user uploaded images
4 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Before we can recommend a replacement channel balance, may we have you provide us with another photos showing the opposite side of the balance showing the other nylon fitting? From there, I am confident we can find what you need.

Quick Learner from portland oregon

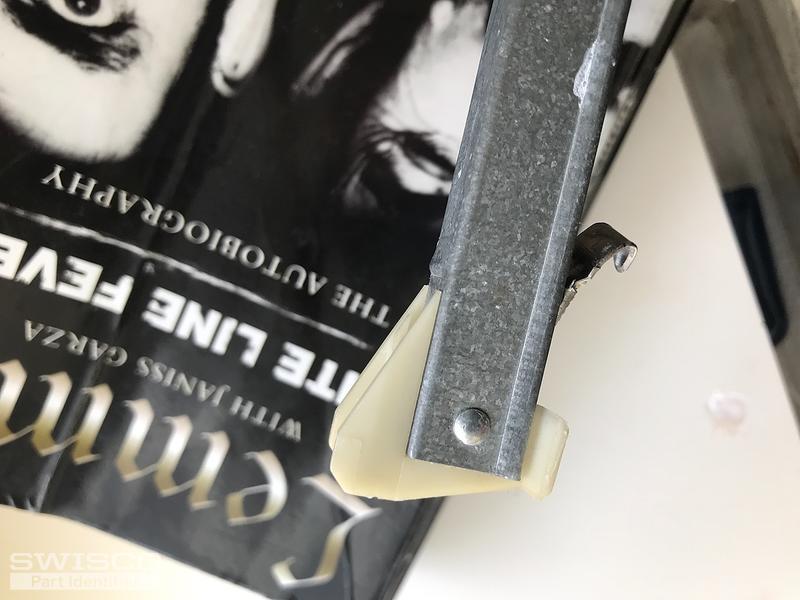

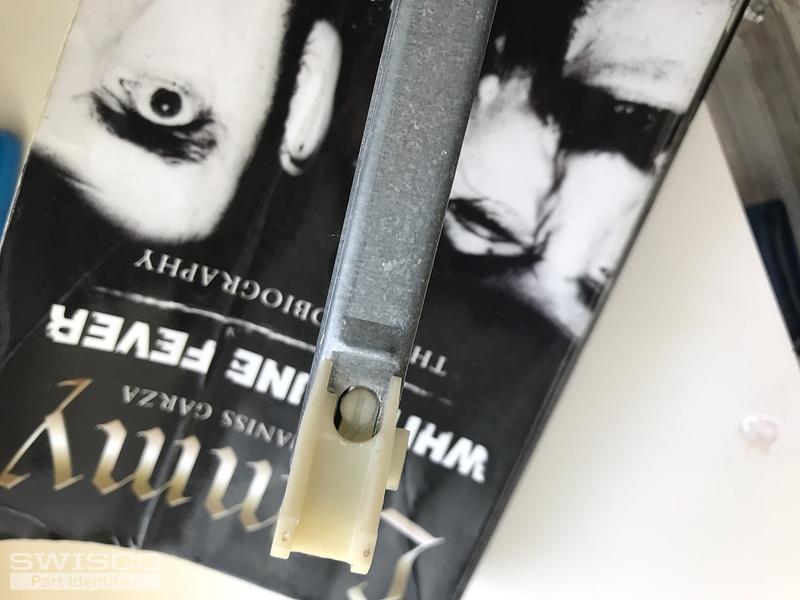

hi thanx for the reply!.... i hope these help
4 user uploaded images
Casey
Casey from SWISCO
SWISCO
Expert

Thank you for replying back with photos. It appears you may have a balance that looks close to both our S380-17 and S385-17. These look identical, however, each balance's bottom shoe has different measurements. The Series 380 includes a 1" depth bottom balance shoe. For the Series 385, it holds a 1-3/32" bottom balance shoe. You will need to measure the depth of your bottom balance shoe, like in the diagram below, to determine which balance would make the better match. Whichever one chosen will use a 1630 option.

Alternate view of 15-004
Alternate view of 15-004
