Channel balance: non tilt/half in/1520bsi /length 16in

A home owner from Hawthorne CA says:
January 27, 2020

Hello,

Could you please help me identify the correct part to order? Both the top guide and bottom shoe have wings. S377 looks to be the closest, although the top guide seems different.

Thank you,

Maile

Thumbnail of the uploaded file named 20200127_160358.jpg
Thumbnail of the uploaded file named 20200127_160550.jpg
Thumbnail of the uploaded file named 20200127_160421.jpg

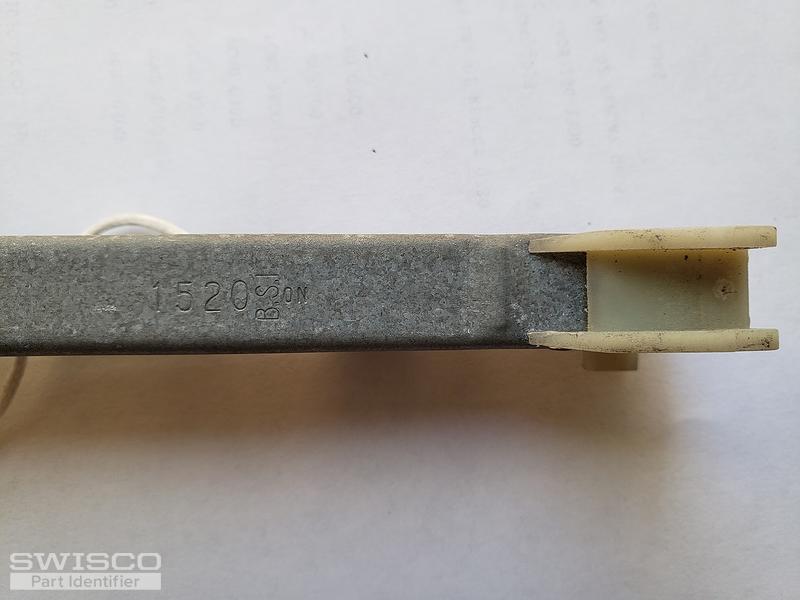

Thumbnail of the uploaded file named 20200127_160439.jpg

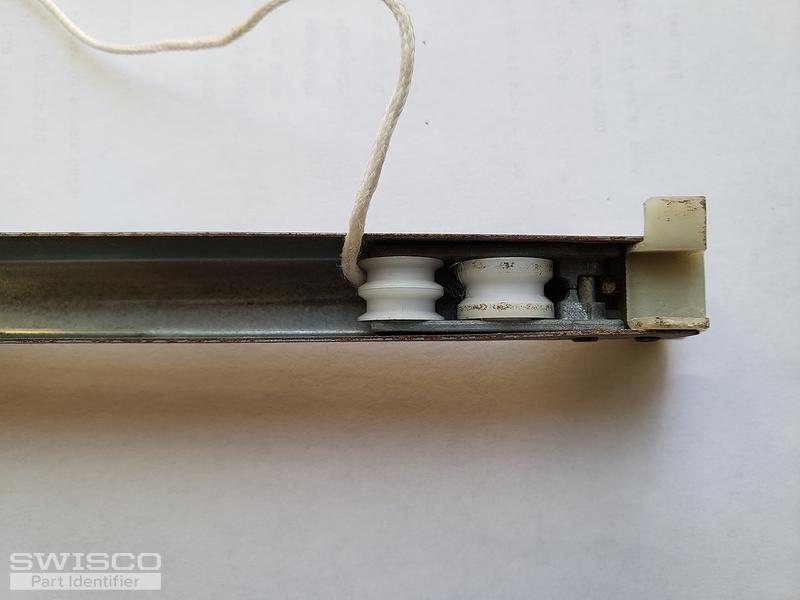

Thumbnail of the uploaded file named 20200127_160445.jpg
Profile picture of Casey
Casey from SWISCO responded:
January 28, 2020

To me, your balance actually resembles more of our Series 380. Take a look at our S380-16. This comes assembled with a 19-005 balance top and 15-005 bottom balance shoe. Confirm your measurements match up with ours. If everything looks correct, then you can go with the 1520 option that holds a sash weight of 6-10 pounds.
16" Series 380 Channel Balance
16" Series 380 Channel Balance
S380-16
$9.34
