Channel balance replacement

Handy Person from Fort Collins, CO

Jun 11, 2019 8:35 pm

I need a replacement 27" Channel balance, measurement without plastic sends. "26DS 33" "BSI" is stamped on the bottom.

Thank you!!!

9 Replies

Casey from SWISCO

Jun 12, 2019 1:02 pm

Hey there, thanks for reaching out. This is a good start, but in order to fully identify your balances, we'll need to see it removed from the window. In particular, we'll need to see the plastic attachments at the top and bottom. Thanks!

Tom from SWISCO

Jun 12, 2019 2:23 pm

It looks like you have either a Series 380 or a Series 385 channel balance.

The difference between the Series 380 and Series 385 balances lies in the shoe.

Comparison of the S378, S380 and S385 balance shoes.

The series 385 balance has the 15-004 shoe which is slightly larger from front to back, as illustrated.

If you measure your shoe as it is pictured here, you should be able to determine which one you need.

Handy Person from Fort Collins, CO

Jun 12, 2019 2:50 pm

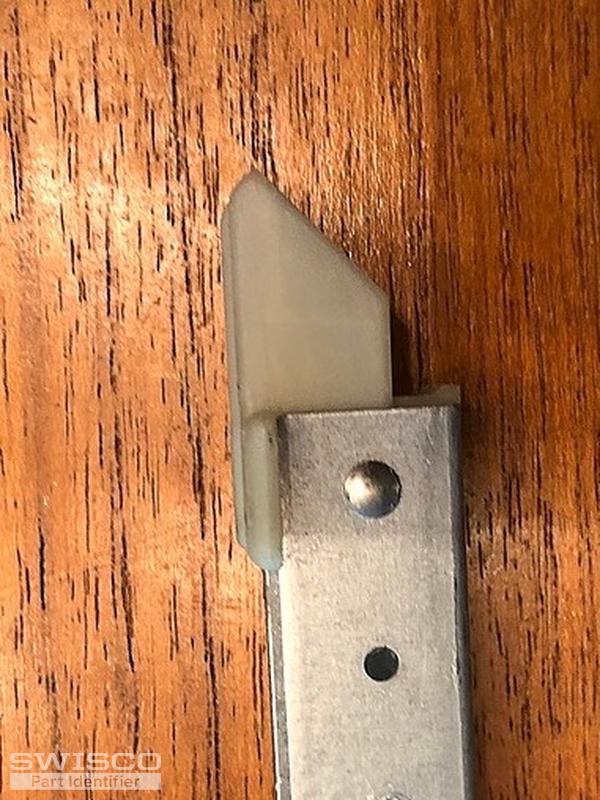

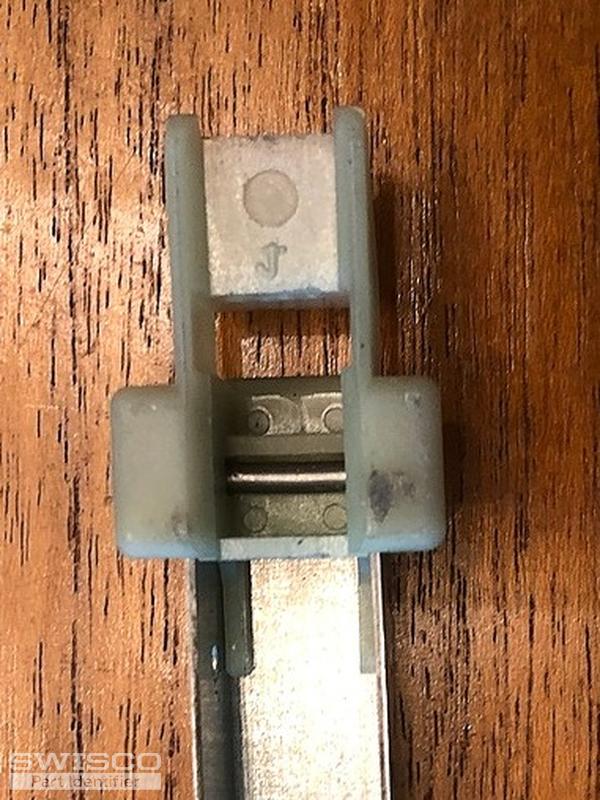

Please see the photos attached.

5 user uploaded images

Handy Person from Fort Collins, CO

Jun 12, 2019 3:38 pm

Hi Michael,

It appears the shoe is 1 3/32".

Thanks,

Robb

Tom from SWISCO

Jun 12, 2019 3:47 pm

If that is the case, you will need a 27 inch series 385 channel balance with a 2640 stamp option.

Handy Person from Fort Collins, CO

Jun 12, 2019 4:53 pm

Michael,

Will that include the top plastic part and the correct shoe?

Thanks,

Robb

Tom from SWISCO

Jun 13, 2019 9:21 am

Hi Robb, the S385-27 will include the top 19-005 and the bottom 15-004 attached.

Handy Person from Fort Collins, CO

Jun 13, 2019 10:50 am

Thanks!
