Channel balance replacement

Question

I have 3 windows that I need to replace the channel balance

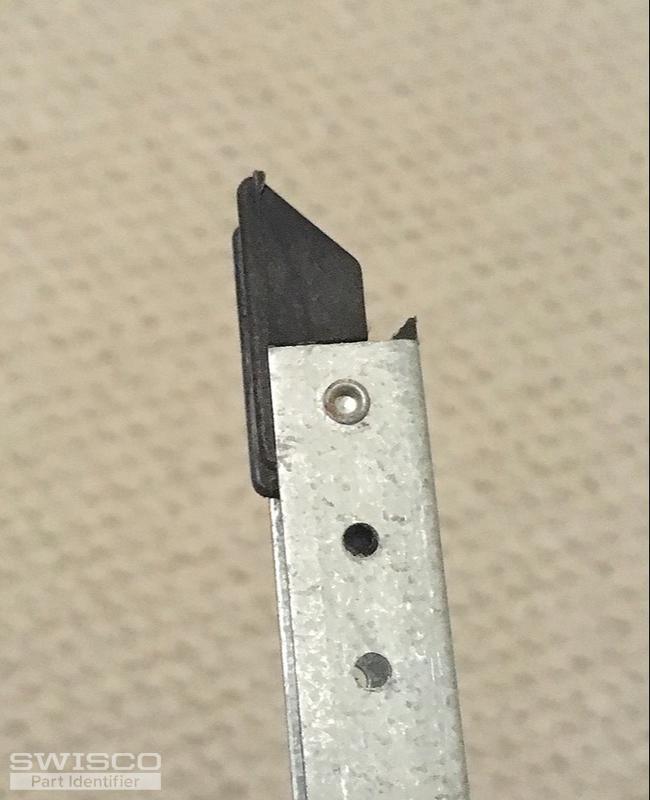

I have removed the channels
Each window has 2 channel brand UNIQUE.

1 window weights 10 lb. One channel is Unique 29 -A-16 the other is Unique 29-A-10 the metal length is 30"

1 window weights 15 lb I removed one Chanel marked Unique 29-B-20 the metal length 30"

1 window weights 13 lb removed one Chanel Marked unique 29-B-20

Dimension of the channel 5/8. And 1/2 each side length 30"

Bob · Accepted Answer

Thanks for writing in. Assuming all 3 sets of balances have the same nylon fittings on either end, it looks like you need either our S351-30 or S390-30 for each set. The only difference between these two balance Series is the 'depth' of the bottom nylon shoe, so compare both with your old hardware to see what matches best. For the balances stamped 29-A, you will need a stamp option of 2910. For the balances stamped 29-B, you will need a stamp option of 2920. Let us know if you have any other questions.
