Channel balance replacement

Quick Learner from California

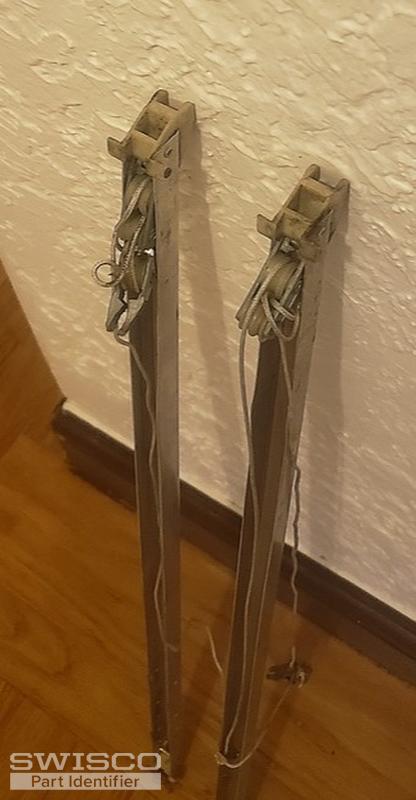

Looking for the correct channel balance to replace the destroyed set.

Stamped 23301 b.s.t

Thanks

1 user uploaded image
4 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Thanks for writing in. I am confident we can replace these balances for you, but we need more information to be able to help. Can you show us a picture of the nylon fitting at the other end of the balance? Can you also confirm the length of the metal channel, not including the nylon fittings? From there, we'll try and narrow down what you need. Many thanks.

Quick Learner from California

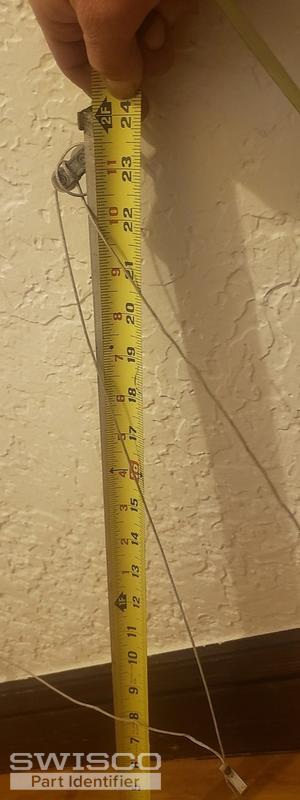

Great. Thanks! 24 inches.

I truly appreciate the assistance!
4 user uploaded images
Bob
Bob from SWISCO
SWISCO
Expert

This is perfect, thank you very much. Start by looking at our S385-24 channel balance. This comes with a 19-005 top and 15-004 bottom nylon fitting, so as long as those match up then you should be good to go. I'd also recommend the 2330 stamp option, of course.
