Channel balance replacement

Quick Learner from San Diego, Ca
Nov 14, 2011 5:22 pm
I'm trying to identify these top and bottom guides. Do you have them available? They're on a vinyl non-tilt, 1/2" (9/16") wide, 5/8" deep, 16" long guide with the numbers "1530 BSI" stamped on it (10-12lb sash weight I think).
I need to replace two balance and top/bottom guide sets. I have more pictures available if you need them, but could only attach 5 here.
Thanks for your help!

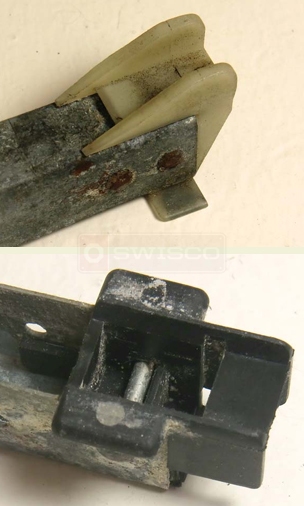

A customer submitted photo of channel balance attachments.
5 Replies
Paul
Paul from SWISCO
Nov 15, 2011 1:37 pm
SWISCO
EXPERT
Thanks for posting. Before we can offer any suggestions, I will need a little bit more information about the bottom shoe. Please refer to the chart below and let us know which one is yours.
Diagram on how to choose between the 15-001, 15-002, 15-004, and 15-005 channel balance shoes.
Diagram on how to choose between the 15-001, 15-002, 15-004, and 15-005 channel balance shoes.
Quick Learner from San Diego, Ca
Nov 16, 2011 5:29 pm
Thanks for the quick response. The bottom shoe seems to be # 15-004, based on wings and measurements.
Paul
Paul from SWISCO
Nov 17, 2011 8:41 am
SWISCO
EXPERT
Please take a look at our S385-16 with a 1530 stamp option.
Quick Learner from San Diego, Ca
Nov 17, 2011 10:19 am
Thanks Paul. That one looks close, except for the top guide. The top guide I have is square shaped, flat across the top. The one you suggested has a sloped top/front edge. Other than the sloped edge, it looks perfect though. Would that guide still work even though its not the same shape?
Thank you again for your help.
Paul
Paul from SWISCO
Nov 17, 2011 2:26 pm
SWISCO
EXPERT
I believe that it would, yes.
