Channel balance replacement part
Quick Learner from 92833
Aug 16, 2023 6:02 pm
Looking for replacement for my current chann balance.

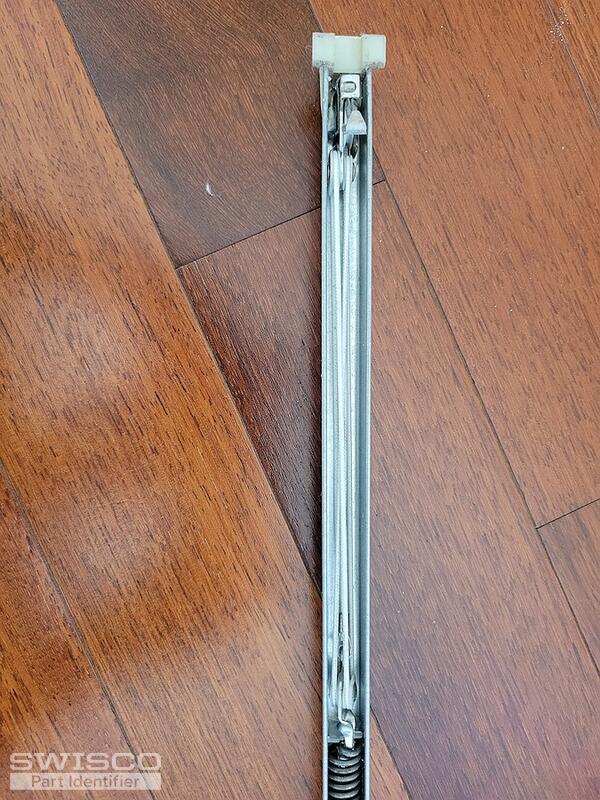

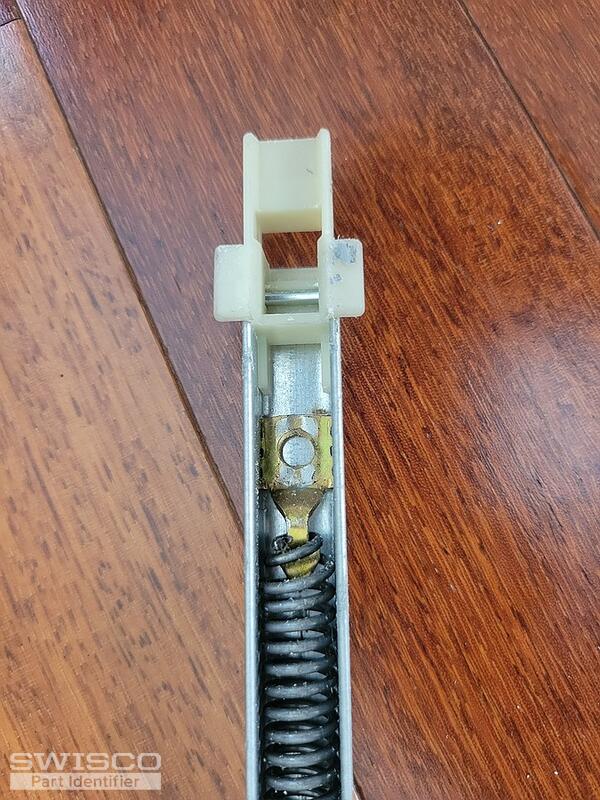

5 user uploaded images
6 Replies
Emily from SWISCO
Aug 17, 2023 9:35 am
Thanks for contacting us. Based on what I see here, I recommend either the Series 380 or Series 385 channel balances. The difference between them is the depth of the bottom shoe as shown below. You will also need to refer to the stamp printed on the metal channel to determine what strength option to select.
Comparison of the S378, S380 and S385 balance shoes.
Home Owner from 92833
Aug 17, 2023 10:34 am
What strength option do I need. Thank you
1 user uploaded image
Emily from SWISCO
Aug 17, 2023 10:47 am

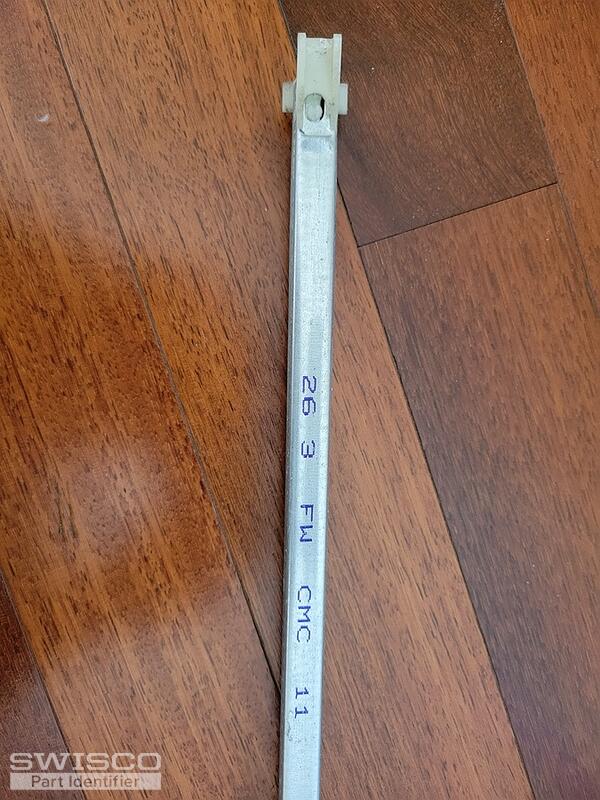

I recommend the 2630 option based on your 26 3 stamp.
Home Owner from 92833
Aug 17, 2023 2:32 pm
Hi. 1 more different smaller window.

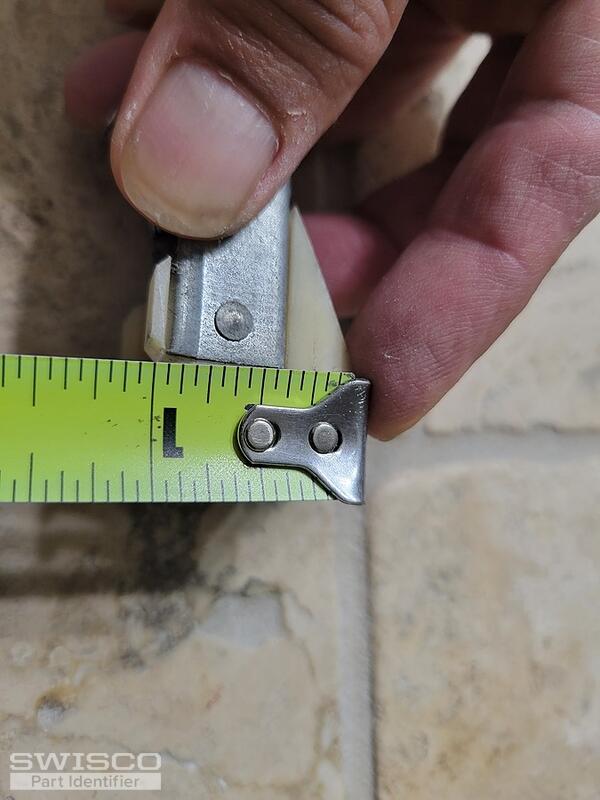

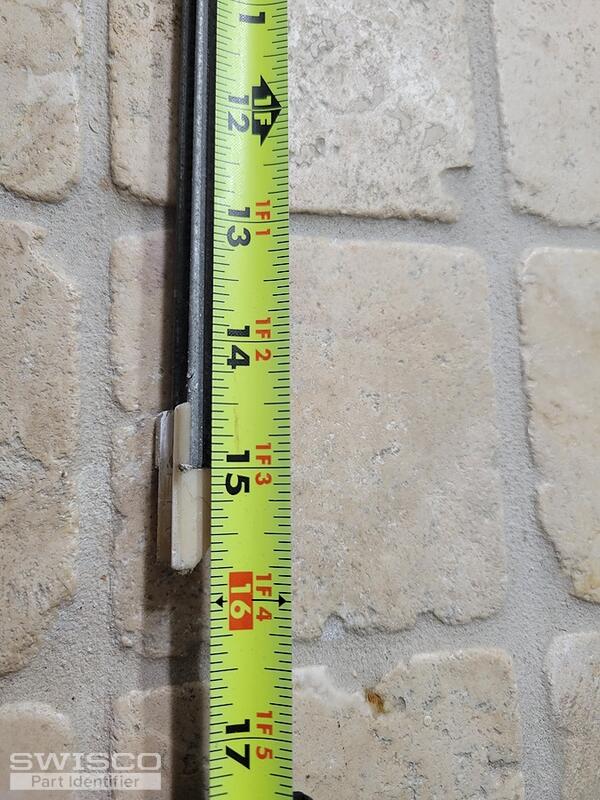

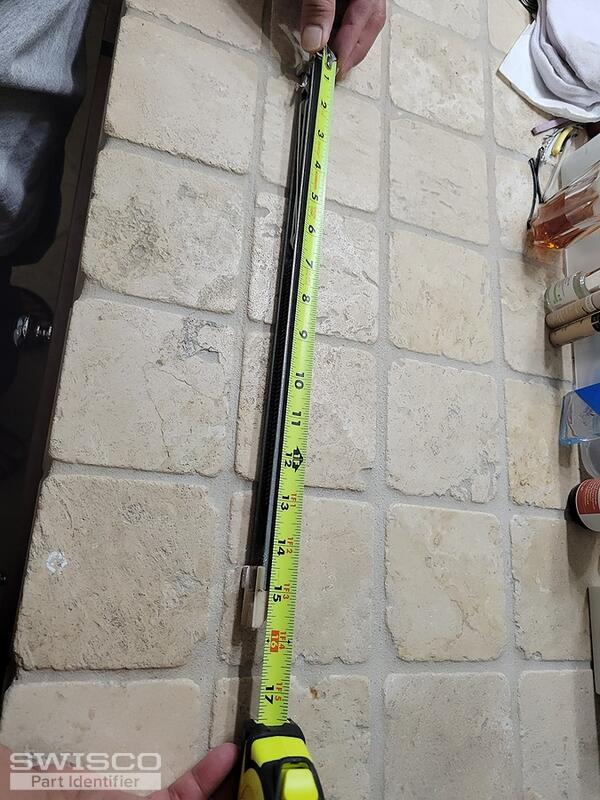

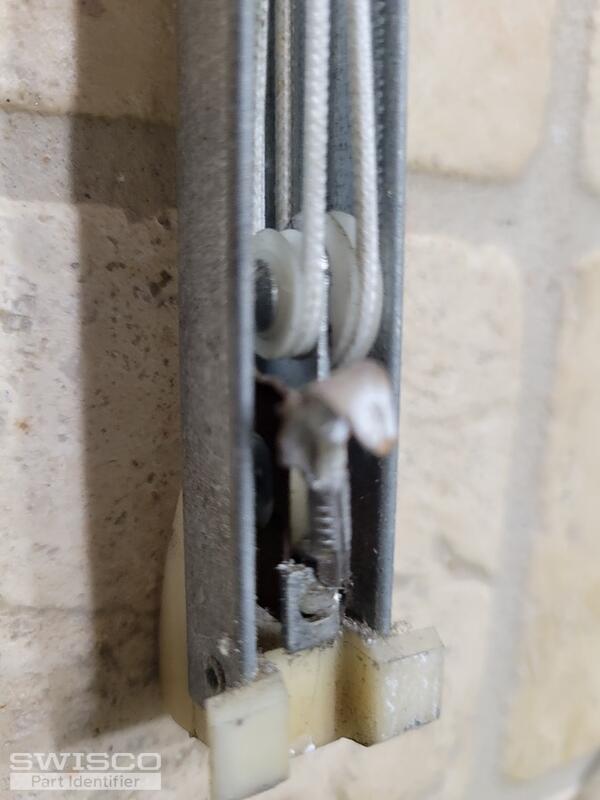

5 user uploaded images
Emily from SWISCO
Aug 17, 2023 2:49 pm

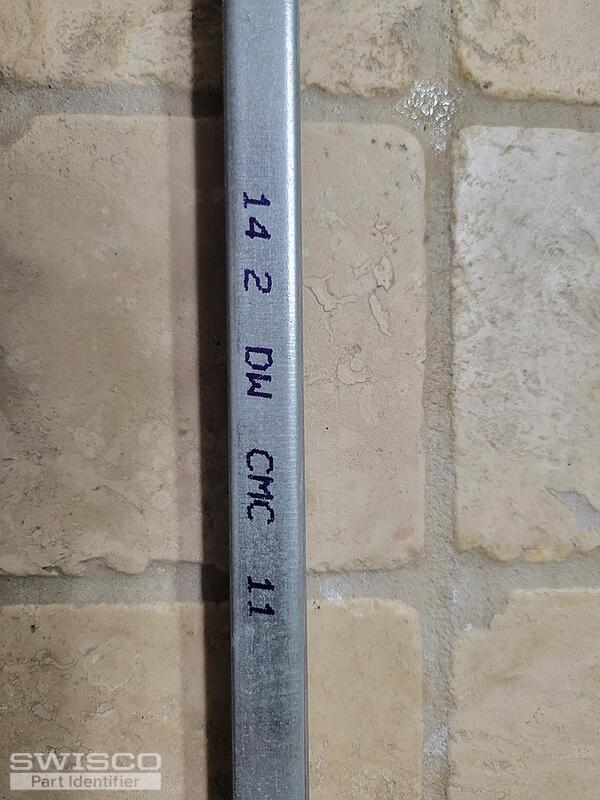

This balance also looks like a match for either the Series 380 or Series 385, depending on the depth of the bottom shoe. You will also need the 1420 option.
