Channel balance replacement parts

A home owner from 92886 says:
May 3, 2022
Hello,

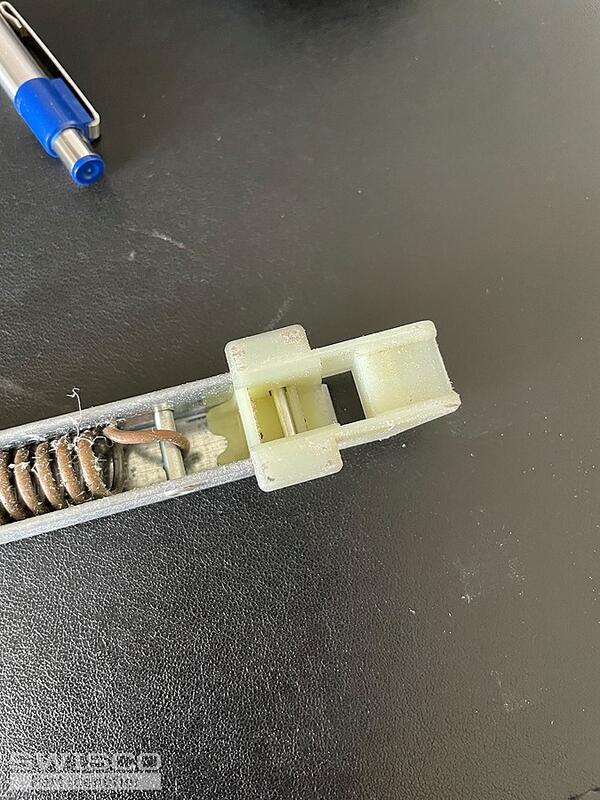

I'm looking for replacement for these channel balance parts. The metal channel is 27" long and ~5/8" wide. The metal channel is stamped with the following: 26-3 HD5 CMC 54.

Thanks!

Joe
Thumbnail of the uploaded file named Pic1.jpg
Thumbnail of the uploaded file named Pic2.jpg
Thumbnail of the uploaded file named Pic3.jpg
Thumbnail of the uploaded file named Pic4.jpg
Profile picture of Emily
Emily from SWISCO responded:
May 5, 2022

Hello, Joe.

Depending on the depth of your bottom shoe, you have either our S380-27 or S385-27 channel balance. Our Series 380 has a 1" deep shoe while the Series 385 has a 1-3/32" deep shoe. Take a look at the image below to determine which one you'll need. You'll also need to choose the 2630 spring strength option.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
A home owner from 92886 says:
May 5, 2022
I looks like bottom shoe is 1 3/32". Thanks for helping.

Joe
27" Series 380 Channel Balance
27" Series 380 Channel Balance
S380-27
$10.55
27" Series 385 Channel Balance
27" Series 385 Channel Balance
S385-27
$10.55
