Channel balance sash support systems

Home Owner from California 92880

May 19, 2021 10:44 am

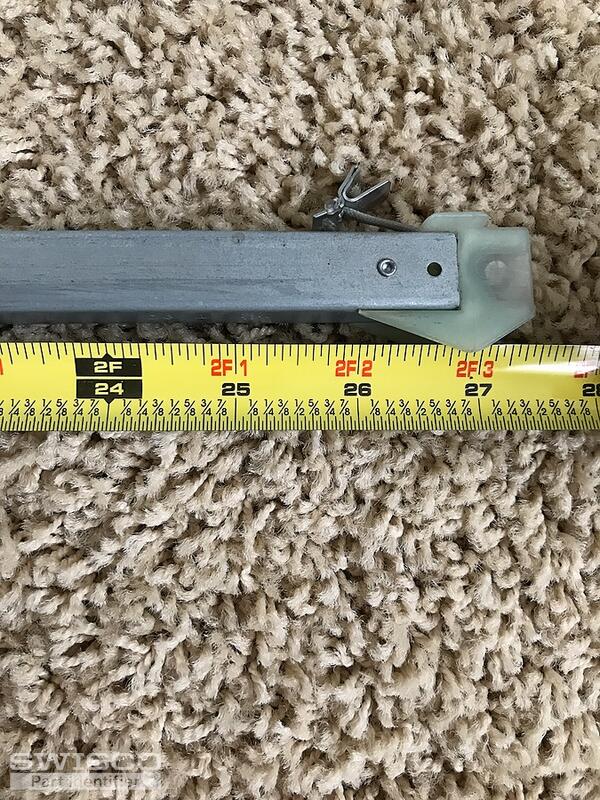

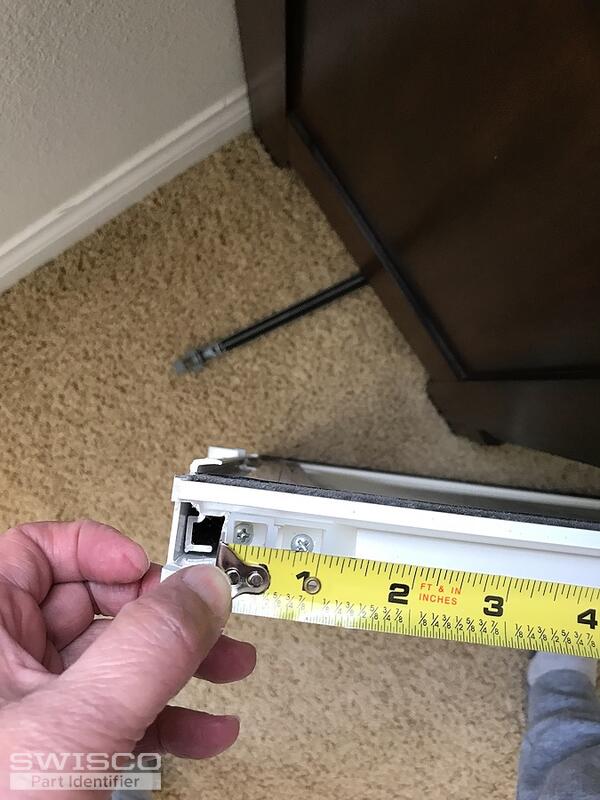

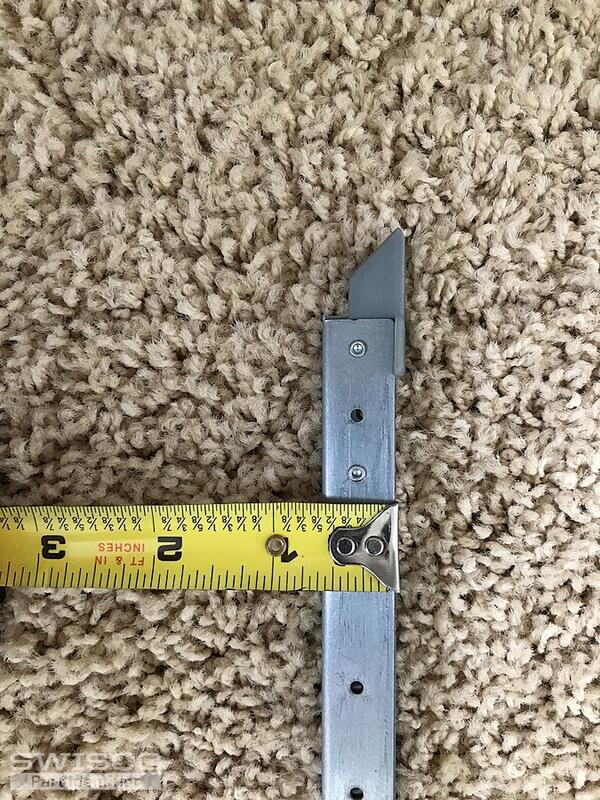

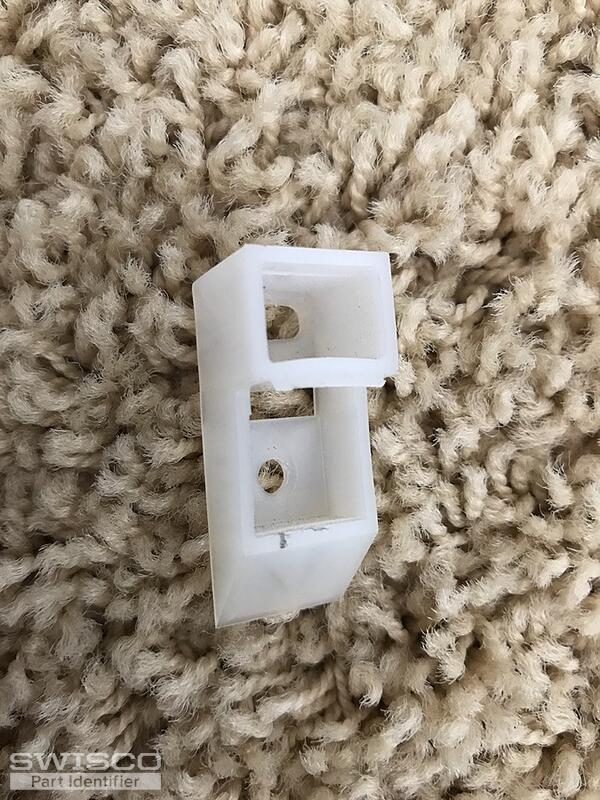

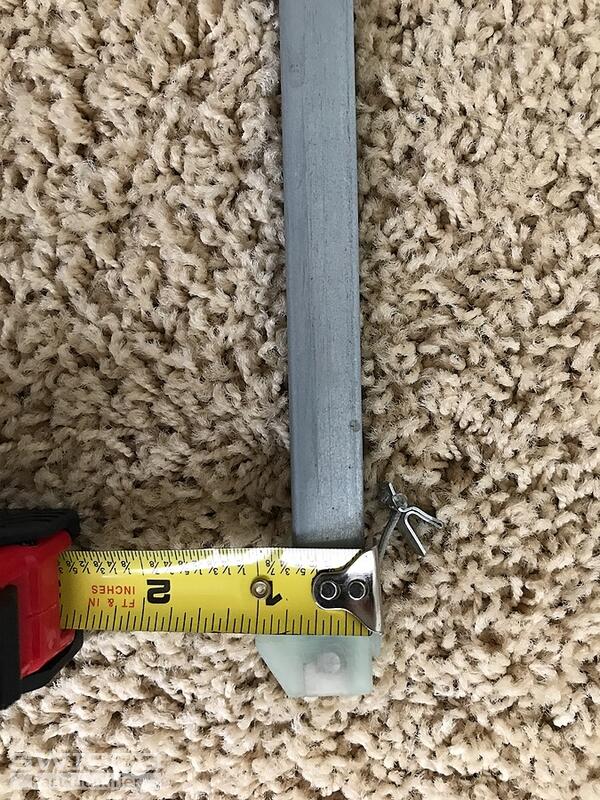

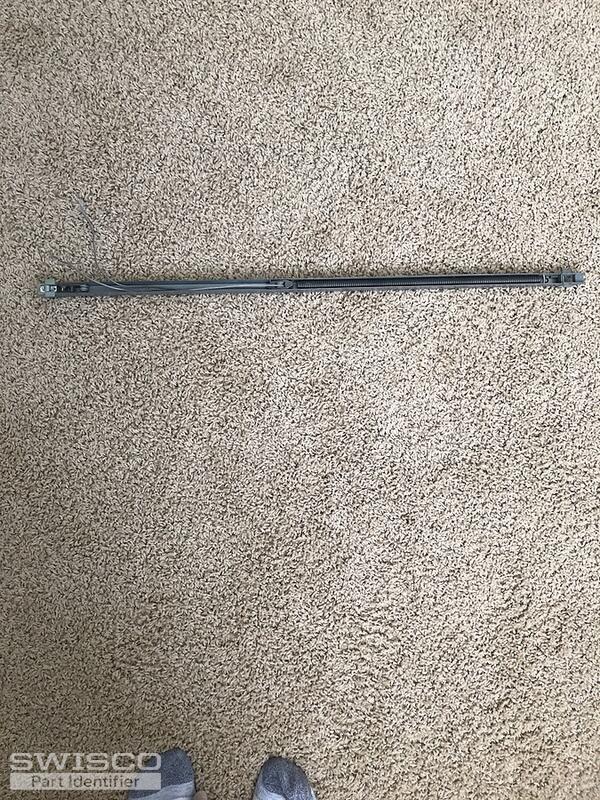

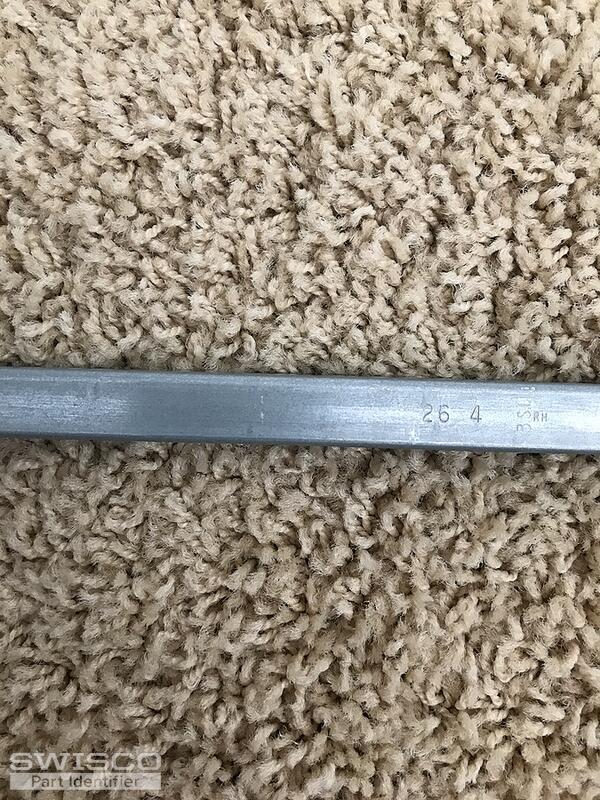

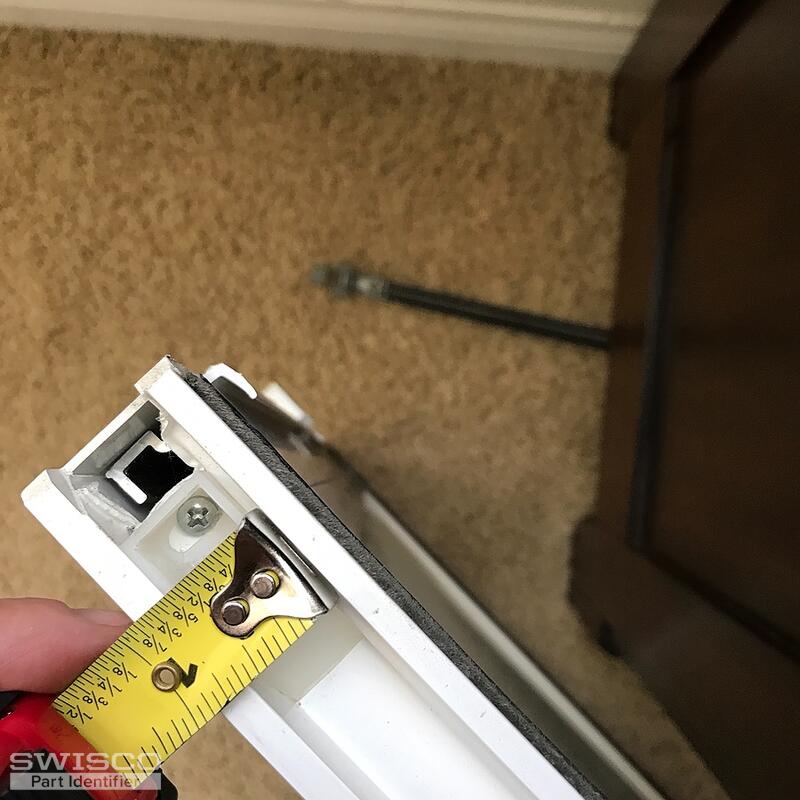

It is a Milgard 's non tilt window and The window # H-LC30-48x78 & H-R20-108x78 .The Channel balance length is 27?and The width is 1/2?. The balance stamp on it is 26-4 BSI . please identify what the replacement number for the channel Balance is and let me know so I can order a replacement for repair. Also please tell me the number of replacement nylon top sash guide. Thank you very much!

5 user uploaded images

5 Replies

Bob from SWISCO

May 20, 2021 1:52 pm

We can replace this balance, but it has to be custom made due to its unique design. I am sending you an email with a purchase link to order a pair of these balances stamped 26-4. Let me know if you need a different amount, or have any other questions.

Home Owner from California 92880

May 24, 2021 2:58 pm

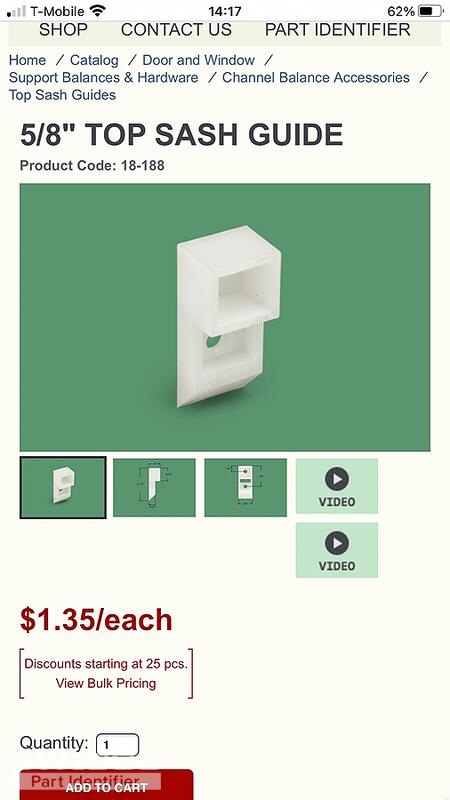

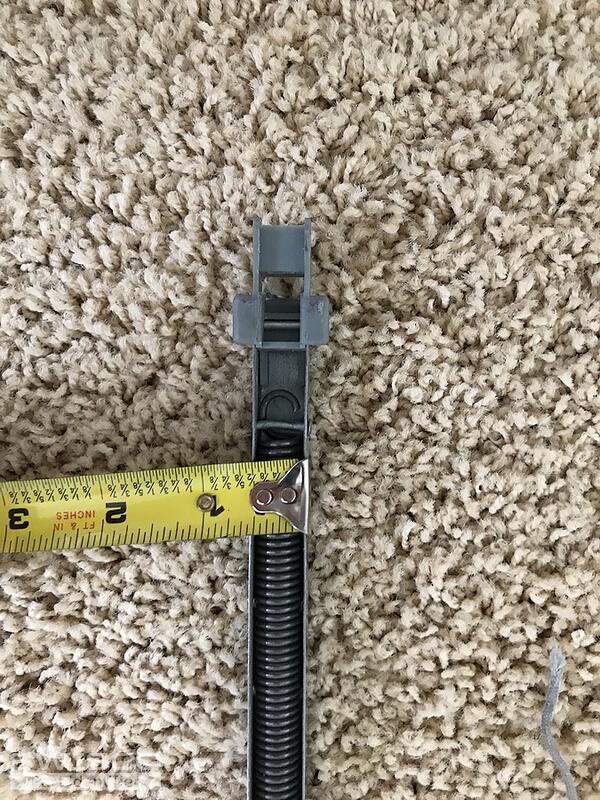

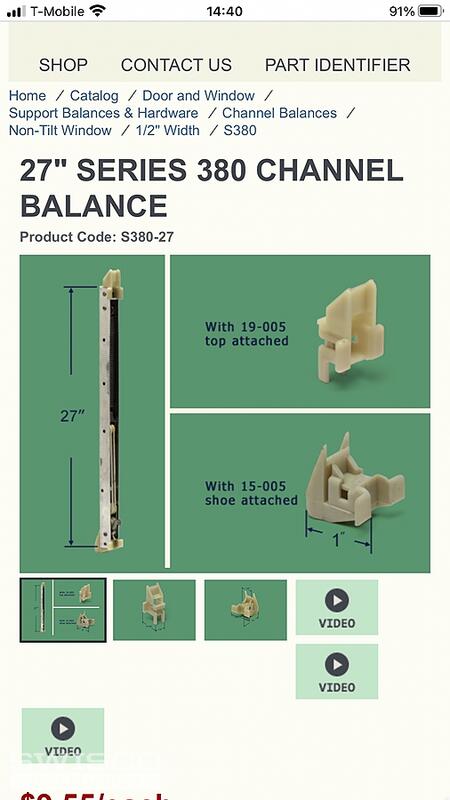

Hi Bob, Thanks for quick response. Quick question to check:I was browsing your content on YouTube and looking though the specs on your website,it looks like the 27?Series 380 Channel Balance(SKU#S380-27-2640)and 5/8"Top Sash Guide(SKU#18-188)may be a fit judging by the measurement alone, so I wanted to see if it may work.I know you mentioned some nuances where a custom part may be abetter fit , but just wanted to see if this is a situation where the standard parts are not as ideal as the custom part but could nonetheless work-or it will not fit at all. Thank you!

5 user uploaded images

Home Owner from California 92880

May 24, 2021 6:01 pm

Hi Bob, Thanks for quick response. Quick question to check:I was browsing your content on YouTube and looking though the specs on your website,it looks like 1/2"wide Series 380 Channel Balance(#S380-27)and 5/8"Top Sash Guide(#18-188)may be a fit judging by the measurement alone, so I wanted to see if it may work.I know you mentioned some nuances where a custom part may be abetter fit , but just wanted to see if this is a situation where the standard parts are not as ideal as the custom part but could nonetheless work-or it will not fit at all. Thank you!

2 user uploaded images

Bob from SWISCO

May 25, 2021 8:22 am

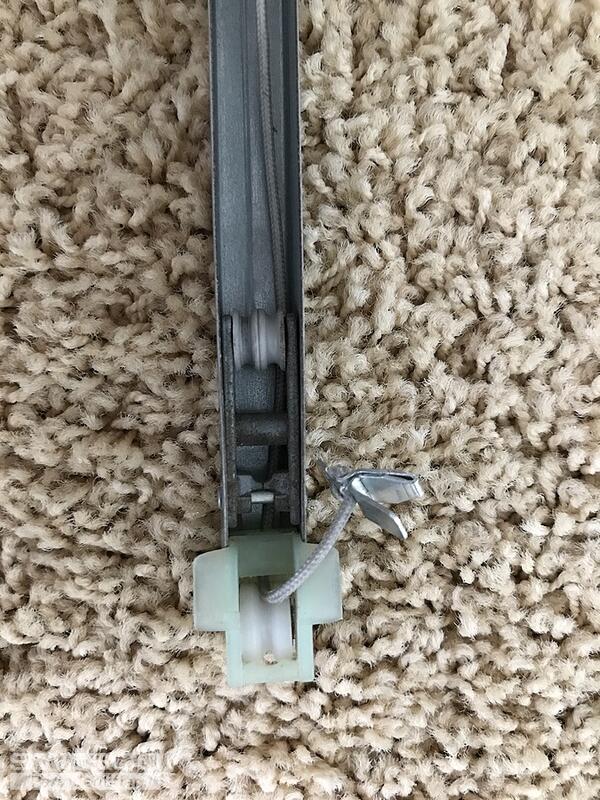

A fair question. The Series 380 or any other standard Series balance are unfortunately not compatible with your old hardware. The length of the metal channel is different (yours is 26-5/8", rather than an even length), and you'll note the balance shoe has the pulley system built into it--your old balance had this system in the 'guts' of the metal channel. For all these reasons I am afraid you need custom-made balances with this unique travel length. Let me know if you have further questions.

For the Top Sash Guide, see our 18-009, 18-166, or 18-188. We don't have your exact one, but one of these might work depending on the dimensions.
