Channel balance series needed.

Quick Learner from Jacksonville, FL, United States

Hello, replacing my window balances and not sure which ones mine are.

Non tilt, 1"2" wide valances.  I need ones that are 25" tall and that are 30" tall (measured end of metal to end of metal).

One has a marking of:  "24-9 IA2 CMC 6" on it.

Also going to need replacement top dash guides, but I believe I have identified those as "5/8 top sash guide, Kinco 18-166" from your site.

Also, what is your return policy in the event I order the wrong parts?

Thanks!

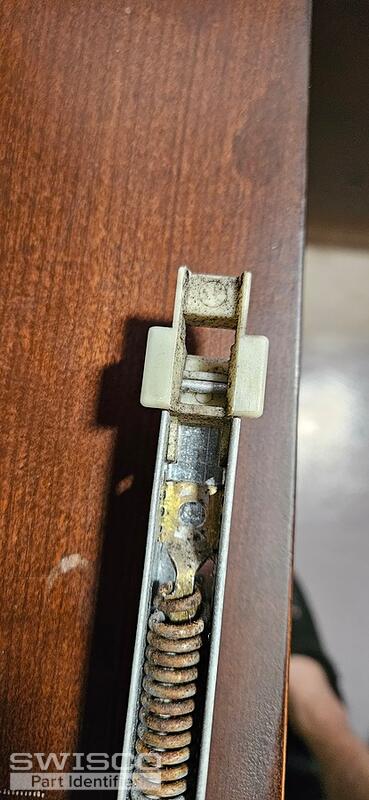

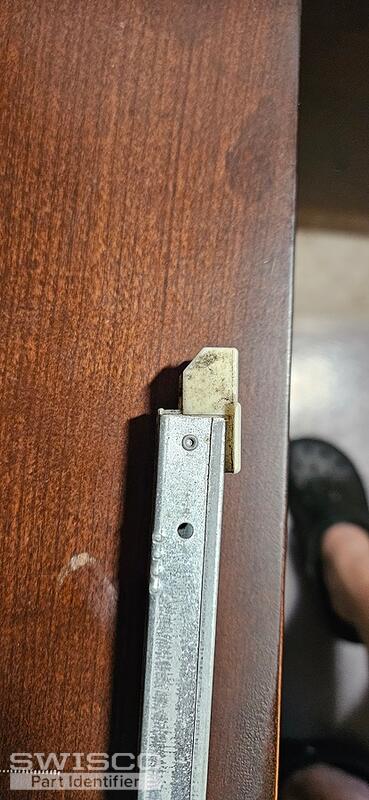

5 user uploaded images
3 Replies
Quick Learner from Jacksonville, FL, United States
Good morning.  I was just checking on the status of this request and to see if you needed any additional measurments or photos.
Emily
Emily from SWISCO
SWISCO
Expert

Hi there!

Thank you for reaching out to us. Your balance appears to be a match for the S380-25 or S385-25, depending on the depth of the bottom fitting. You will also need to weigh the window sash on a scale to determine the correct stamp option. There's a chart under the S380-25 and S385-25 product descriptions that you can use as a reference for which option to select based on the weight of the window sash.

Our return policy can also be found here

Please let us know if you have any questions!

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
